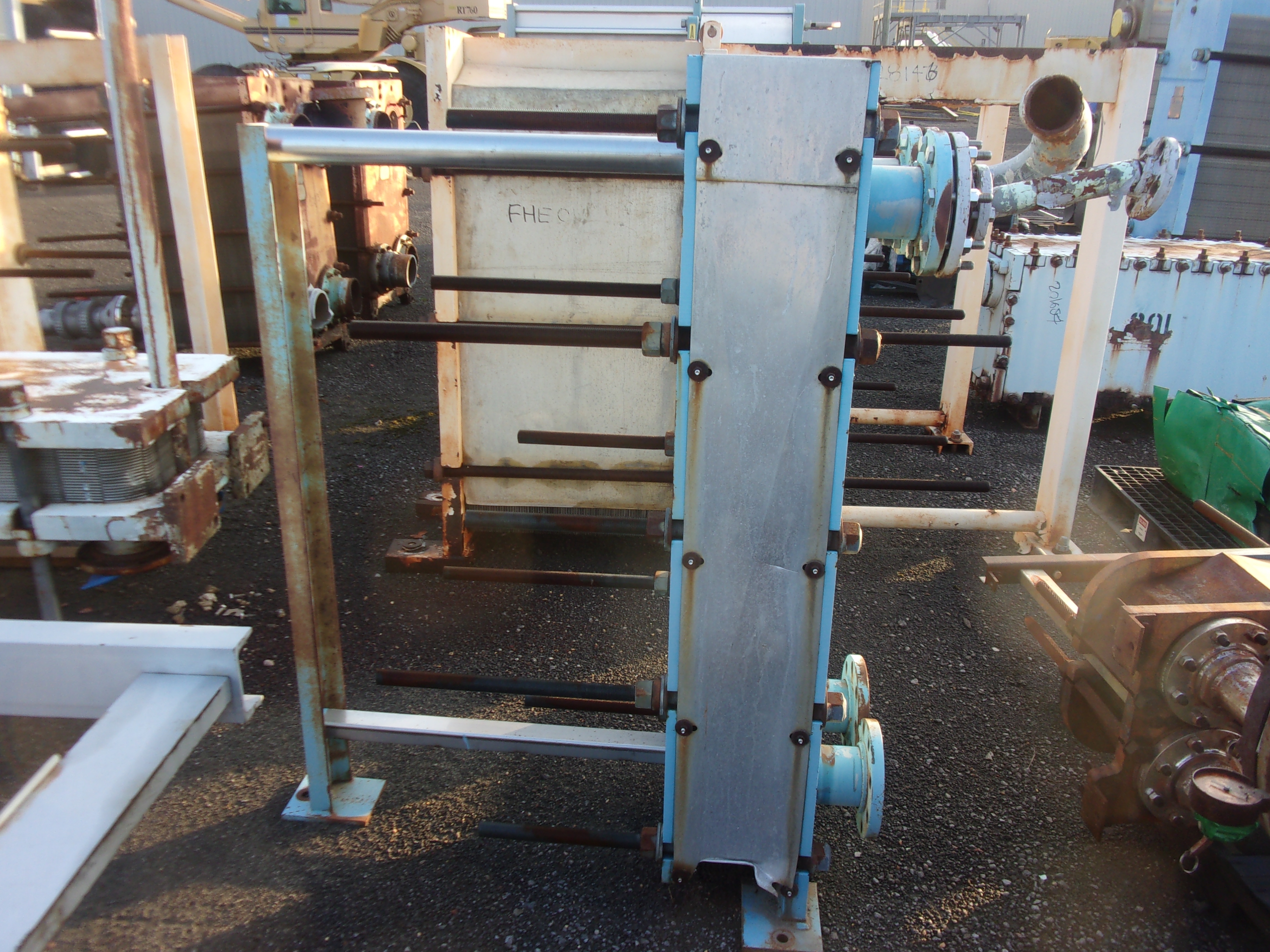

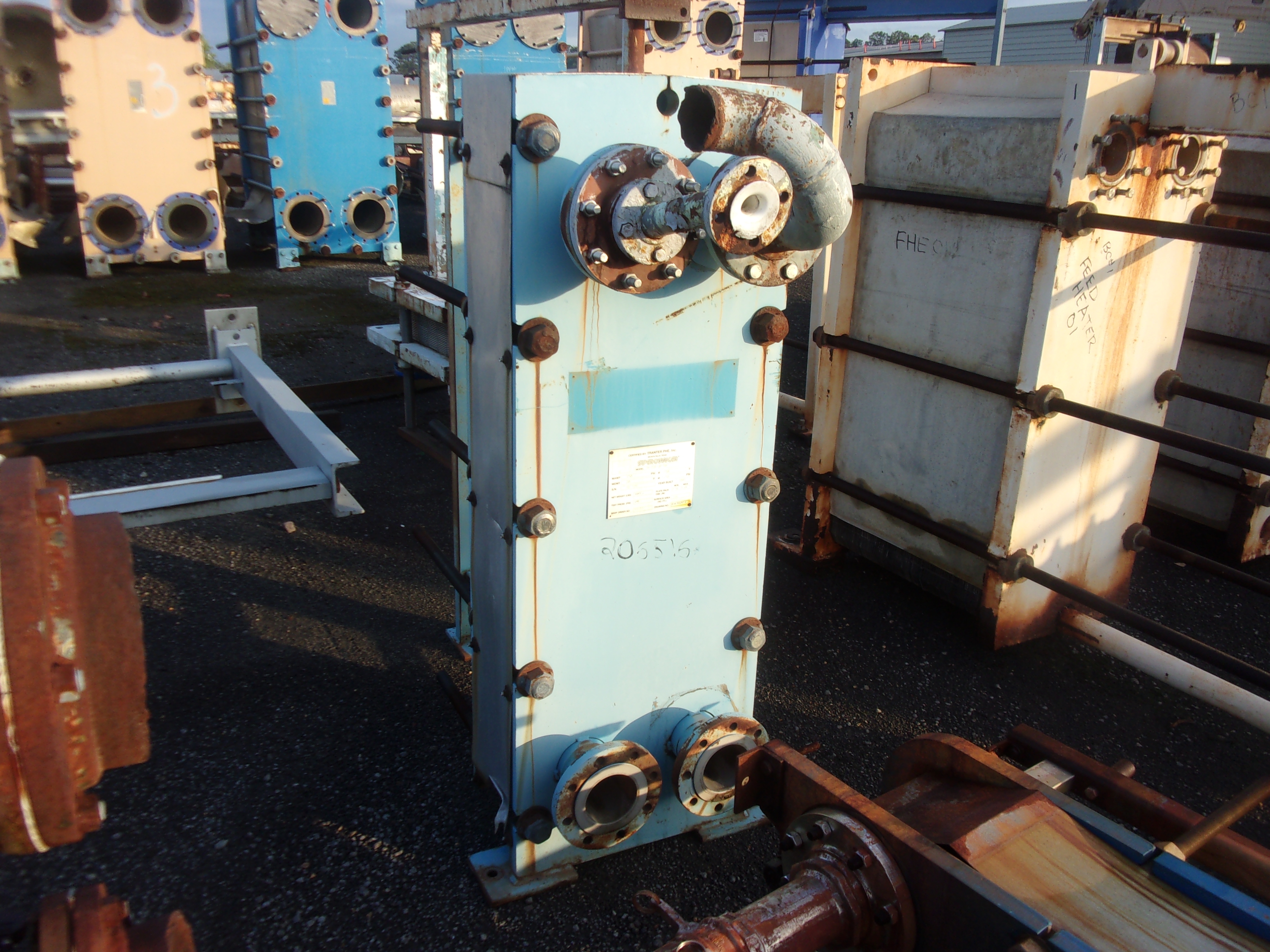

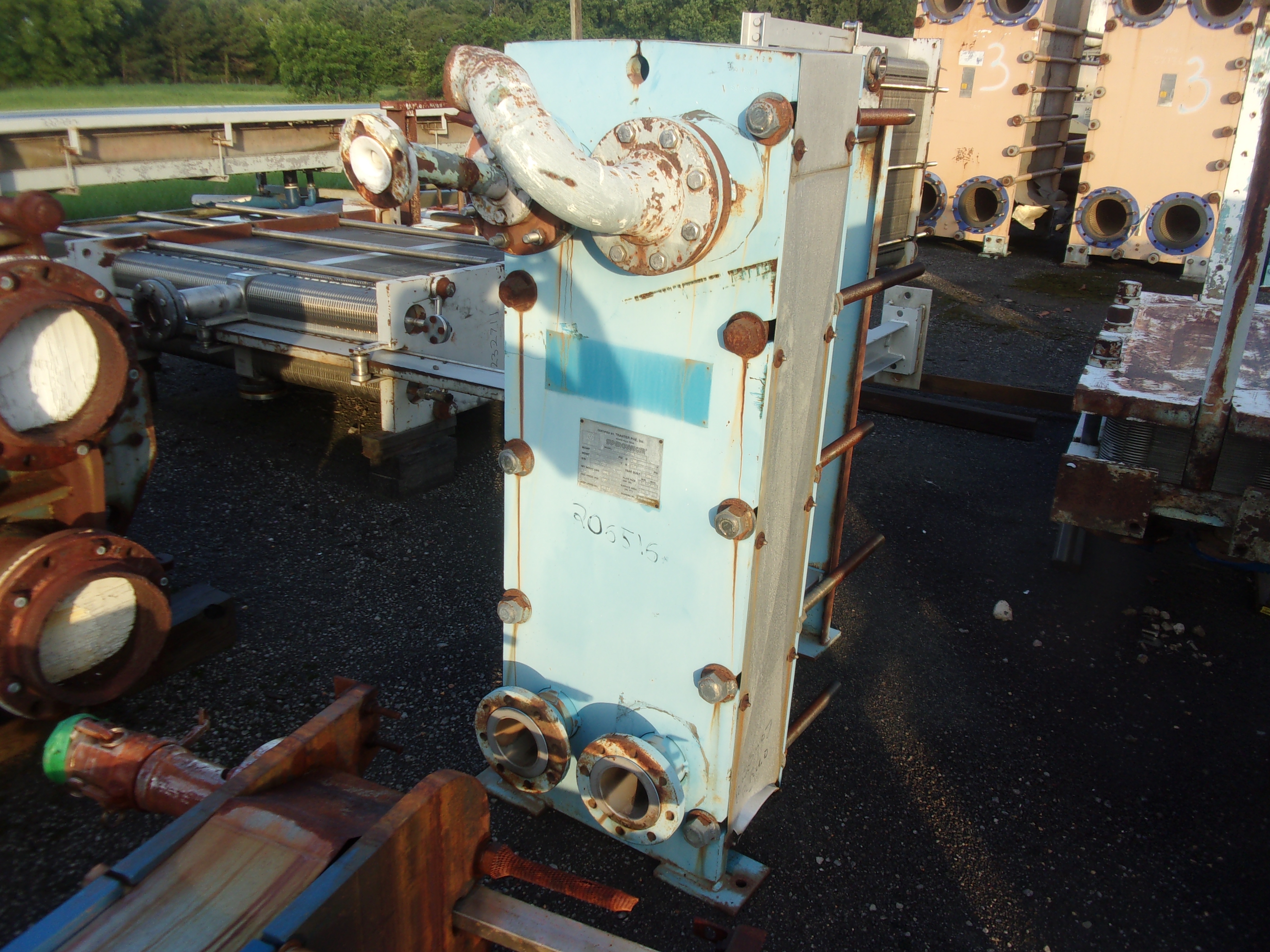

Plate and Frame Heat Exchanger - IPP# 248550

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: GEA Ahlborn GmbH Co KG/Germany

Model: N40

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 47.5 m² (512 ft²)

Cold-side Pressure: 12 bar (174 psi)

design BC-12 0.45 squaremeter heat exchange surface per plate, (plate package min 851mm, max 870mm), plate package is 868mm 321 (1.4541) stainless steel frame

Cold-side Temperature: 115 °C (239 °F). Hot-side Pressure: 12 bar (174 psi). Hot-side Temperature: 115 °C (239 °F). Housing Material: Stainless Steel 321. Number of Plates: 105.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Tranter

Model: GC-30NI*28

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 2.2 m² (23.8 ft²)

Nozzle Schedule: - Openings: 4-50mm

pressure side 1= -1/6 bar @ 170 deg C (2.9ltr) side 2= -1/6 bar @ 170 deg C (3.1ltr) test pressure both sides 10 bar c/steel frame

Housing Material: Carbon Steel. Number of Plates: 28.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Tranter

Model: GC-30NI*28

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 2.2 m² (23.8 ft²)

Nozzle Schedule: - Openings: 4-50mm

pressure side 1= -1/6 bar @ 170 deg C (2.9ltr) side 2= -1/6 bar @ 170 deg C (3.1ltr) test pressure both sides 10 bar c/steel frame

Housing Material: Carbon Steel. Number of Plates: 28.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Tranter

Model: GC-30N1-18

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 1.36 m² (14.6 ft²)

Nozzle Schedule: - Openings: 4-50mm

pressure side 1= -1/6 bar @ 170 deg C (1.8ltr) side 2= -1/6 bar @ 170 deg C (2ltr) test pressure both sides 10 bar c/steel frame

Housing Material: Carbon Steel. Number of Plates: 18.
