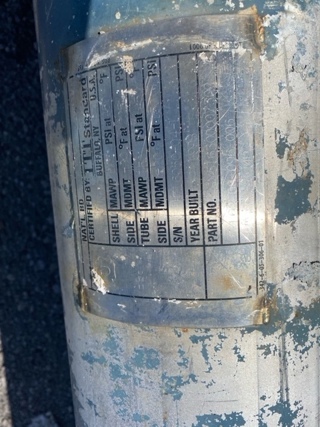

Shell is rated for MAWP, 225 psi at 450 degrees F. Shell MDMT is -20 degrees F. at 225 psi. Tubes are rated for MAWP 150 psi at 450 degrees F Tubes MDMT is rated for -20 degrees F. at 150 psi Shell side inlet and outlet are 3" threaded. Tube side inlet and outlet are 2" threaded.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: ITT Standard
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 3.2 m² (34 ft²)
Orientation: Horizontal
Cast Iron heads Part #: 5-162-06-036-046 Four pass' ,
Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: MISC. Length: 1,000 mm (40 in). Tube Number: 116. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 0.51 mm (0.02 in). Nozzle Schedule: - Nozzles: 2" on shell and heads.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: ITT Standard
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 3.2 m² (34 ft²)
Orientation: Horizontal
Heads: Cast iron Part #: 5-162-06-036-046 Four pass'
Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: MISC. Length: 1,000 mm (40 in). Shell-side Passes: 4. Tube Number: 116. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 0.51 mm (0.02 in). Nozzle Schedule: - Nozzles: 2" on shell and heads.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: ITT Standard
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 2.6 m² (28 ft²)
Orientation: Horizontal
Heads: Cast Iron Part #: 5-162-06-036-046 Two pass'
Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: MISC. Length: 914 mm (36 in). Tube Type: Straight Tube. Tube Number: 116. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 0.51 mm (0.02 in). Nozzle Schedule: - Nozzles: 2" on shell and heads..
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: ITT Standard
Model: SSCF-C4P
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 15.4 m² (166 ft²)
Orientation: Horizontal
Rated 150 psi @ -20 to 450 degrees F tube side, 225 psi @ -20 to 450 degrees F shell side.
Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Shell Diameter: 203.2 mm (8 in). Head Material: Stainless Steel 316. Length: 2,750 mm (108 in). Tube Type: U-Tube. Tube Number: 210. Tube Diameter: 9.4 mm (0.37 in). Nozzle Schedule: Inlet and outlet are 2" threaded. Shell side nozzles are 3" threaded..
