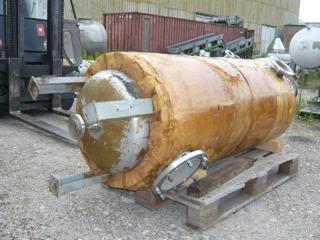

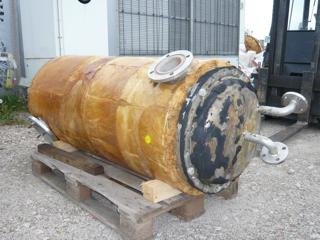

1.4435 s/steel rated -1/6 bar @ -3 to 200 degrees C, 160 liter internal 7.5 bar @ -30 to 200 degrees C, 25 liter in the internal spiral coil. one bolted dished head & one welded dished head with 4 SqM internal coil 25mm diameter.
Type: Heat Exchanger
Subtype: Spiral
Manufacturer: Kuhni
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 10 m² (107.6 ft²)
Shell Pressure: 2 bar (29 psi)

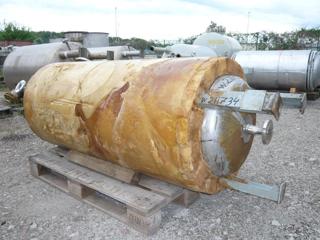

1.4435 s/steel spiral heat exchanger 7.5 bar @ 200 dgress Cin the internal spiral Internal coil: 10 Sqm, 40mm diameter x 2 banks Internal spiral: 7.5 bar @ 200 degrees C
Shell Temperature: 200 °C (392 °F). Vacuum: Yes. Shell Diameter: 700 mm (27.6 in). Length: 1,212 mm (47.7 in). Nozzle Schedule: Openings: Shell side (2) 80mm, (2) 100 mm; Coil side (2) 40mm.. Cold-side Pressure: 2 bar (29 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 7.5 bar (108.8 psi). Hot-side Temperature: 200 °C (392 °F).
Type: Heat Exchanger
Subtype: Spiral
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 16 m² (172.2 ft²)
Spiral Material: Stainless Steel Other

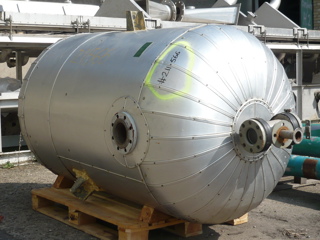

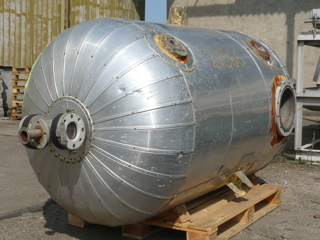

condensor shell is approximately 1.3m3 with welded dished top and bottom
Type: Heat Exchanger
Subtype: Spiral
Manufacturer: Sulzer
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 2.5 m² (26.9 ft²)
Shell Pressure: 3 bar (43.5 psi)

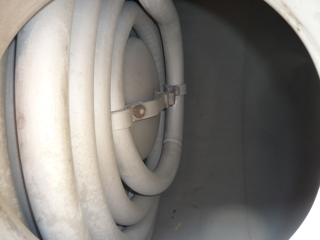

Coil rating: 3 bar @ 200 degrees C Coil diameter: 25mm OD Shell top: bolted dished Shell bottom: dished
Shell Temperature: 200 °C (392 °F). Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Length: 1,200 mm (47.2 in). Nozzle Schedule: Shell openings: (2) 40mm, (2) 100mm - Coil openings: (2) 25mm. Cold-side Pressure: 3 bar (43.5 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 3 bar (43.5 psi). Hot-side Temperature: 200 °C (392 °F). Spiral Material: Stainless Steel Other.

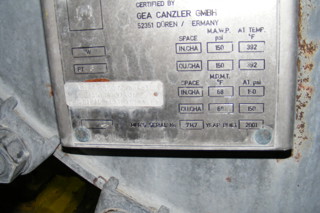

Type: Heat Exchanger
Subtype: Spiral

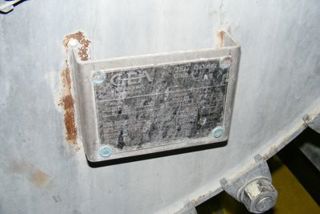

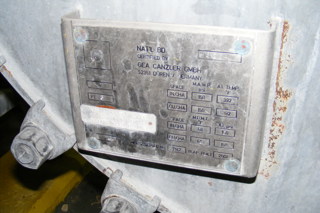

Manufacturer: GEA
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 24 m² (258 ft²)
Shell Pressure: 10.3 bar (150 psi)
Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel Other. Head Material: Stainless Steel Other. Nozzle Schedule: Openings; (2) 2.5" process side; (2) 2.5" shell side.. Spiral Material: Stainless Steel Other.
