Stainless Steel Other Sulzer Spiral Heat Exchanger - IPP# 211734

Type: Heat Exchanger

Subtype: Spiral

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 16 m² (172 ft²)

Spiral Material: Stainless Steel Other

• Condensor shell is approximately 1.3 m3 with welded dished top and bottom

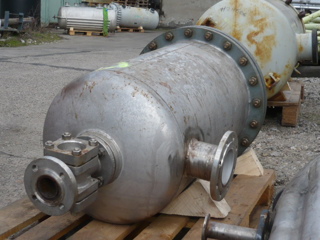

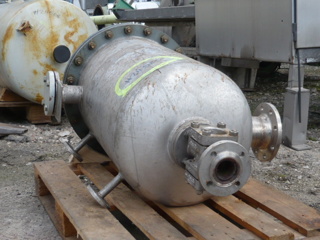

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Zurcher AG

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 4 m² (43.1 ft²)

Shell Pressure: 0.414 bar (6 psi)

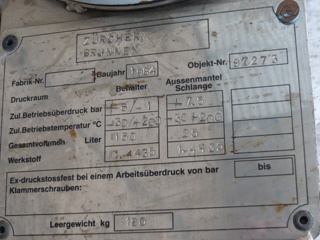

1.4435 s/steel
rated -1/6 bar @ -3 to 200 degrees C, 160 liter internal
7.5 bar @ -30 to 200 degrees C, 25 liter in the internal spiral coil.

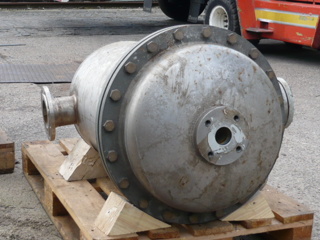

one bolted dished head
& one welded dished head
with 4 SqM internal coil 25mm diameter.

Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Length: 545 mm (21.5 in). Nozzle Schedule: Openings: Shell side (2) 50mm, (2) 100 mm; Coil side (2) 25mm.. Cold-side Pressure: 6 bar (87 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 7.5 bar (109 psi). Hot-side Temperature: 200 °C (392 °F). Spiral Material: Stainless Steel Other.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: GEA

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 24 m² (258 ft²)

Shell Pressure: 10.3 bar (150 psi)

Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel Other. Head Material: Stainless Steel Other. Nozzle Schedule: Openings; (2) 2.5" process side; (2) 2.5" shell side.. Spiral Material: Stainless Steel Other.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 4 m² (43.1 ft²)

Shell Pressure: 6 bar (87 psi)

Spiral vertical heat exchanger
pressure tube side -1/6 bar @ 60 degrees C (20 liter)
shell -1/6 bar @ 60 degrees C (800 liter)

Shell Temperature: 60 °C (140 °F). Vacuum: Yes. Cold-side Temperature: 60 °C (140 °F). Hot-side Pressure: 6 bar (87 psi). Hot-side Temperature: 60 °C (140 °F).
