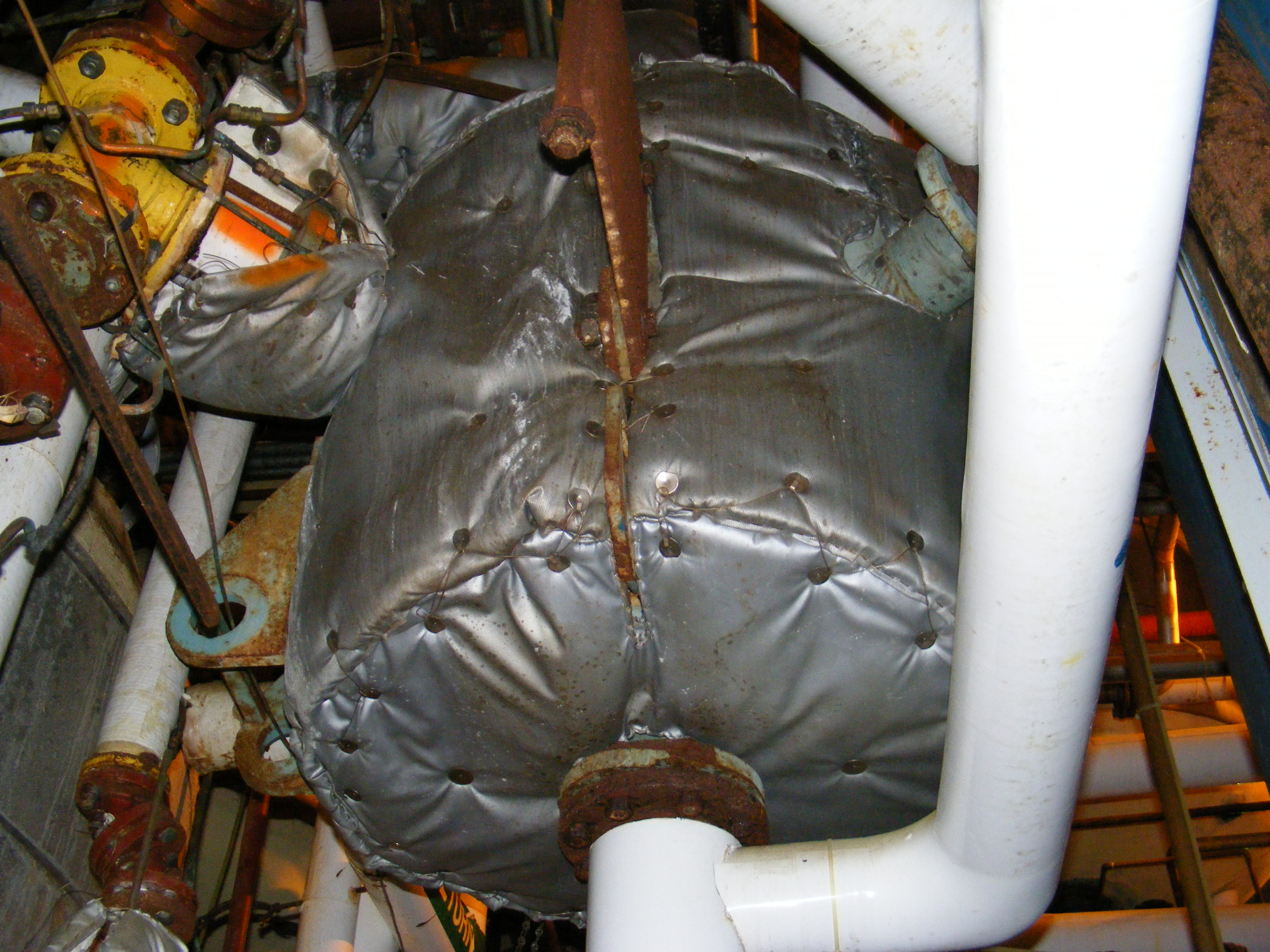

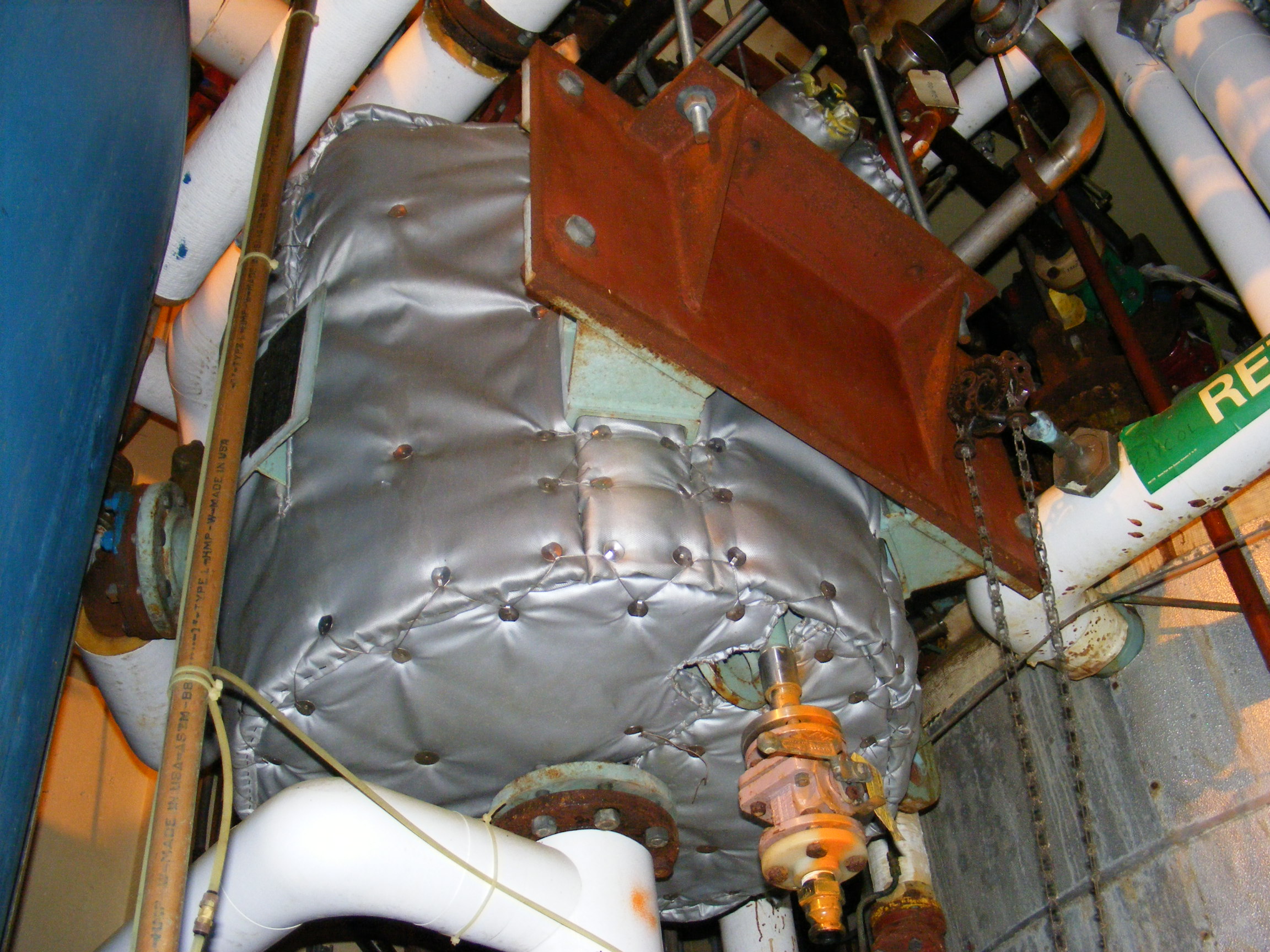

Spiral Heat Exchanger 17.7 m² (190 ft²) Hastelloy - Other For Sale - IPP# 213352

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alpha Laval

Model: 3-6

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Heat Transfer Surface Area: 83.6 m² (900 ft²)

Shell Pressure: 2.6 bar (37 psi)

2-stage (2) 450 Sq Ft condensers bolted together, end to end, with same configuration and material in both stages, Upper stage and lower stage each have a 316LSS shell, CS heads. Shell is 0.135" thick, Heads are 1.12" thick CS.

Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316L. Shell Diameter: 1,200 mm (47 in). Head Material: Carbon Steel. Length: 1,250 mm (50 in). Nozzle Schedule: Openings include: (2) 4" shell side in each stage; (2) 4" service side.. Cold-side Pressure: 2.6 bar (37 psi). Cold-side Temperature: 232.2 °C (450 °F). Hot-side Pressure: 2.6 bar (37 psi). Hot-side Temperature: 232.2 °C (450 °F). Spiral Material: Stainless Steel 316.
