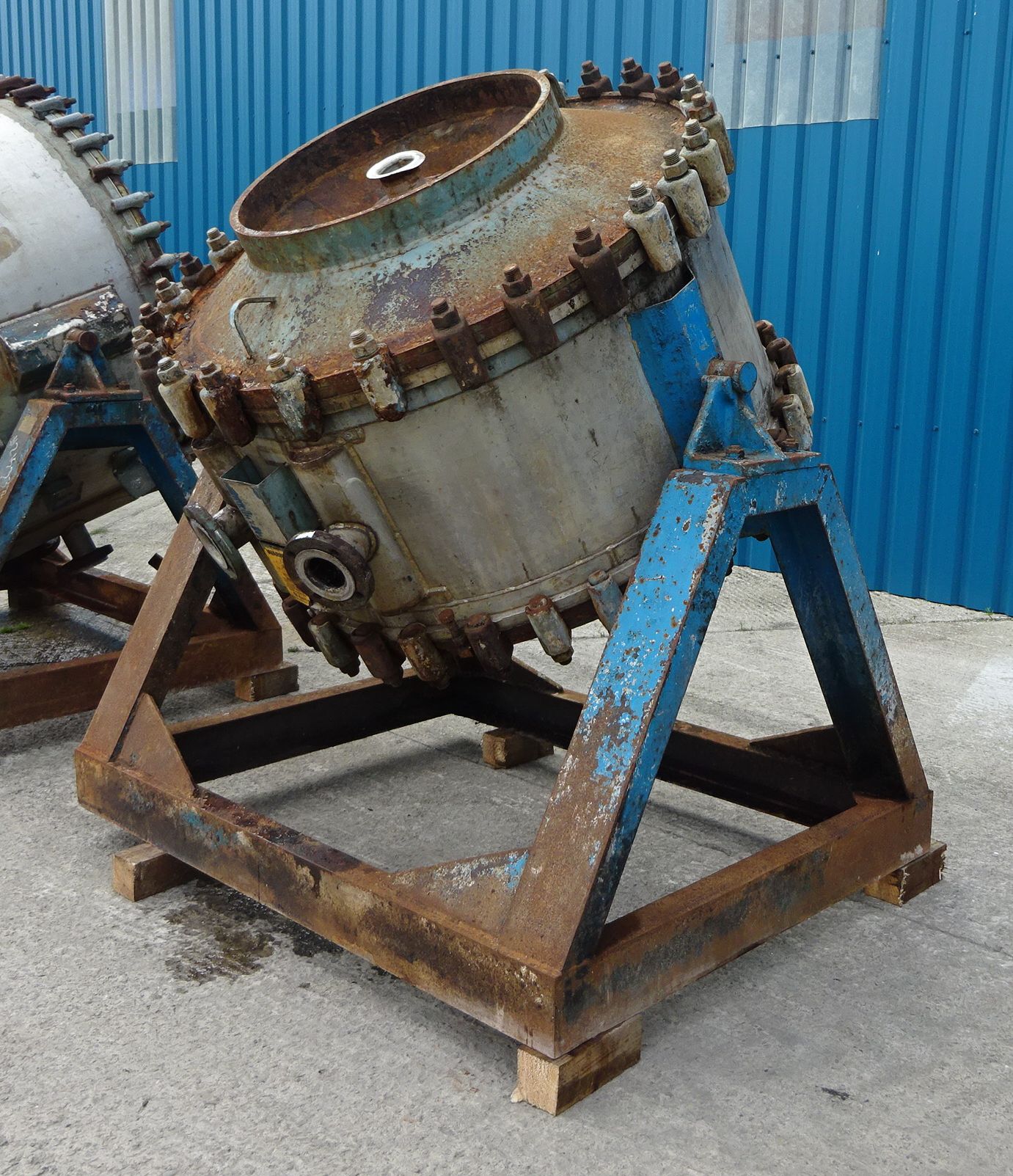

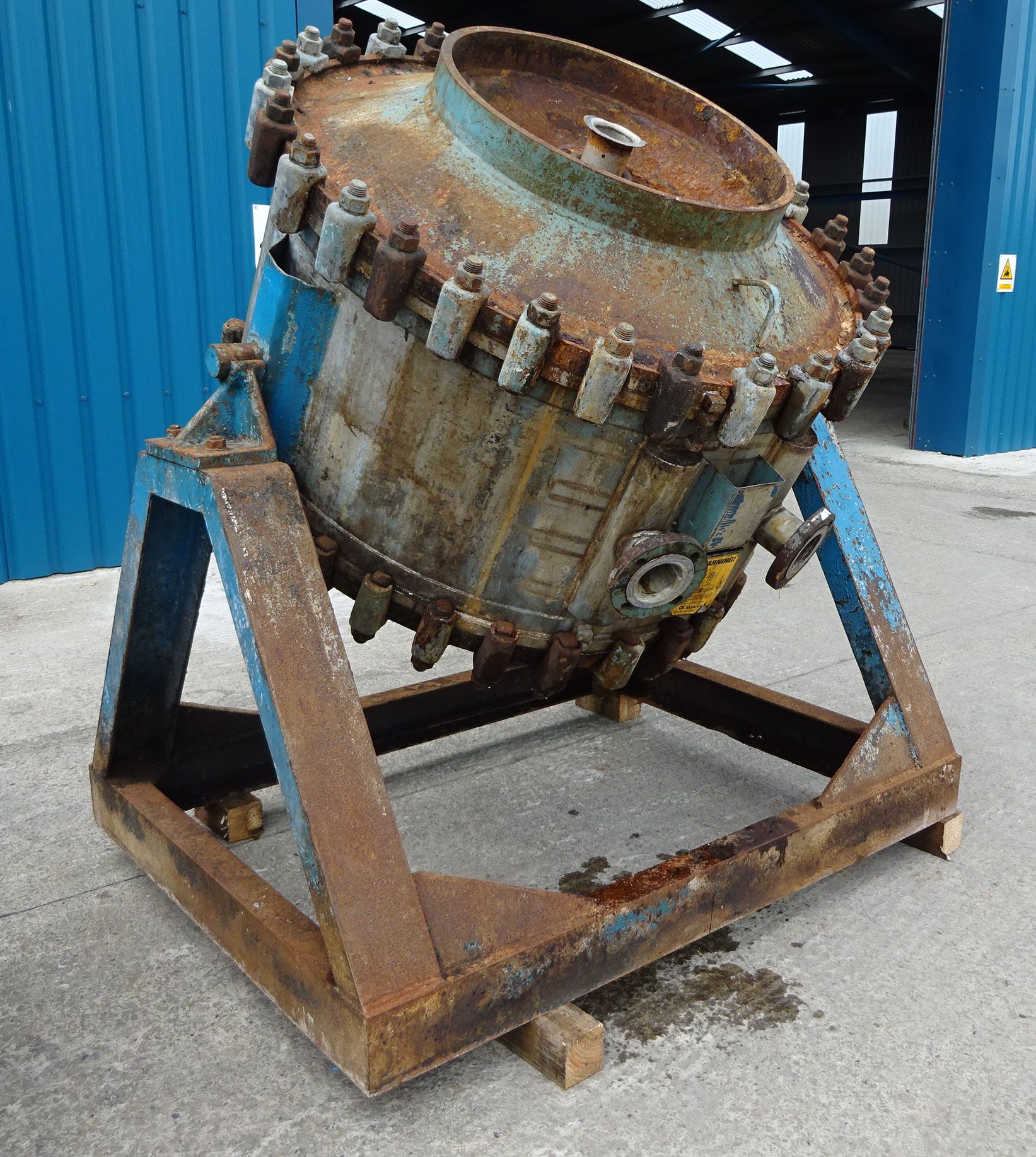

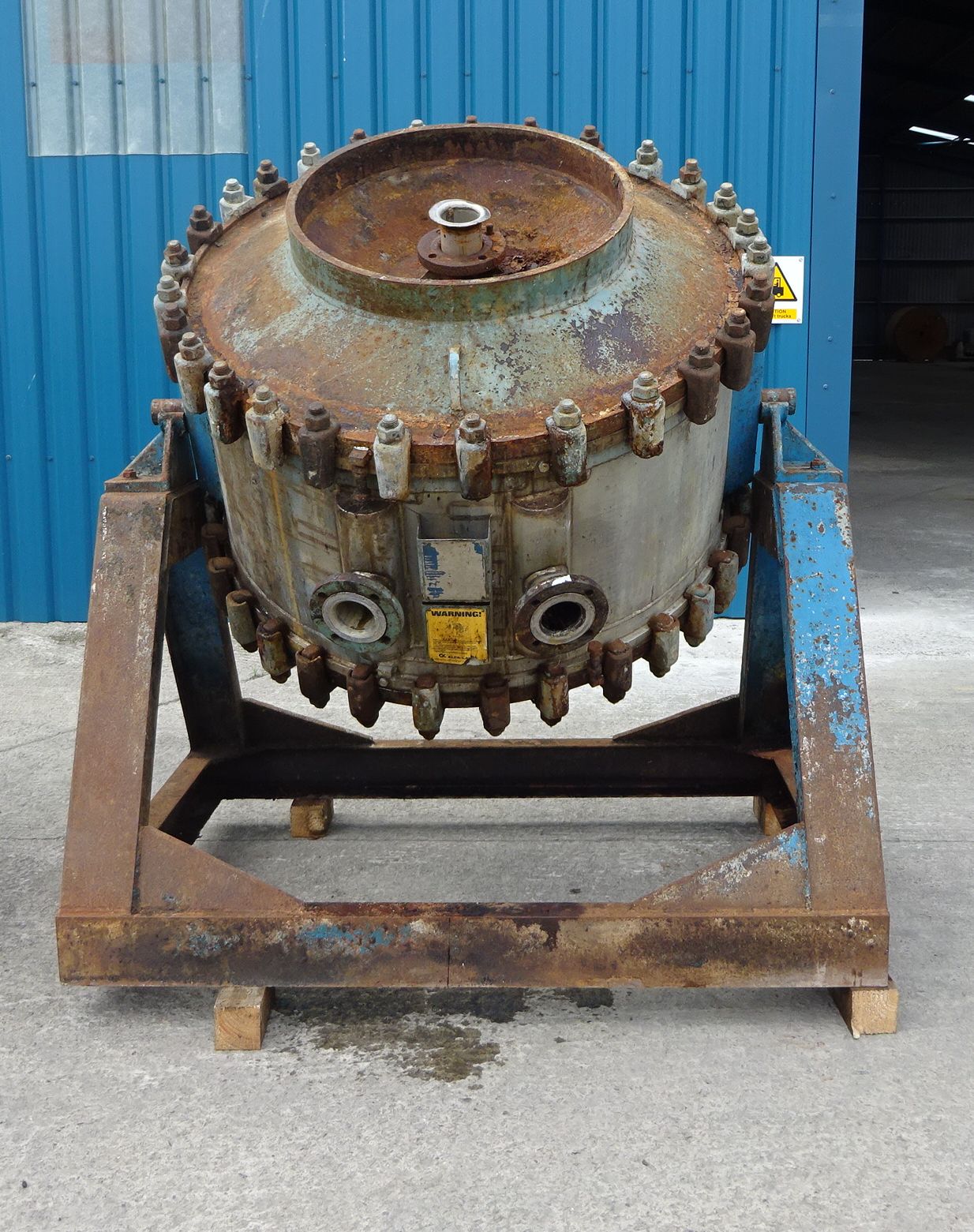

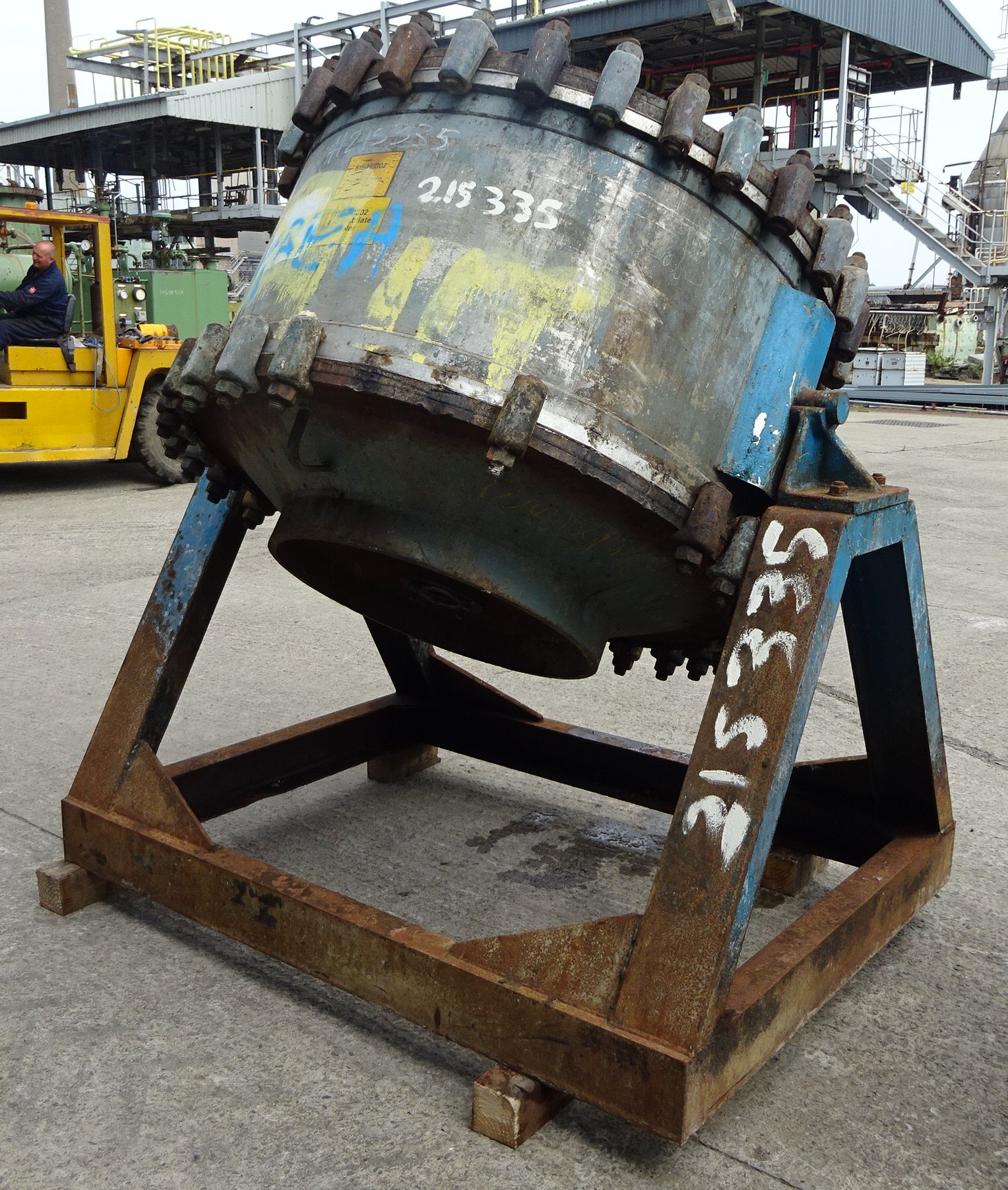

Spiral Heat Exchanger 62.6 m² (674 ft²) Stainless Steel 316L For Sale - IPP# 215335

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: 1-V

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 99 m² (1,050 ft²)

Shell Pressure: 5.2 bar (75 psi)

type SHE spacing channel A = 8, B = 9, volume: channel A = 450 ltr, B= 500 ltr

Shell Material: Carbon Steel. Shell Diameter: 1,400 mm (54.3 in). Length: 750 mm (29.5 in). Nozzle Schedule: openings: top: 1-80mm, side: 2-80mm, bottom: 1-80mm,. Cold-side Pressure: 5.2 bar (75 psi). Cold-side Temperature: 250 °C (482 °F). Hot-side Pressure: 5.2 bar (75 psi). Hot-side Temperature: 250 °C (482 °F). Spiral Material: Stainless Steel 316.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 4 m² (43.1 ft²)

Shell Pressure: 4 bar (58 psi)

(2) 300mm high cone sections,

Shell Material: Stainless Steel 316L. Head Material: Stainless Steel 316L. Length: 300 mm (11.8 in). Nozzle Schedule: openings: 2-200mm, 3-50mm, 1-15mm,. Cold-side Pressure: 1 bar (14.5 psi). Spiral Material: Stainless Steel 316L.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: SHE IV

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 2.8 m² (30.1 ft²)

Shell Pressure: 8 bar (116 psi)

• pressure side A: -1/6 barg @ -29/185 degrees C,
• side B: -1/8 barg @ -29/185 degrees C,
• spacing side A: 6 (23 liter), side B: 6 (17 liter)
• design code: ASME VIII DIV 1 Edition 1992,

Shell Temperature: 185 °C (365 °F). Shell Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 455 mm (17.9 in). Head Material: Stainless Steel 316L. Length: 250 mm (9.8 in). Nozzle Schedule: side A: 1-100mm, 1-75mm, side B: 3-50mm. Cold-side Pressure: 6 bar (87 psi). Cold-side Temperature: 185 °C (365 °F). Hot-side Pressure: 8 bar (116 psi). Hot-side Temperature: 185 °C (365 °F). Spiral Material: Stainless Steel 316L.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: IIIV

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 14 m² (150.7 ft²)

Shell Pressure: 8 bar (116 psi)

• design pressure side A: -1/6 barg @ 185 degrees C,
• side B: 8 barg @ 185 degrees C,
• spacing side A 12 (170 liter),
• side B 5 (105 liter),
• clamped flat top and bottom heads,
• design code: ASME VIII DIV 1 ED 92

Shell Temperature: 185 °C (365 °F). Shell Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 520 mm (20.5 in). Head Material: Stainless Steel 316L. Length: 1,250 mm (49.2 in). Nozzle Schedule: side A: 1-200mm, 1-100mm, 1-50mm, side B: 2-75mm. Cold-side Pressure: 6 bar (87 psi). Cold-side Temperature: 185 °C (365 °F). Hot-side Pressure: 8 bar (116 psi). Hot-side Temperature: 185 °C (365 °F). Spiral Material: Stainless Steel 316L.
