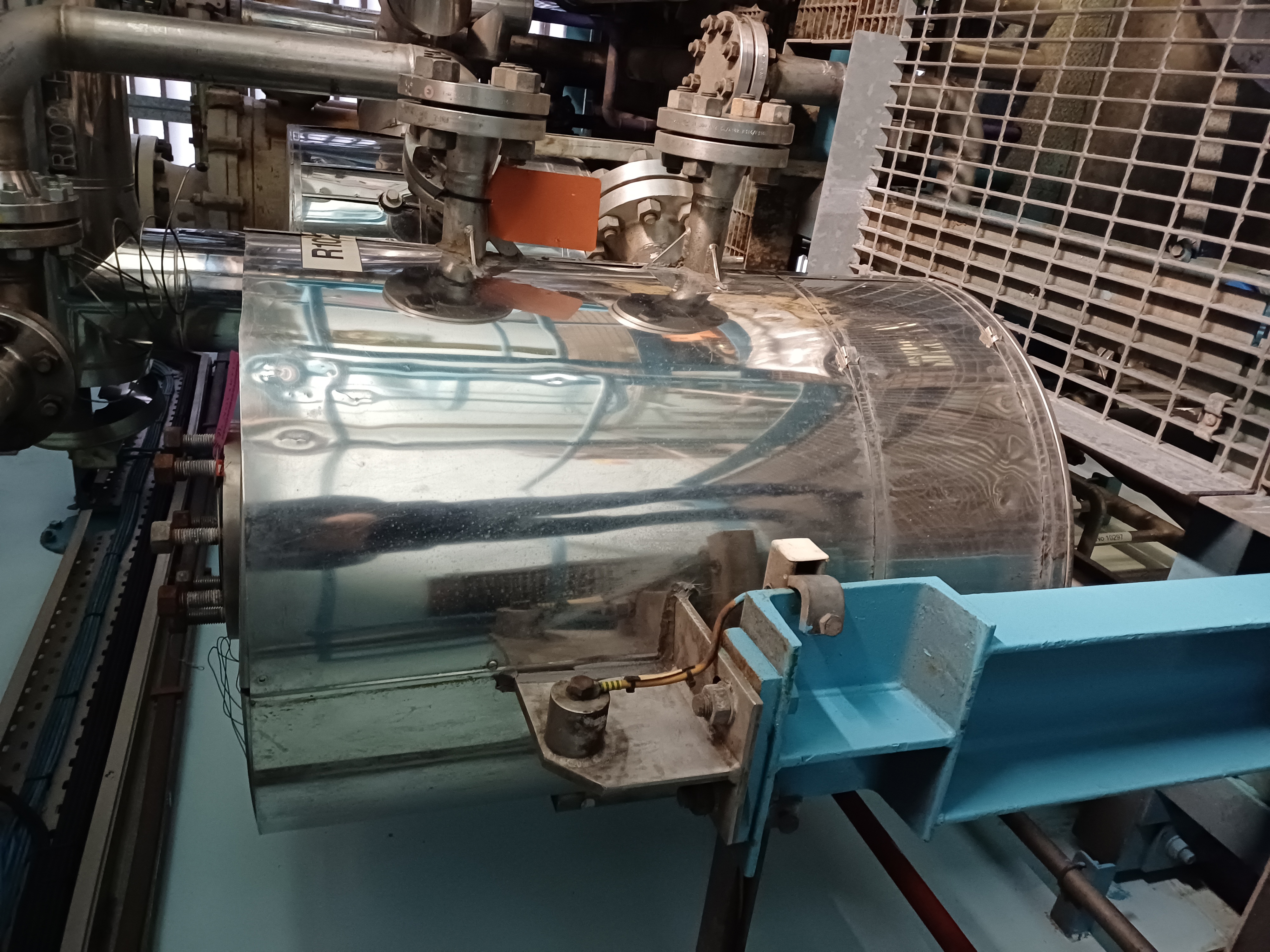

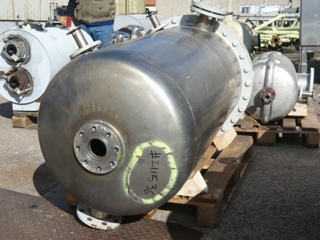

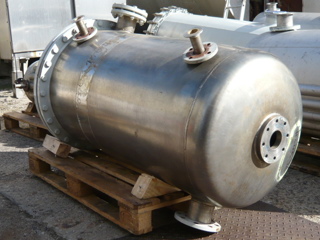

Stainless Steel 316L Kuhni Spiral Coil Tube Heat Exchanger - IPP# 242612

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 3.9 m² (42 ft²)

Shell Pressure: 1 bar (14.5 psi)

• coil heat exchanger,
• design pressure coil side: -1/10 barg @ -29/180 degrees C,
• shell: -1/10 barg @ -29/180 degrees C
• 316L stainless steel spiral tube coil inside a 316L stainless steel tank,
• design code: AD Merkblatter

Shell Temperature: 1 °C (33.8 °F). Shell Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 444 mm (17.5 in). Head Material: Stainless Steel 316L. Length: 1,400 mm (54.1 in). Nozzle Schedule: side A: 2-25mm, side B: 2-40mm. Cold-side Pressure: 10 bar (145 psi). Cold-side Temperature: 180 °C (356 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 180 °C (356 °F). Spiral Material: Stainless Steel 316L.

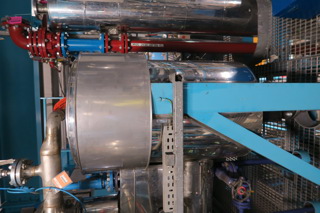

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 2.3 m² (24.8 ft²)

Shell Pressure: 6 bar (87 psi)

• design pressure side A: -1/3.2 barg @ -29/200 degrees C (106 liter),
• side B: -1/6 barg @ -29/200 degrees C (12 liter)
• 316L stainless steel tubular coil inside a vertical tank,

Shell Temperature: 2 °C (35.6 °F). Shell Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 450 mm (17.7 in). Head Material: Stainless Steel 316L. Nozzle Schedule: coil tube side: 2-25mm, shell side 1-80mm, 1-50mm. Cold-side Pressure: 3.2 bar (46.4 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 6 bar (87 psi). Hot-side Temperature: 200 °C (392 °F). Spiral Material: Stainless Steel 316L.

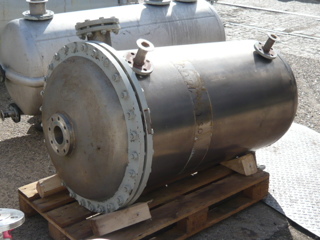

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 10 m² (107.6 ft²)

Shell Pressure: 2 bar (29 psi)

1.4435 s/steel spiral heat exchanger 7.5 bar @ 200 dgress Cin the internal spiral Internal coil: 10 Sqm, 40mm diameter x 2 banks Internal spiral: 7.5 bar @ 200 degrees C

Shell Temperature: 200 °C (392 °F). Vacuum: Yes. Shell Diameter: 700 mm (27.6 in). Length: 1,200 mm (47.7 in). Nozzle Schedule: Openings: Shell side (2) 80mm, (2) 100 mm; Coil side (2) 40mm.. Cold-side Pressure: 2 bar (29 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 7.5 bar (108.8 psi). Hot-side Temperature: 200 °C (392 °F).

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Kuhni

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 4 m² (43.1 ft²)

Shell Pressure: 6 bar (87 psi)

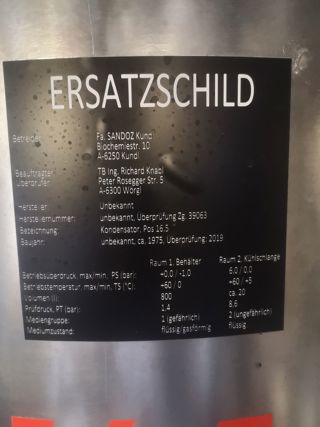

Spiral vertical heat exchanger pressure tube side -1/6 bar @ 60 degrees C (20 liter) shell -1/6 bar @ 60 degrees C (800 liter)

Shell Temperature: 60 °C (140 °F). Vacuum: Yes. Cold-side Temperature: 60 °C (140 °F). Hot-side Pressure: 6 bar (87 psi). Hot-side Temperature: 60 °C (140 °F).
