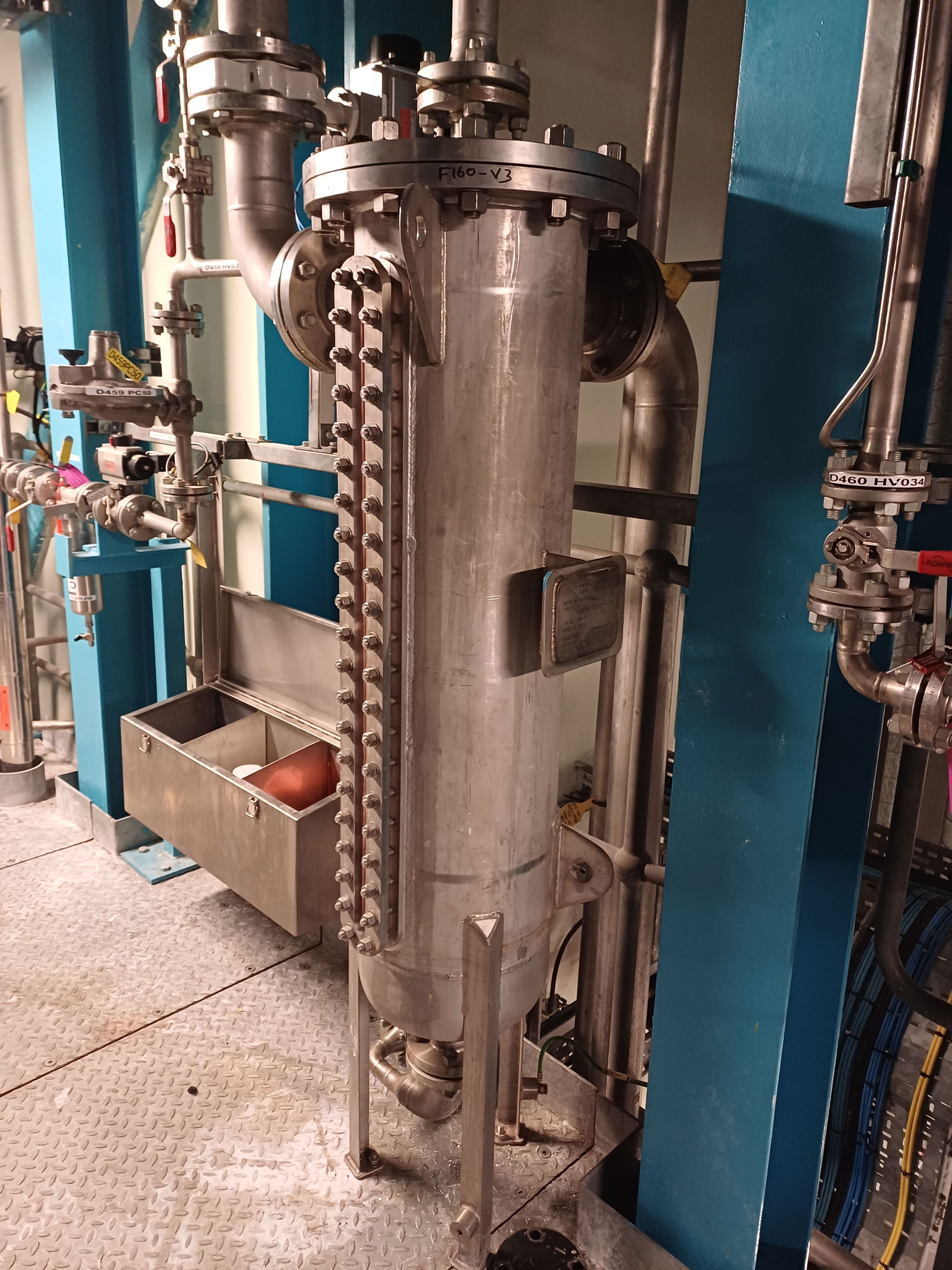

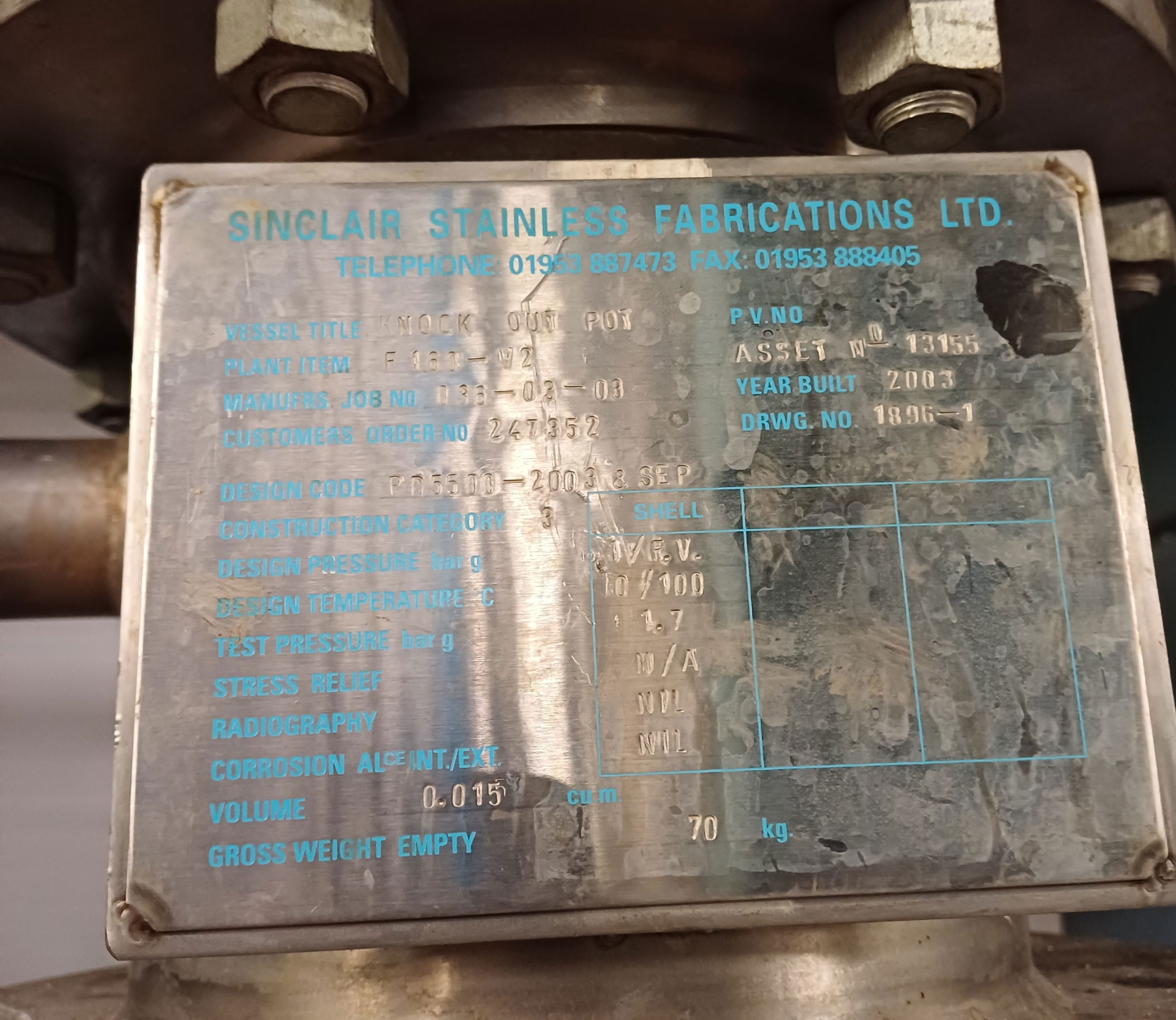

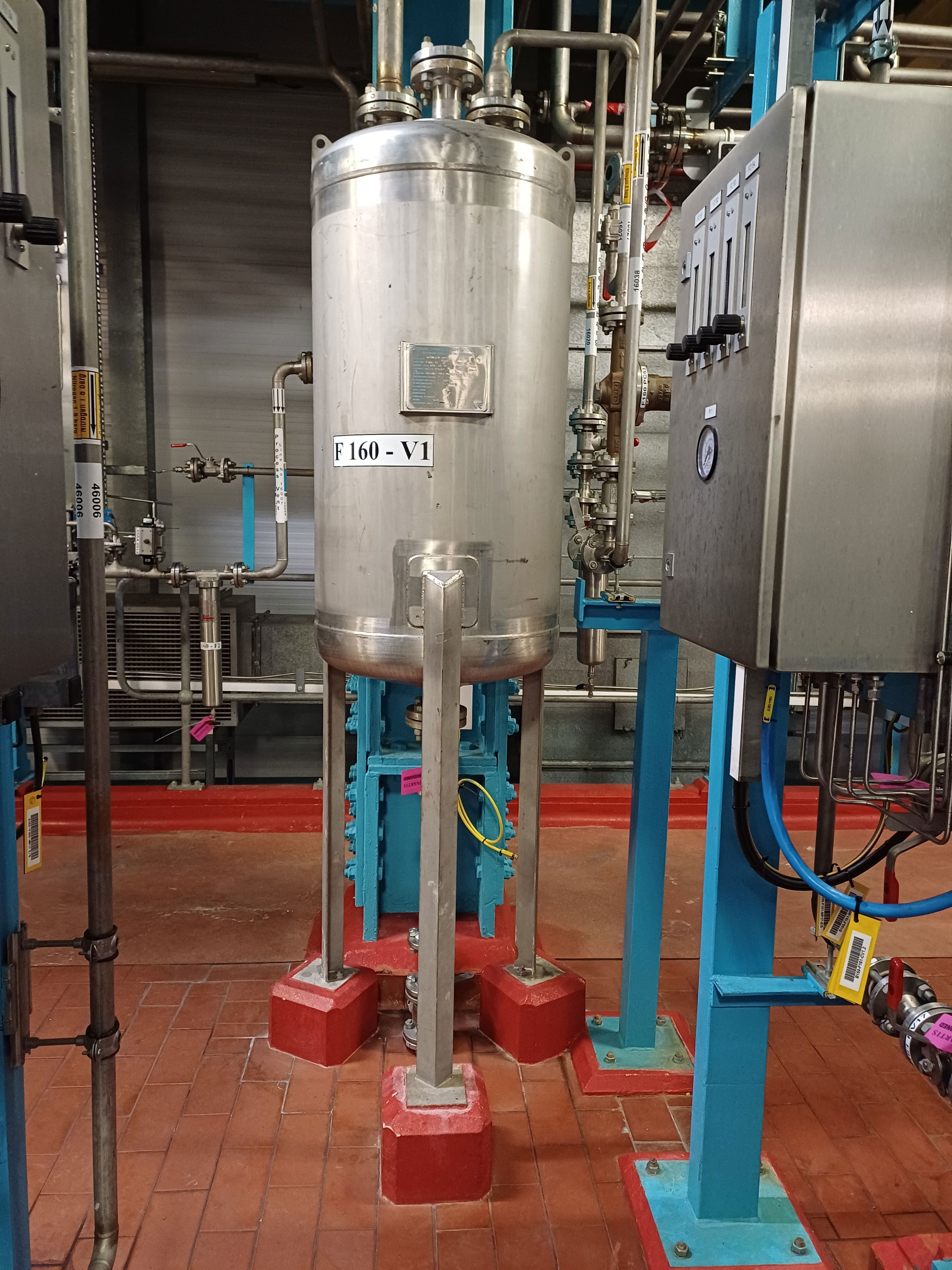

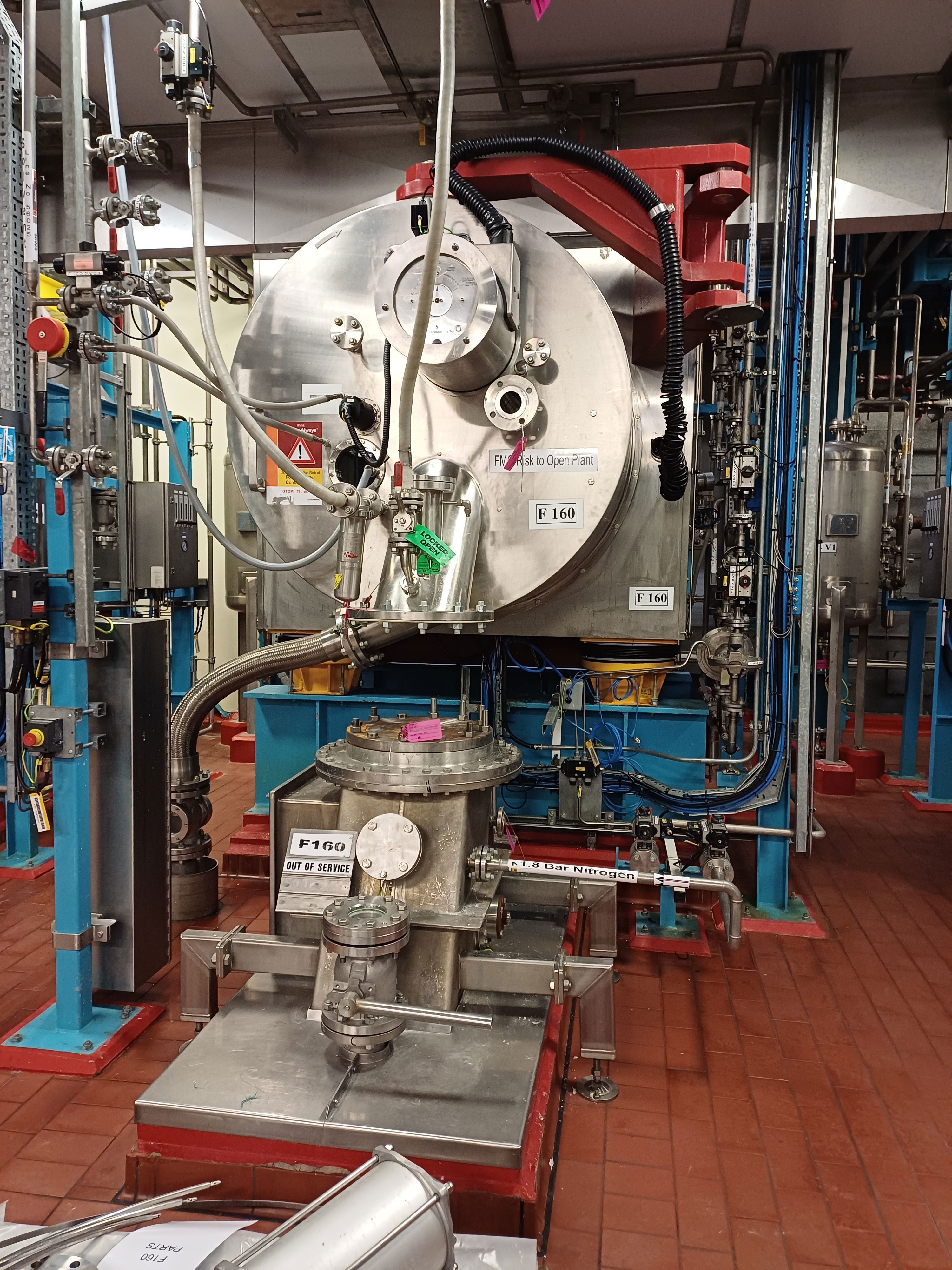

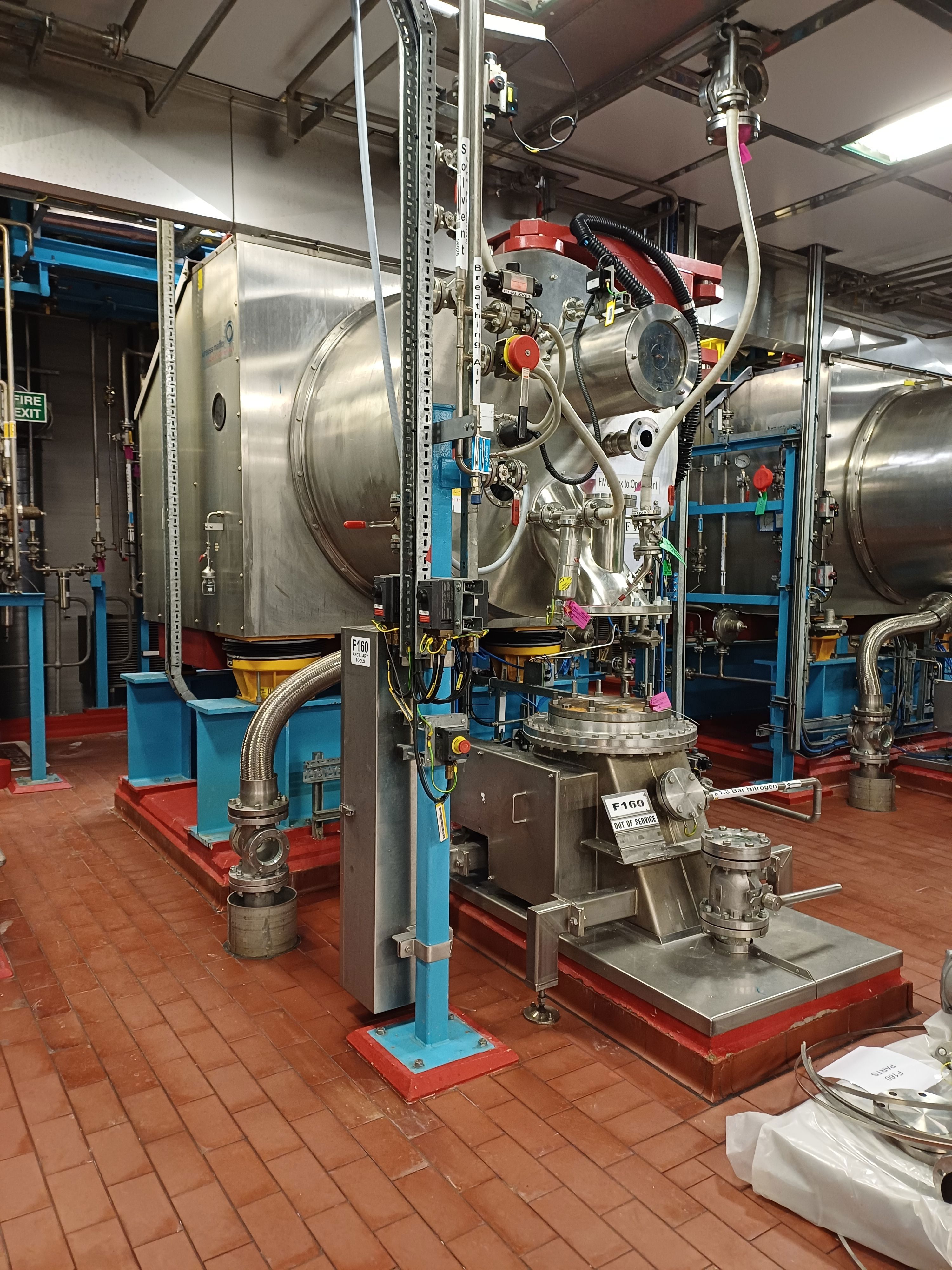

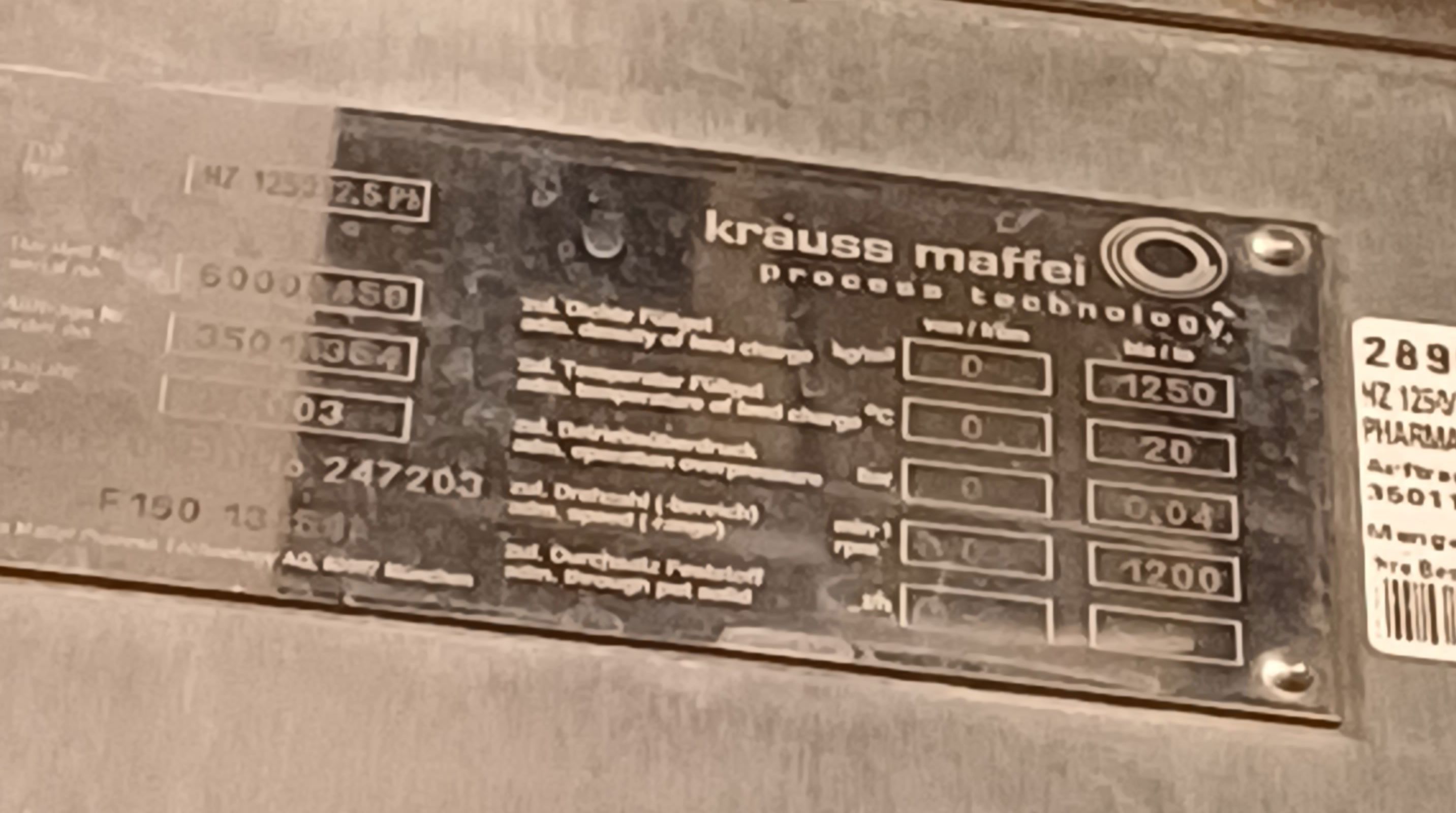

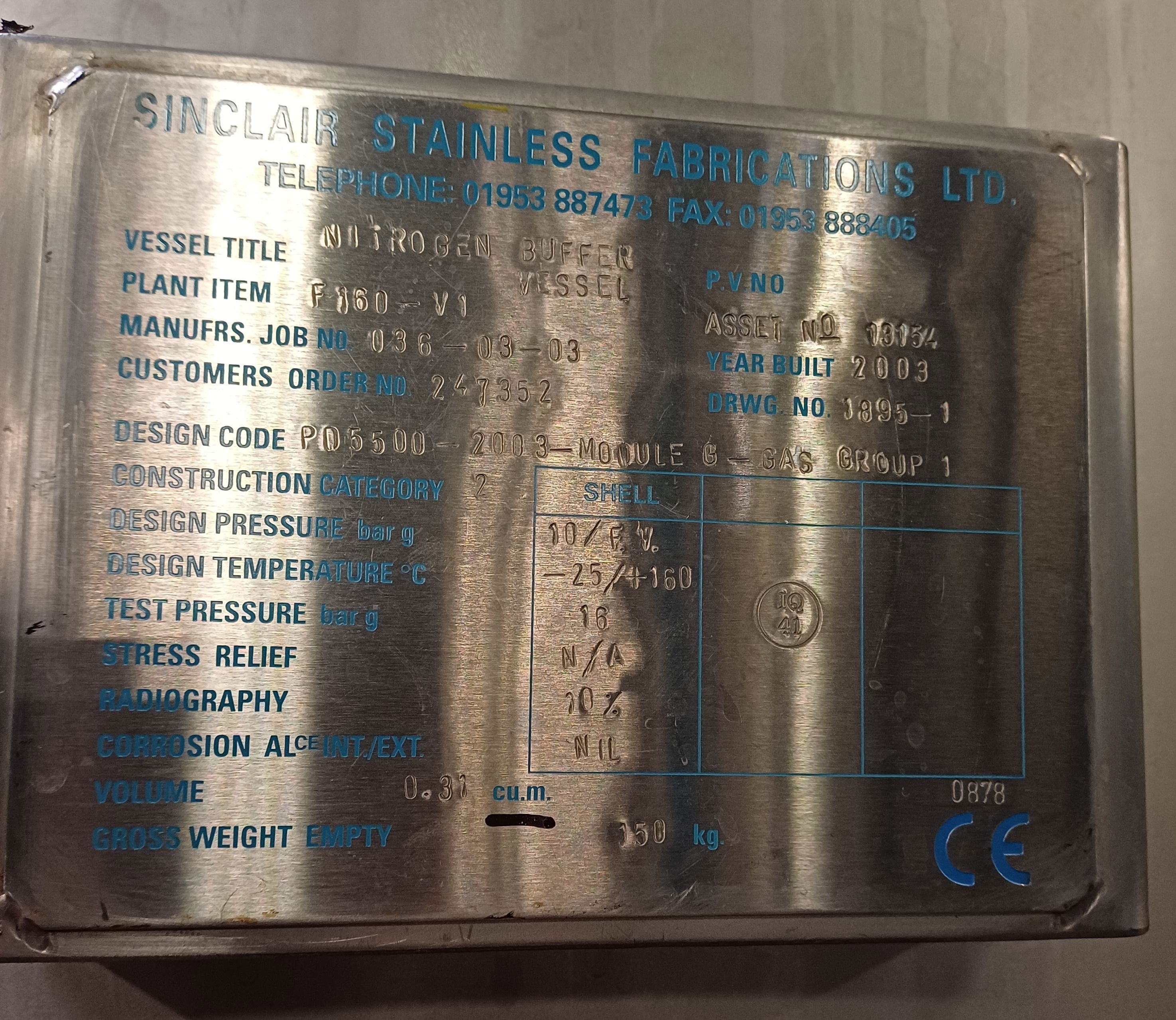

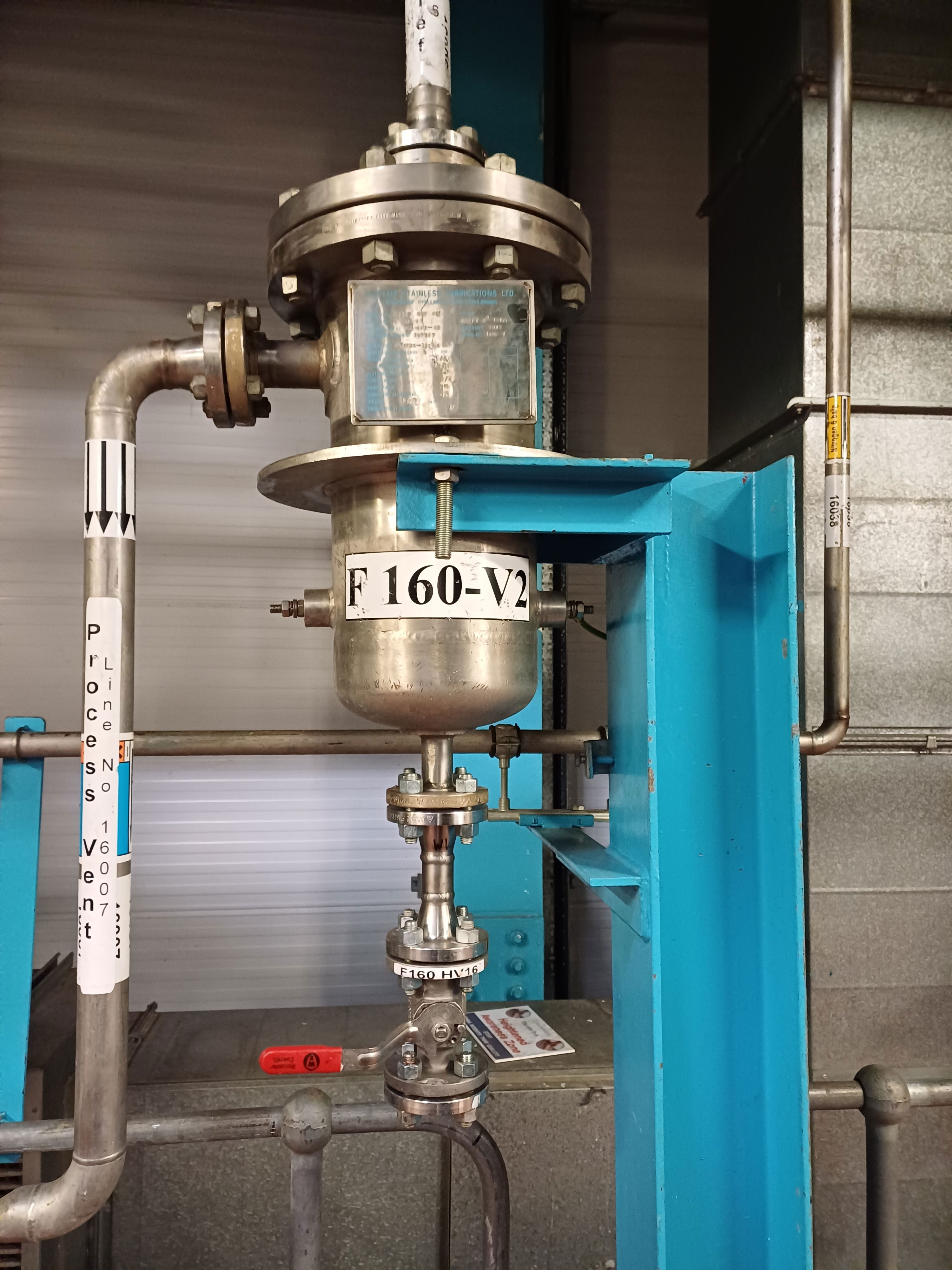

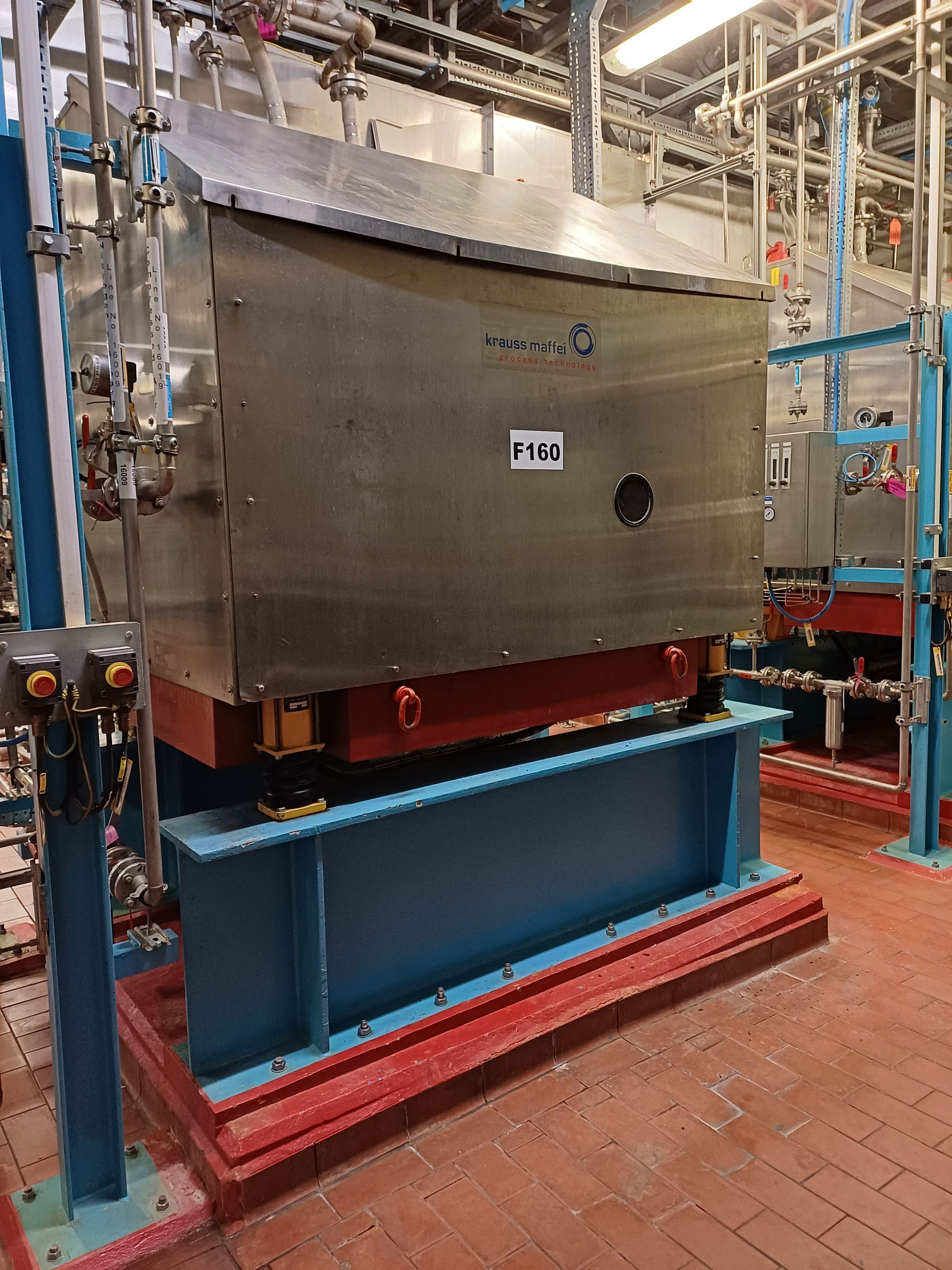

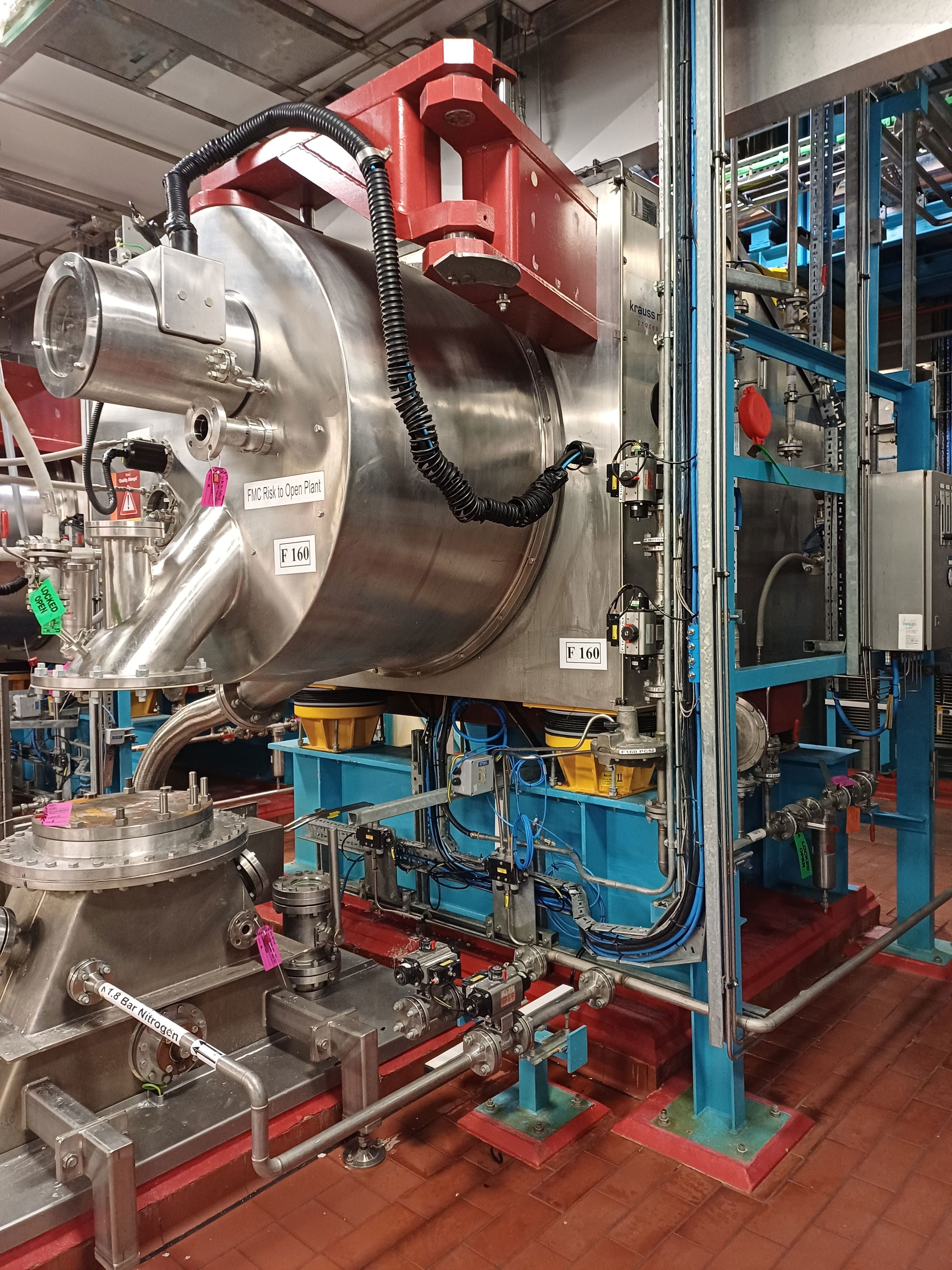

EX II 2G IIB T4 X 20 bar pressure 1200 rpm operating speed hinged front cover cake discharge via a pivoting peeling device equiped with a broad peeler knife cake level gauge centrifuge on anti-vibration rubber mountings system includes: (1) 300 liter 316L stainless steel vertical pressure tank (nitrogen), manufactured by Sinclair Stainless Fabrications Ltd, CE, manufacturers #036-03-03, asset #13154, design pressure 10 bar + full vacuum @ -25/160 degrees C (310 liter), weld dished top and bottom, 600mm diameter x 1m straight side, openings top: 3-50mm, bottom: 1-50mm, mounted on legs, design code: PD5500 2003 MODULE G GAS GROUP 1, CAT 2 (1) 15 liter (total) 316L stainless steel vertical pressure tank (knock out), manufactured by Sinclair Stainless Fabrications Ltd, manufacturers #036-03-03, asset #13155, design pressure 1 barg + full vacuum @ 0/100 degrees C, bolt flat top, weld dished bottom, 220mm outside diameter x 437mm straight side, openings top: 1-40mm, straight side: 1-40mm, bottom: 1-25mm, mounting ring, design code: PD5500 2003 & SEP CAT 3
Type: Centrifuge-Peeler
Manufacturer: Krauss Maffei
Model: HZ-100/2VK
Condition: Used
Material: Stainless Steel 316
Basket Diameter: 1,000 mm (39.4 in)
Basket Depth: 630 mm (24.8 in)
auftr # 300341/2 20mm basket thickness 125mm cake thickness 150mm filtrate outlet 75mm feed pipe (feed cone 1n basket) 2-50mm diameter adjustable pipes (suck or blow cake off) hinged front door with 2-150mm sightglasses
Motor Power: 37 kW (49.6 HP). Speed-RPM Maximum: 1,640. Load Weight: 216 kg (476.2 lb).
Type: Centrifuge-Peeler
Manufacturer: Krauss Maffei
Model: HZ-80/VK
Condition: Used
Material: Stainless Steel 316
Basket Diameter: 800 mm (31.5 in)
Basket Depth: 380 mm (15 in)
auftr # 300272/2 100mm cake thickness 300mm x 100mm filtrate opening 30mm feed pipe (feed cone in basket) 2-50mm diameter adjustable pipes (suck or blow cake off) hinged front door with 2-75mm sightglasses
Filtration Area: 0.03 m² (0.32 ft²). Motor Power: 30 kW (40.2 HP). Speed-RPM Maximum: 1,980. Load Weight: 88 kg (194 lb).
Type: Centrifuge-Peeler
Manufacturer: Krauss Maffei
Model: HZ63
Condition: Used
Material: Stainless Steel 316
Basket Diameter: 630 mm (24.8 in)
Basket Depth: 300 mm (11.8 in)
rubber lined peeler centrifuge, plow feed, rubber lined chamber/front door, Basket driven by hydraulic motor, Driven by via hydraulic powerpak, Type FIV55ELGR, Serial #107421 Openings: 40mm feed pipe, 1-25mm wash pipe, 300mm x 115mm filtrate, 270mm x 100mm discharge, 1-50mm vapour.
Motor Power: 22 kW (29.5 HP). Speed-RPM Maximum: 2,400. Load Weight: 50 kg (110.2 lb).
Type: Centrifuge-Peeler
Manufacturer: Krauss Maffei
Model: HZ900
Condition: Refurbished/Rebuilt
Material: Stainless Steel 316
Basket Diameter: 900 mm (35.4 in)
Basket Depth: 329 mm (13 in)
Single motion knife discharge Cake thickness 126mm Solids outlet 177mm x 126mm filtrate 126mm; feed 50mm; wash 2-19mm with (14) spray holes each; vapour 75mm; sight glass 1-100mm. carbon steel outer shell with 316 stainless steel internal lining. (*)
Motor Power: 11 kW (14.8 HP). Speed-RPM Maximum: 950. Load Weight: 150 kg (330.7 lb).
