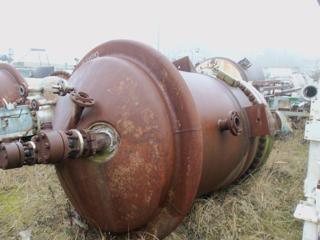

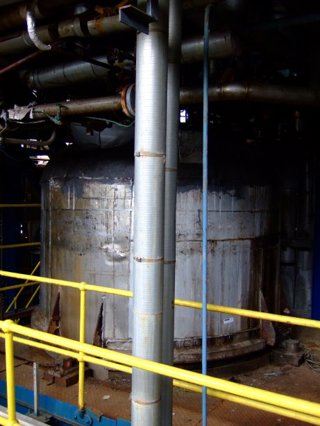

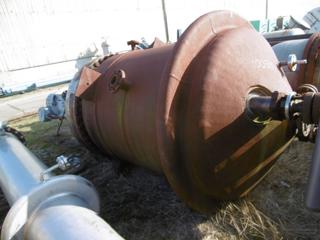

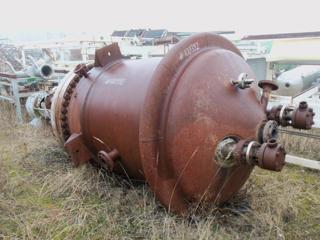

3,500 L (924.6 gallons) Stainless Steel 321 Batch-Type Agitated Reactor For Sale IPP# 100394

IPP# 100394, 3,500 L (924.6 gallons) Stainless Steel 321 Batch-Type Agitated Reactor For Sale

Condition:

Used

Material:

Stainless Steel 321

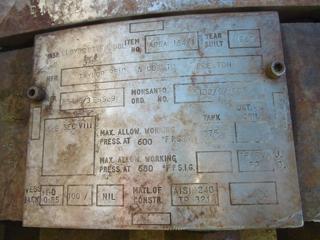

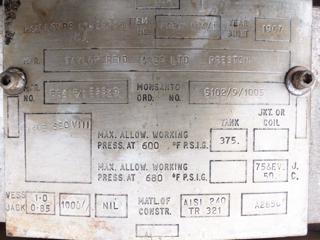

Manufacturer:

Taylor Reid & Co Ltd

Capacity Design:

3,500 L (924.6 gallons)

Internal Pressure:

25.9 bar (375 psi)

Internal Temperature:

315.6 °C (600 °F)

Jacket Pressure:

5.2 bar (75 psi)

Jacket Temperature:

360 °C (680 °F)

Jacket Material of Construction:

Carbon Steel

Orientation:

Vertical

Agitation:

Yes

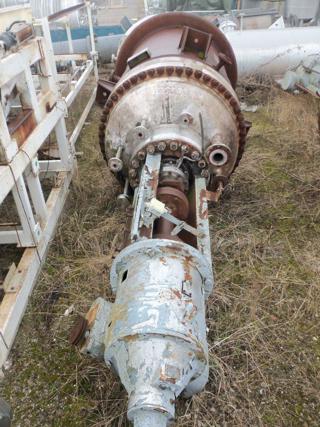

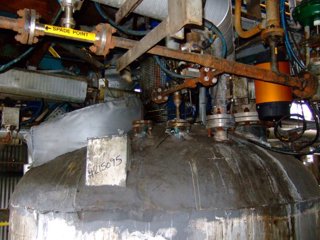

Top Head Type:

Dish

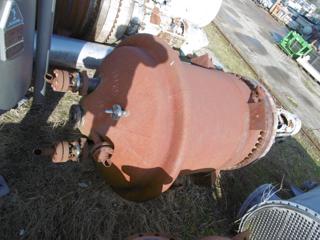

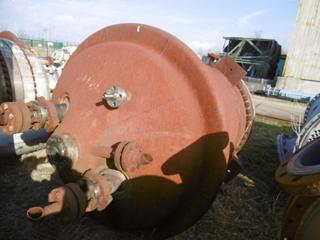

Bottom Head Type:

Cone

Nozzle Schedule:

- Top: Bolted dished top with 1-200mm, 2-75mm, and 1-50mm openings - Straight side: 4-25mm, 2-75mm, 1-38mm, and 1-30mm openings - Bottom: Welded cone bottom with 1-75mm, 3-50mm, and 1-25mm openings

Support Type:

Lugs

Additional Info:

internal coil 50 psig (3.4 bar) @ 680 degree F (360 degrees C.

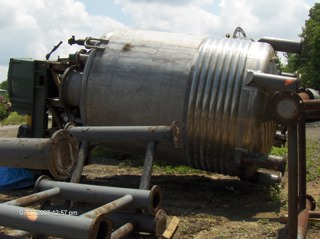

Jacket: Steel jacket with expansion joint
Internal coils: 321SS, 50mm diameter, 10 circles

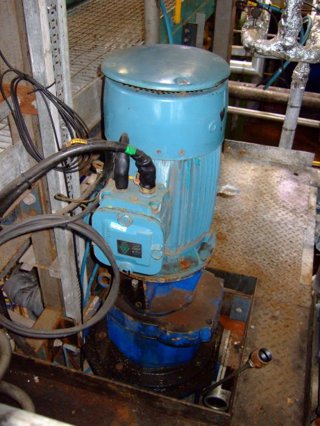

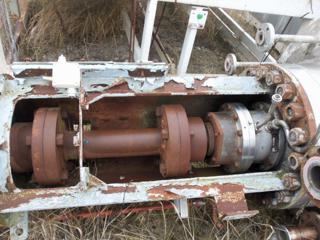

Spare parts: Spare shaft and coils included motor 3/50/400/440V
