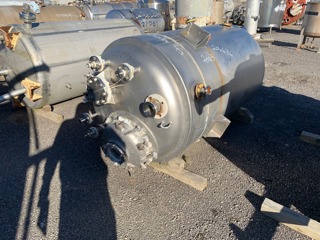

Stainless Steel 304 Batch-Type Agitated Reactor - IPP# 202359

  • Stainless Steel 304 Batch-Type Agitated Reactor - IPP# 202359 Stainless Steel 304 Batch-Type Agitated Reactor - IPP# 202359
  • Stainless Steel 304 Batch-Type Agitated Reactor - IPP# 202359
Overview
Reactor
Batch-Type Agitated
Mueller
Used
Stainless Steel 304
9,653 L (2,550 gallons)
Yes
Pressure Vessel
1.72 bar (25 psi)
Yes
148.9 °C (300 °F)
Jacket/Internal Coil
6.9 bar (100 psi)
148.9 °C (300 °F)
Stainless Steel 304
Dimensions
Vertical
1,600 mm (63 in)
5,182 mm (204 in)
Agitation System

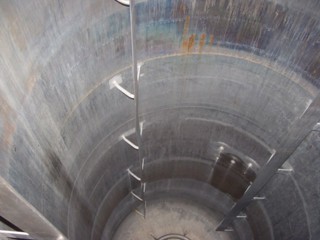

4 baffles
Heads
Dish
Dish
Other Specifications
Yes
Lugs
Inlets & Outlets
Openings: Top- 14" x 16" oval manway with cover, (1) 14" top center for agitator, (2)1 1/2", (7)2"; 1-2" bottom outlet.

Tank is suitable for agitator mounting through top center port.
