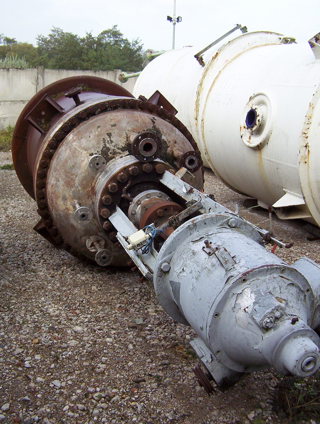

reactor with internal 904L stainless steel vertical coils, (6) sets of 904L stainless steel vertical internal coils,each with a surface area of 4.52 square meter (27.12 square meter total),total volume lost in tank for 6 coils 0.408 m3, MUT-Tschamber model DIN5XD7F-1 agitator drive, poer input 15 kw, speed 115 rpm, fully insulated and covered with an external cladding.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Lee Industries
Model: 1500U9MS
Condition: Used
Material: Stainless Steel 321
Capacity (Design): 11,356 L (3,000 gallons)
Internal Pressure: 2.1 bar (30 psi)
Jacketed Pressure/Vacuum Reactor with Mixer Vessel rated for MAWP 30 psi @ 275 degrees F. ,MDMT -20 degrees F @ 30 psi. Jacket rated for MAWP 100 psi @ 338 degrees F. , MDMT -20 degrees F @ 100 psi two zone, bottom and lower side. Both coils have 2" NPT inlets and outlets Agitator is single action with bottom scrapers. With Toshiba G-3 TOSVERT-130 transitor Inverter, and operating control panels
Internal Full Vacuum: Yes. Internal Temperature: 135 °C (275 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 170 °C (338 °F). Jacket Material of Construction: Stainless Steel 321. Agitation: Yes. Diameter: 2,591 mm (102 in). Straight Side Length: 2,134 mm (84 in). Support Type: Legs.

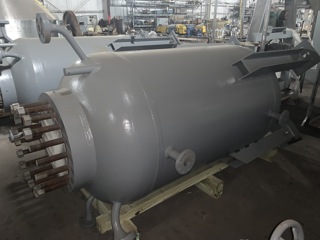

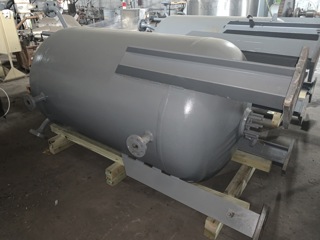

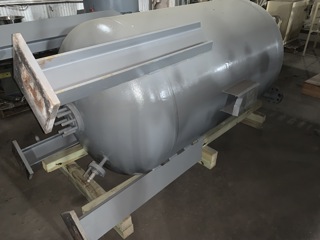

Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Superior Welding
Condition: Used
Material: Stainless Steel 321
Clad: Yes
Capacity (Design): 1,893 L (500 gallons)
Internal Pressure: 86.2 bar (1,250 psi)

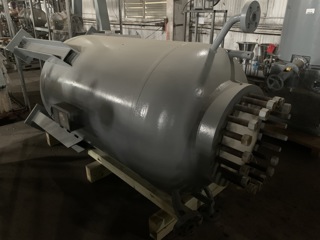

with welded 2:1 elliptical heads Internal coil, of 321 SS seamless pipe, is 2 & 3/8" diameter x 0.218 wall thickness. It has 13 turns with a 36" mean diameter on a 4" pitch. Mixing is by a 16" diameter radial type impeller rotating at 258 rpm Driven by a 5 HP motor, 440 v 60 Hz, 3 ph, and has a belt driven MagneDrive II series seal less magnetic drive, manufactured by Parker/Autoclave Engineers. This drive arrangement features Contamination free mixing, and zero atmospheric leakage
Internal Temperature: 343.3 °C (650 °F). Jacket Pressure: 20.7 bar (300 psi). Jacket Temperature: 398.9 °C (750 °F). Jacket Material of Construction: Stainless Steel 321. Orientation: Vertical. Diameter: 1,118 mm (44 in). Straight Side Length: 1,651 mm (65 in). Support Type: Legs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Struthers Wells
Condition: Used
Material: Stainless Steel 321
Clad: Yes
Capacity (Design): 1,893 L (500 gallons)
Internal Pressure: 86.2 bar (1,250 psi)
repair tag by Superior Welding, serial # 05-89-2004-01 with welded 2:1 elliptical heads Internal coil, of 321 SS seamless pipe, is 2 & 3/8" diameter x 0.218 wall thickness. It has 13 turns with a 36" mean diameter on a 4" pitch. Mixing is by a 16" diameter radial type impeller rotating at 258 rpm This drive arrangement features Contamination free mixing, and zero atmospheric leakage
Internal Temperature: 343.3 °C (650 °F). Jacket Pressure: 20.7 bar (300 psi). Jacket Temperature: 398.9 °C (750 °F). Orientation: Vertical. Agitation: Yes. Diameter: 1,118 mm (44 in). Straight Side Length: 1,651 mm (65 in). Support Type: Legs.

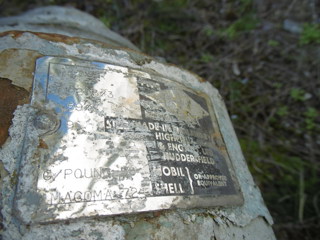

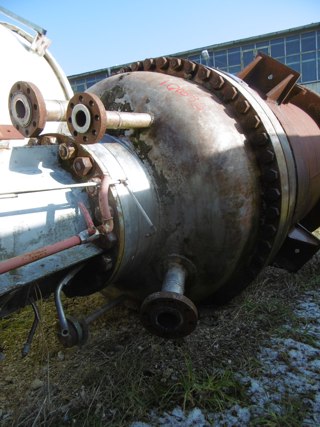

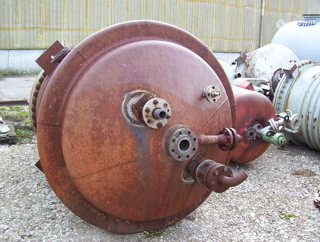

Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Taylor Reid & Co. and Preston Engineering
Condition: Used
Material: Stainless Steel 321
Capacity (Design): 3,500 L (924.6 gallons)
Internal Pressure: 25.9 bar (375 psi)

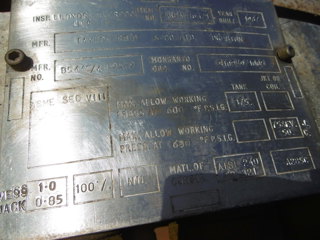

agitated reactor/autoclave internal coil 50 psig (3.4 bar) @ 680 degree F (360 degrees C), straight side with expansion joint. 321 stainless steel internal coils, coil 50mm diameter with 10 turns. double spiral agitator 3.75/15HP, 3/50/400/440V, 340-1455 RPM motor Double mechanical seal on shaft jacket 3/8" (9.5mm) thick No Motor.
Internal Temperature: 315.6 °C (600 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 360 °C (680 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,225 mm (48.2 in). Straight Side Length: 1,784 mm (70.2 in). Support Type: Lugs.
