63,900 L (16,881 gallons) Stainless Steel 304 Batch-Type Agitated Reactor For Sale IPP# 222757

IPP# 222757, 63,900 L (16,881 gallons) Stainless Steel 304 Batch-Type Agitated Reactor For Sale

Condition:

Used

Material:

Stainless Steel 304

Clad:

Yes

Manufacturer:

Mechanicca Sarda

Capacity Design:

63,900 L (16,881 gallons)

Internal Pressure:

10.3 bar (149.4 psi)

Internal Temperature:

100 °C (212 °F)

Jacket Pressure:

5.3 bar (76.9 psi)

Jacket Temperature:

100 °C (212 °F)

Jacket Material of Construction:

Carbon Steel

Orientation:

Vertical

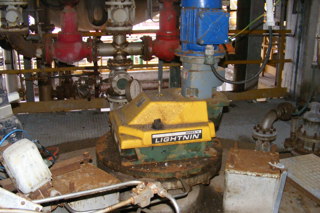

Agitation:

Yes

Baffle Details:

with internal baffles mounted to side wall.

Top Head Type:

Dish

Bottom Head Type:

Dish

Manway:

Yes

Nozzle Schedule:

- Top: (1) 20” manway with bolted cover, (1) 7’, (1) 5”, (1) 18” center top for agitator - Bottom: (1)20” off center, (1) 250 mm product outlet, (1) 6”, (1) 40 mm, (1) 3”

Support Type:

Legs

Additional Info:

Total capacity 63.9 cubic meter rated 10.3 bar @ 100 degrees C internal; 5.3 bar at 100 degrees C

Jacket coverage: 2350mm of straight side and bottom head
