Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988

  • Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988 Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988
  • Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988 Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988
  • Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988 Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988
  • Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988 Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988
  • Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988 Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988
  • Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988 Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988
  • Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988
  • Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988
  • Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988
  • Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988
  • Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988
  • Inconel Quest International LTD Batch-Type Agitated Reactor - IPP# 222988
Overview
Reactor
Batch-Type Agitated
Quest International LTD
Used
Inconel
2,250 L (594 gallons)
Pressure Vessel
1.02 bar (14.8 psi)
Yes
190 °C (374 °F)
Jacket/Internal Coil
6.1 bar (88.8 psi)
190 °C (374 °F)
Half Pipe/Limpet
Yes
Agitation System
Yes
Mechanical
with Lightnin agitator
1.5 kW (2 HP)
Sidewall Mounted Straight Baffle
Dimensions
1,600 mm (63 in)
1,200 mm (46.3 in)
Heads
Dish
Stainless Steel 316
Dish
Incoloy 825
Other Specifications
Yes
Lugs
Inlets & Outlets
openings top: (8) DN50, (1) 200mm, (1) 150mm, (1) 250mm, (1) 450mm manway cover, openings coils: each coil (2) 40mm, opening bottom: (1) 75mm
  • Incoloy 825 (2.4858)
  • Internal coils: Inconel 825, 40mm diameter, volume 90 liter, pressure rated 6.12 bar and full vacuum @ 190 degrees C
  • External coils: 316 stainless steel, 40mm diameter, volume 70 liter, pressure rated 6.12 bar and full vacuum @ 190 degrees Cmechanical seal with lubricator
  • Motor: 1.5kW electrical, manufactured by Brook Crompton, 3~/50Hz/380-420V/940rpm, EExdIIBT4
  • weld dished top made of 316 stainless steel

Similar Equipment

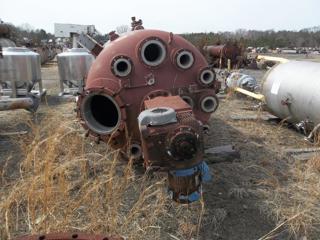

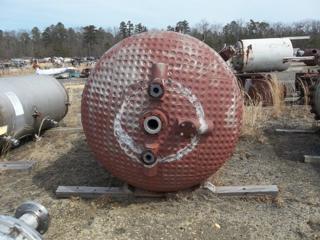

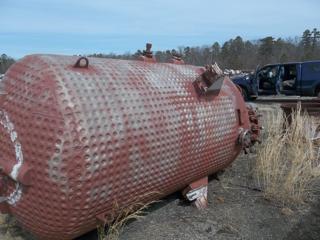

5,300 L (1,400 gallons) Inconel Batch-Type Agitated Reactor
