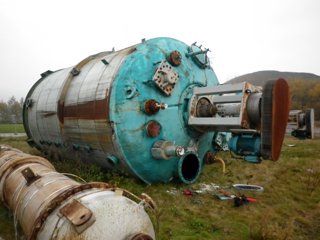

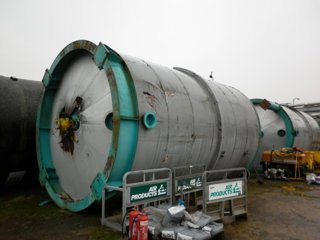

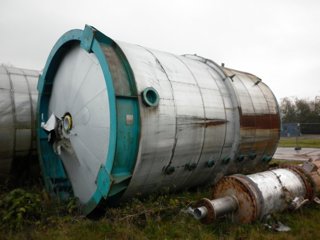

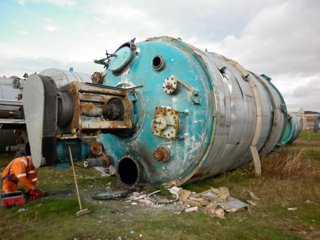

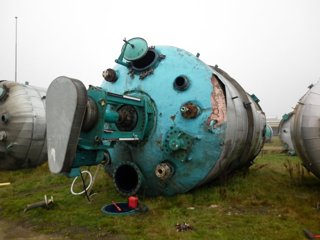

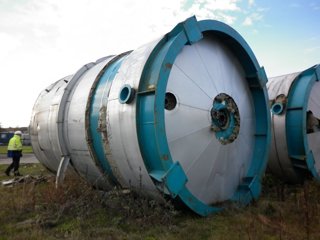

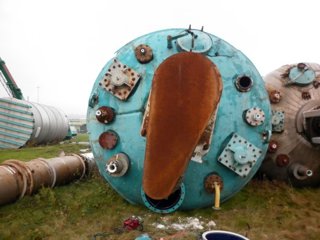

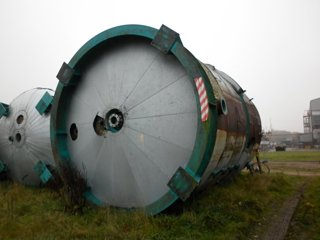

Reactor Batch-Type Agitated Glasslined Pfaudler BE - IPP# 224189

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE

Condition: Used

Material: Glasslined

Capacity (Design): 70,100 L (18,518 gallons)

Internal Pressure: 6 bar (87 psi)

design pressure internal -1/+6 bar @ -25/+200 deg C
jacket -1/+6 bar @ -25/+200 deg C (5000ltr)

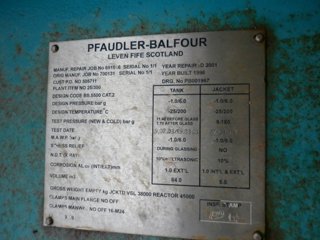

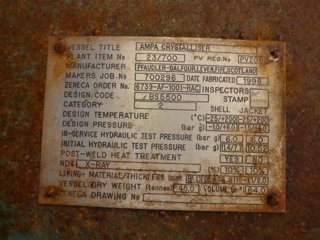

Pfaudler job #700296

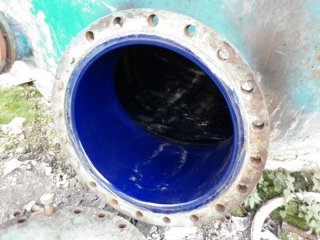

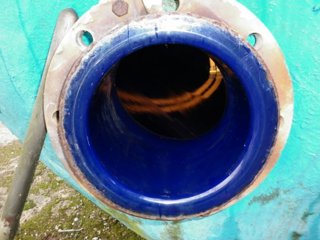

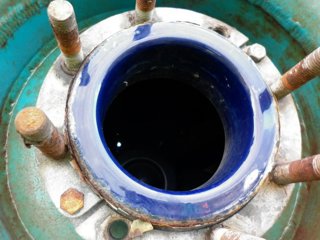

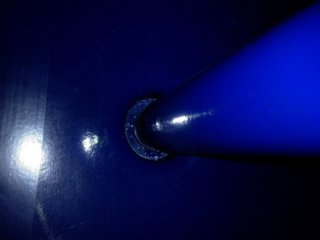

• Glass type: Blue 9119-1.1/2.0

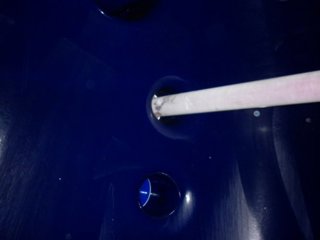

• Dip tubes: (1) 316 s/steel dip tube, (1) glass dip tube with shrink on PTFE sleeve

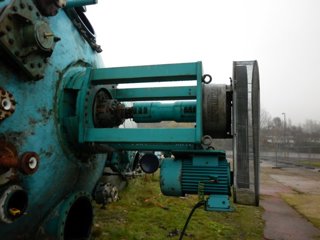

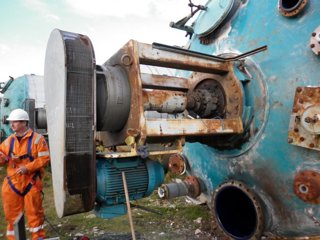

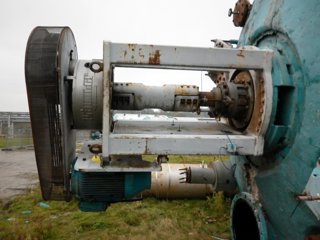

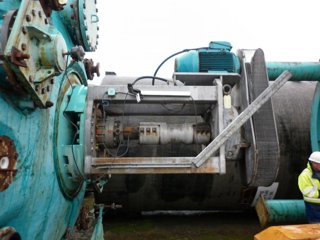

  Motor 3/50/415 volt
• Design code: BS5500

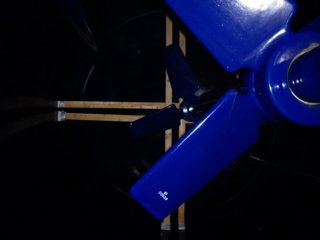

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 3,736 mm (147 in). Straight Side Length: 5,150 mm (203 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE

Condition: Used

Material: Glasslined

Capacity (Design): 70,100 L (18,518 gallons)

Internal Pressure: 6 bar (87 psi)

64 m3
reactor/crystallizer
Pfaudler job #700129 (#700232)
design pressure internal -1/+6 bar @ -25/+200 deg C
jacket -1/+6 bar @ -25/+200 deg C (5000ltr)
glass blue 9119-1.1/2.0

• Jacket: (1) 200mm, (8) 100mm, (1) 25mm
  Motor 3/50/380/415 volt
• Design Code: BS5500

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 3,736 mm (147 in). Straight Side Length: 5,150 mm (203 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE

Condition: Used

Material: Glasslined

Capacity (Design): 70,100 L (18,518 gallons)

Internal Pressure: 6 bar (87 psi)

64 m3
Pfaudler job #700179
Design pressure internal -1/+6 bar @ -25/+200 deg C
jacket -1/+6 bar @ -25/+200 deg C (5000ltr)

• Glass color: Blue 9119-1.1/2.0
• Design code: BS5500
  Motor 3/50/380/415 volt

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 3,736 mm (147 in). Straight Side Length: 5,150 mm (203 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE

Condition: Used

Material: Glasslined

Capacity (Design): 70,100 L (18,518 gallons)

Internal Pressure: 6 bar (87 psi)

64 m3
design pressure internal -1/+6 bar @ -25/+200 deg C
jacket -1/+6 bar @ -25/+200 deg C (5000ltr)
Color: Blue (9119-1.1/2.0)
VRA-C single Duramettalic

• Jacket: (1) 200mm opening, (8) 100mm openings, (1) 25mm opening
  Motor 3/50/380/415 volt
• Dip tubes: (2) PTFE lined
• Design code: BS5500

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 3,736 mm (147 in). Straight Side Length: 5,150 mm (203 in). Support Type: Lugs.
