Stainless Steel Austenitic Au. C Kosik Kenlhelm Batch-Type Agitated Reactor - IPP# 234227

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: K. Ley, Germany

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 630 L (166.4 gallons)

Internal Pressure: 6 bar (87 psi)

Internal pressure -1/6 bar @ -60/+200 degrees C; half pipe coil jacket -1/20 bar @ -60/+200 degrees C,

Jacket capacity: 20 liter

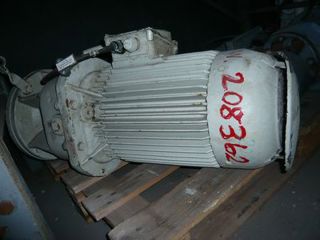

with a 3kW agitator drive, manufactured by MUT type N3GF8-3,0, serial number 02537, maximum speed 285 rpm,

Motor type 132S-4, 3~/50Hz/230-400V/1.445 rpm, counter flow agitator,

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Dynamite Nobel

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 3,100 L (819 gallons)

Internal Pressure: 6 bar (87 psi)

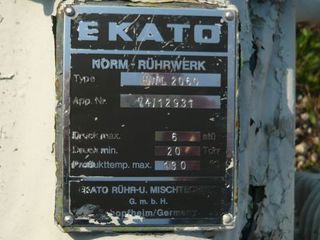

Ekato type EM100, 23/113 rpm agitator drive, mechanical seal with lubricator, TUV certified

Internal Temperature: 300 °C (572 °F). Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 300 °C (572 °F). Jacket Material of Construction: Stainless Steel 316. Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 970 mm (38.2 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Kosik Gmbh

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 7,000 L (1,850 gallons)

Internal Pressure: 1.5 bar (21.8 psi)

with external carbon steel half pipe coil, internal pressure rated 1.5 bar @ 100 degrees C ( volume 7000 liter) , external coil pressure rated 6 bar @ 150 degrees C (volume 100 liter Motor type ENGV-132MB-42M, serial number 1814781, 3~/50Hz/380V/2,905rpm, EExeIIT3,

Internal Temperature: 100 °C (212 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 1,800 mm (70.9 in). Straight Side Length: 3,500 mm (137.8 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

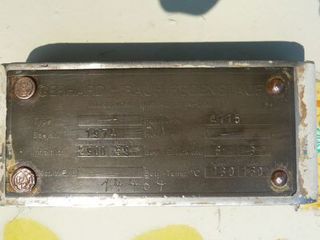

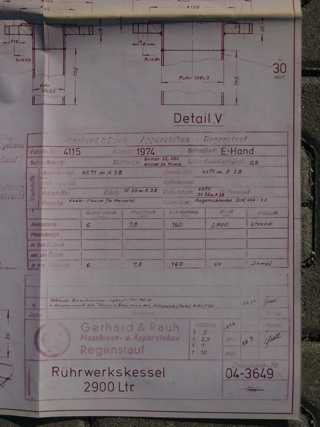

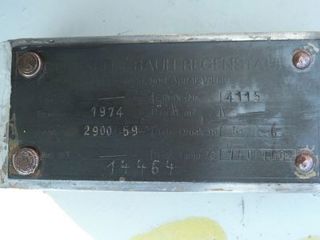

Manufacturer: Gerhard & Rauh

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 2,900 L (766 gallons)

Internal Pressure: 6 bar (87 psi)

316 Ti ss internal pressure 6 bar @160 degrees C jacket 6 bar @ 160 degrees C (total volume 59 liter)

Internal Temperature: 160 °C (320 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 160 °C (320 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 1,500 mm (59.1 in). Straight Side Length: 1,200 mm (48 in). Support Type: Legs.
