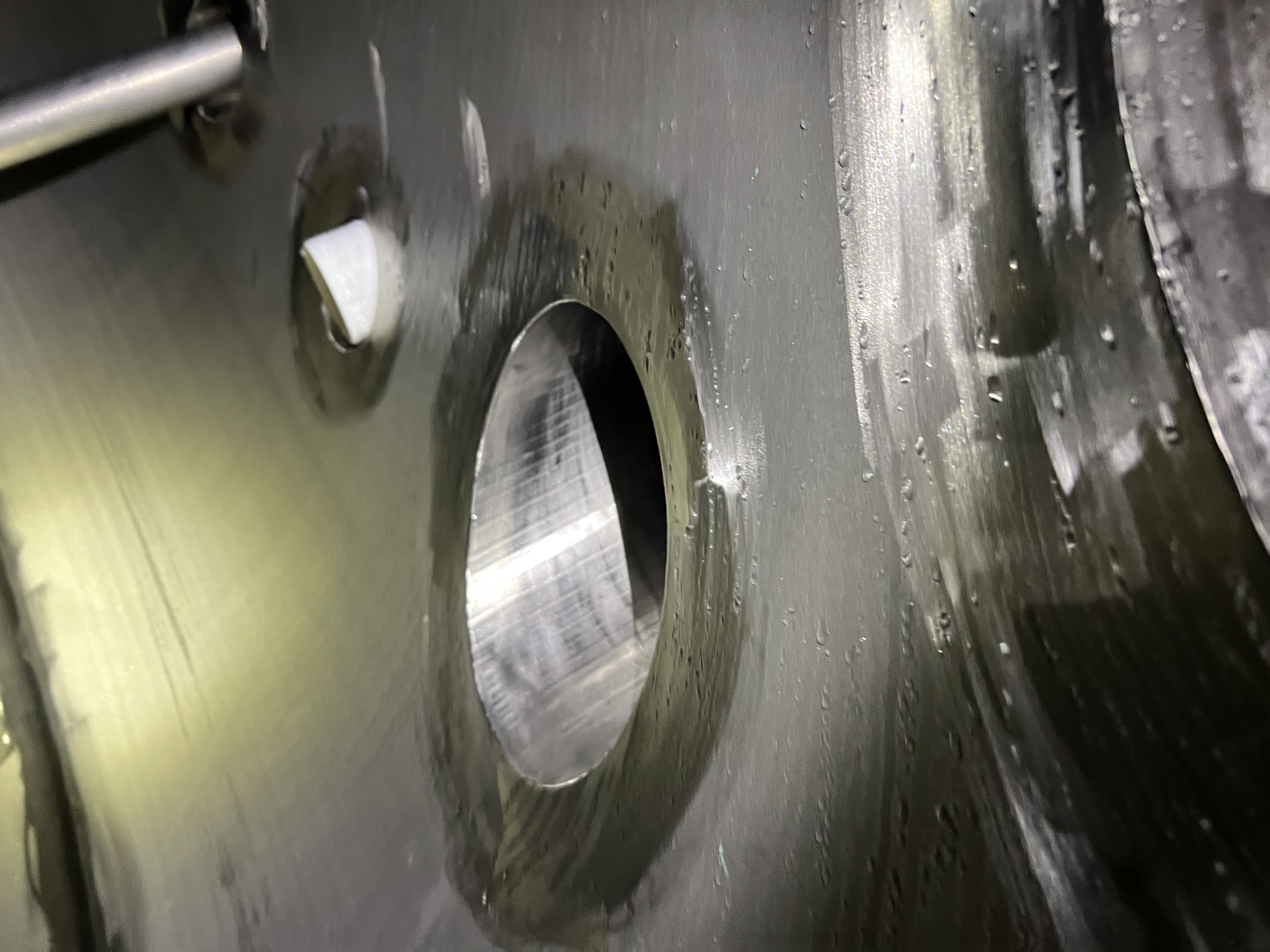

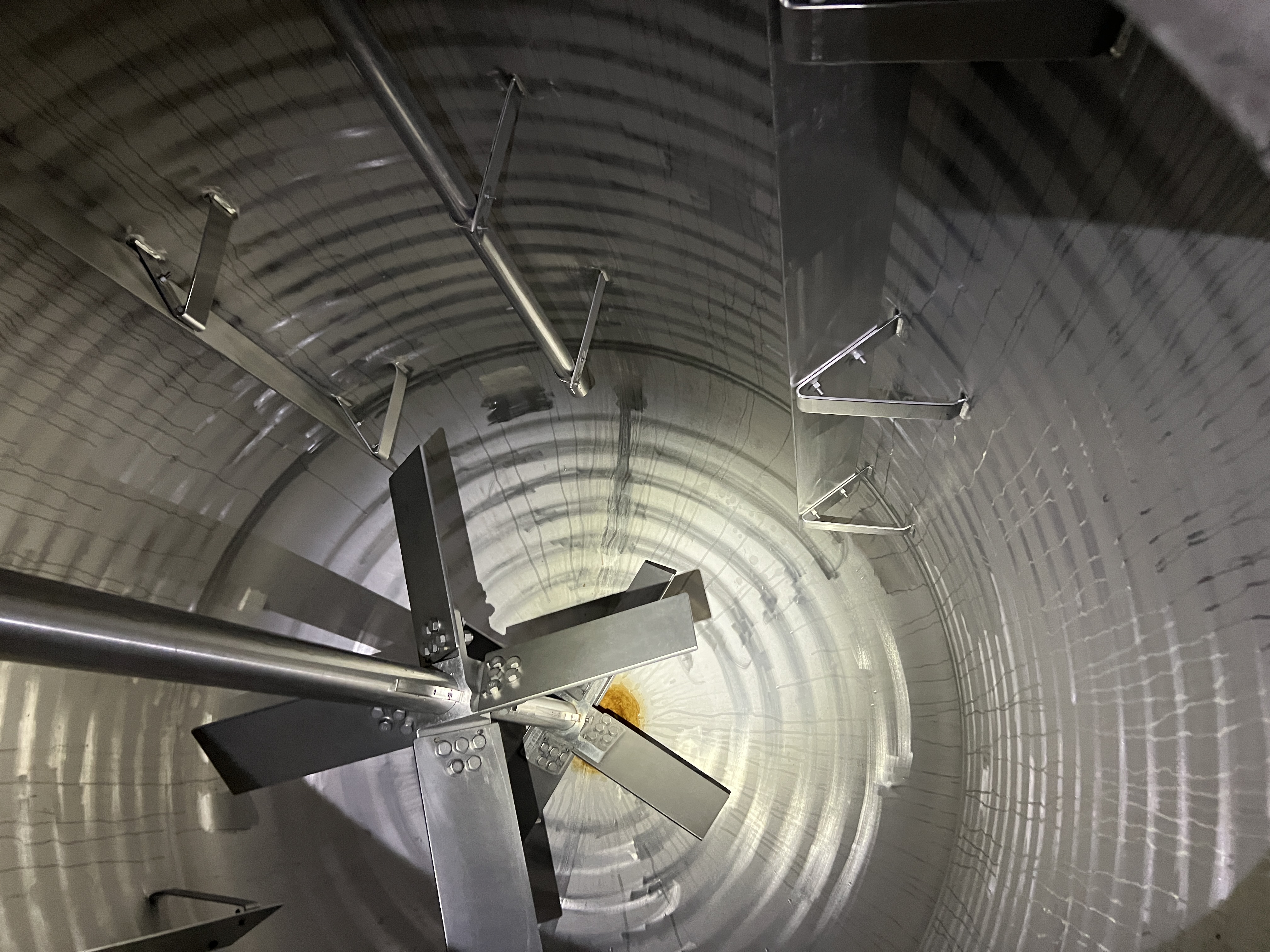

with Alloy 600 Half pipe coil jacket

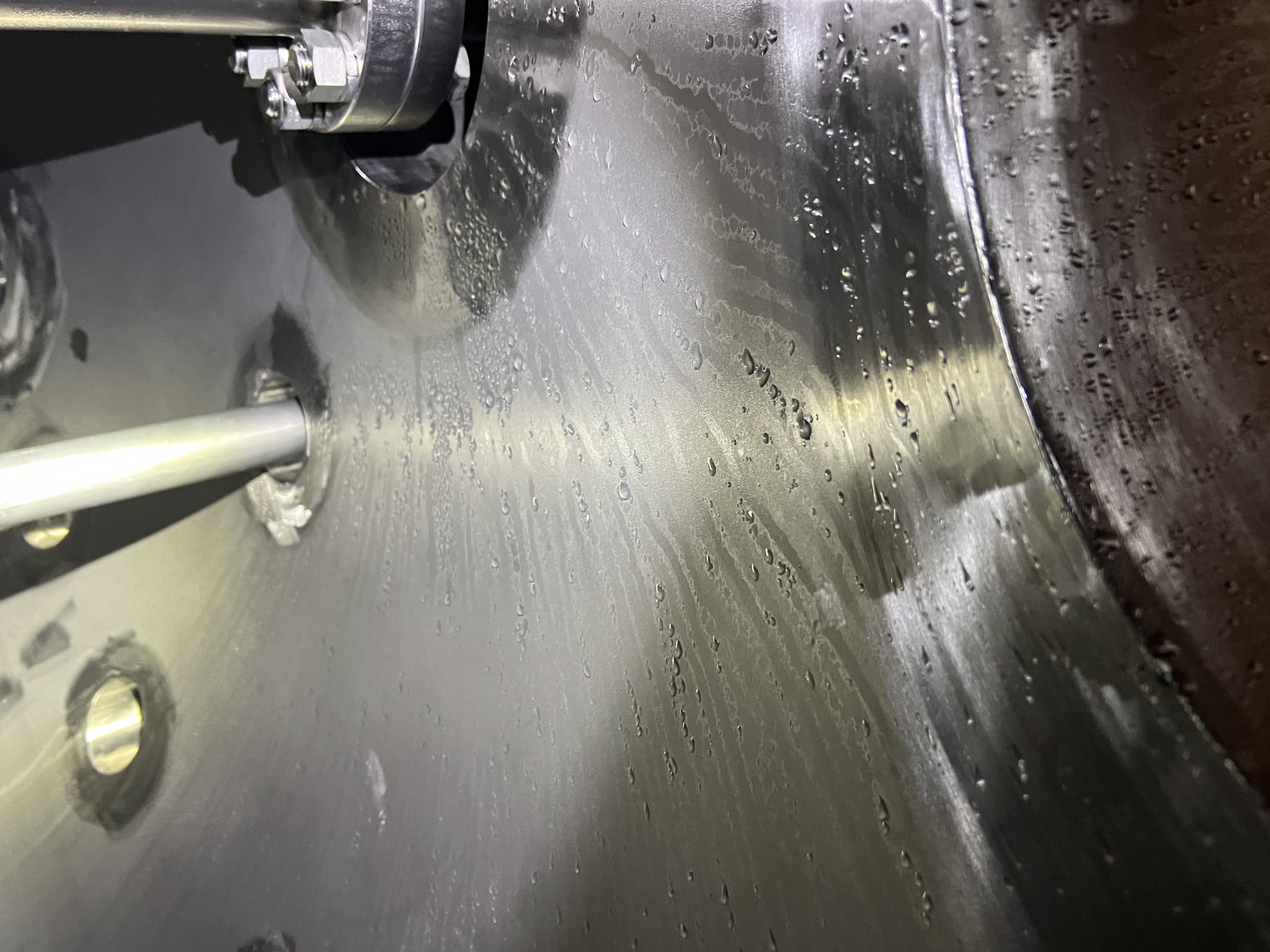

internal mill finish
Half pipe 17 turns at 4.5".
Lightning drive with 10hp motor.
Mechanical seal with nitrogen purge .
Shell Nominal =0.375 Heads = 0.43 minimal
Shipping Dimensions: 9' W x 25' L x 9' H
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Tolan
Condition: Used
Material: Stainless Steel 316
Capacity (Design): 9,450 L (2,500 gallons)
Internal Pressure: 1.01 bar (14.7 psi)

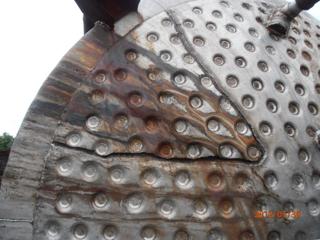

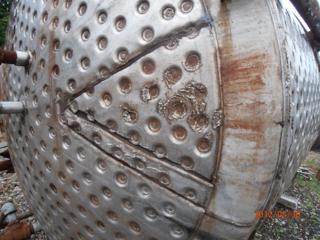

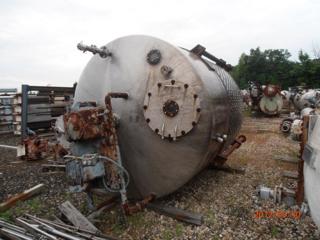

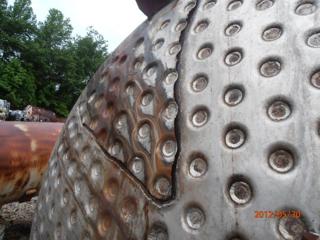

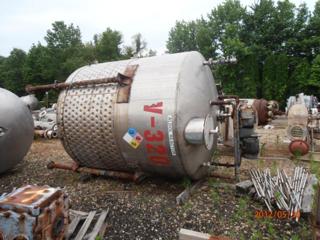

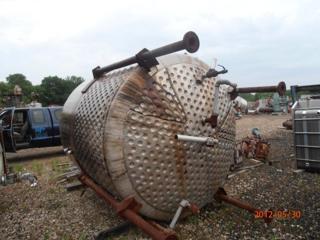

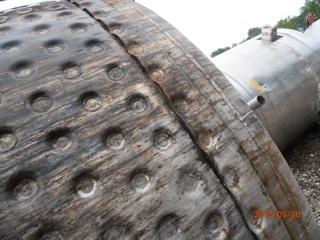

agitated, jacketed, reactor. rated atmos internal; SS dimple Jacket covers bottom half of tank and bottom head. Top mounted right angle down agitator drive, direct coupled to a 7.5 HP motor. Reinforcing ring around middle of tank with (4) lugs and legs attached ot the mounting ring.
Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 204.4 °C (400 °F). Jacket Material of Construction: Stainless Steel Other. Orientation: Vertical. Agitation: Yes. Diameter: 2,150 mm (84 in). Straight Side Length: 2,150 mm (84 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Baskerville and Lindsay Ltd
Condition: Used
Material: Hastelloy - C276
Clad: Yes
Capacity (Design): 2 L (0.53 gallons)
Internal Pressure: 358.7 bar (5,200 psi)
direct coupled Body with electrical heated jacket and full insulation with stainless steel clad jacket motor : 3/210 volt
Internal Temperature: 300 °C (572 °F). Jacket Material of Construction: Stainless Steel Other. Agitation: Yes. Diameter: 88.9 mm (3.5 in). Straight Side Length: 304.8 mm (12 in).
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Brighton Manufacturing
Condition: Used
Material: Hastelloy - C276
Capacity (Design): 12,100 L (3,200 gallons)
Internal Pressure: 4.2 bar (61 psi)
Internal Temperature: 93.3 °C (200 °F). Jacket Pressure: 13 bar (188 psi). Jacket Temperature: 93.3 °C (200 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,250 mm (89 in). Straight Side Length: 2,650 mm (105 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Perry Products Corp
Condition: Used
Material: Hastelloy - C276
Capacity (Design): 946 L (250 gallons)
Internal Pressure: 10.3 bar (150 psi)
Three turns schedule 10 half pipe on bottom head, Eight turns schedule 10 half pipe on side walls. Mixing by Eastern model FRG-C2M with double mechanical seal Duel sets of four blade pitch turbine mixers
Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Diameter: 1,000 mm (40 in). Straight Side Length: 1,150 mm (45 in). Support Type: Legs.
