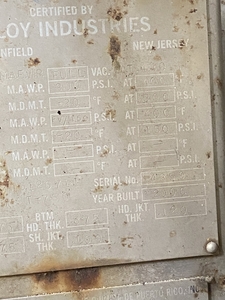

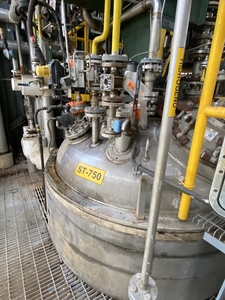

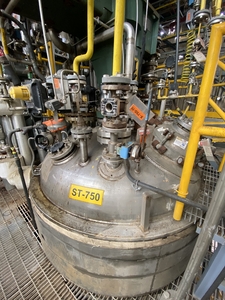

Name: Stainless Steel 316 Alloy Industries Batch-Type Agitated Reactor
Brand: Alloy Industries
SKU: 241041

Overview

Type:

Reactor

Subtype:

Batch-Type Agitated

Manufacturer:

Alloy Industries

Condition:

Used

Material:

Stainless Steel 316

Capacity (Design):

9,450 L (2,500 gallons)

Internal Finish:

Mill 2B

Pressure Vessel

Internal Pressure:

20.7 bar (300 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

204.4 °C (400 °F)

Jacket/Internal Coil

Jacket Pressure:

10.3 bar (150 psi)

Jacket Temperature:

204.4 °C (400 °F)

Jacket Type:

Half Pipe/Limpet

Jacket Material of Construction:

Stainless Steel 304

Dimensions

Orientation:

Vertical

Diameter:

2,050 mm (80 in)

Straight Side Length:

2,650 mm (105 in)

Agitation System

Agitation:

Yes

Impeller Type:

Pitch Blade

Agitation Seal Type:

Mechanical

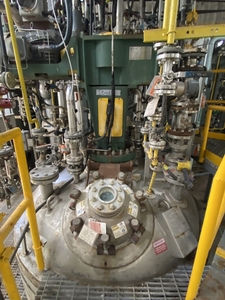

Agitator Details:

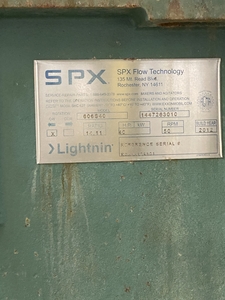

Lightnin right angle drive model 606S40, 40 hp 50 RPM, serial # 1447263010 with a ratio of 14.11. Mechanical seal with Nitrogen purge. 4 blade pitch turbine agitator on upper tier, six blade dispersion mixer on lower tier,

Drive Power:

29.8 kW (40 HP)

Motor Power:

29.8 kW (40 HP)

Baffle Type:

Flat Vertical

Baffle Details:

4 sidewall baffles

Heads

Top Head Type:

Dish

Top Head Material:

Stainless Steel 316

Bottom Head Type:

Dish

Bottom Head Material:

Stainless Steel 316

Other Specifications

CIP:

Yes

Manway:

Yes

Support Type:

Legs

Inlets & Outlets

Nozzle Schedule:

One 14" nozzle for agitator, one 10" vent nozzle, Five 4" nozzles, one 3" center bottom outlet, seven 2" nozzles, one 1/2" nipple, and six 3" jacket nozzles.

Stainless Steel 316 Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 757 L (200 gallons)

Jacket Material of Construction: Carbon Steel

With Lightnin, 1.5 hp mixer.
1" jacket supply and return lines.

Orientation: Vertical. Diameter: 965 mm (38 in). Straight Side Length: 914 mm (36 in). Support Type: Legs.

Stainless Steel 316 Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Cream City Boiler

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 2,850 L (750 gallons)

Internal Pressure: 10.3 bar (150 psi)

Top Head 9/16", Bottom Head 1 3/16"; CS jacket 9/16" thick.Top mounted Lightnin drive, Model 85-5-40, 9.33 to 1 ratio,Direct coupled to a 5 HP 3/60/230/460 volt 1765 rpm motor, 180 RPM output.(4) blade pitched paddle mid shaft, 4 blade flat turbine on bottom, (4) baffles on side wall.

Internal Temperature: 148.9 °C (300 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,700 mm (66 in). Straight Side Length: 1,450 mm (57 in). Support Type: Lugs.

565 L (149.3 gallons) Stainless Steel 316 Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Hanag AG

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 565 L (149.3 gallons)

Internal Pressure: 6 bar (87 psi)

Total liter capacity is 565, 800 mm diameter x 975 mm tangent to tangent,

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 13 bar (188.5 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Stainless Steel 304. Body Only: Yes. Diameter: 800 mm (31.5 in). Straight Side Length: 975 mm (38.4 in). Support Type: Lugs.
