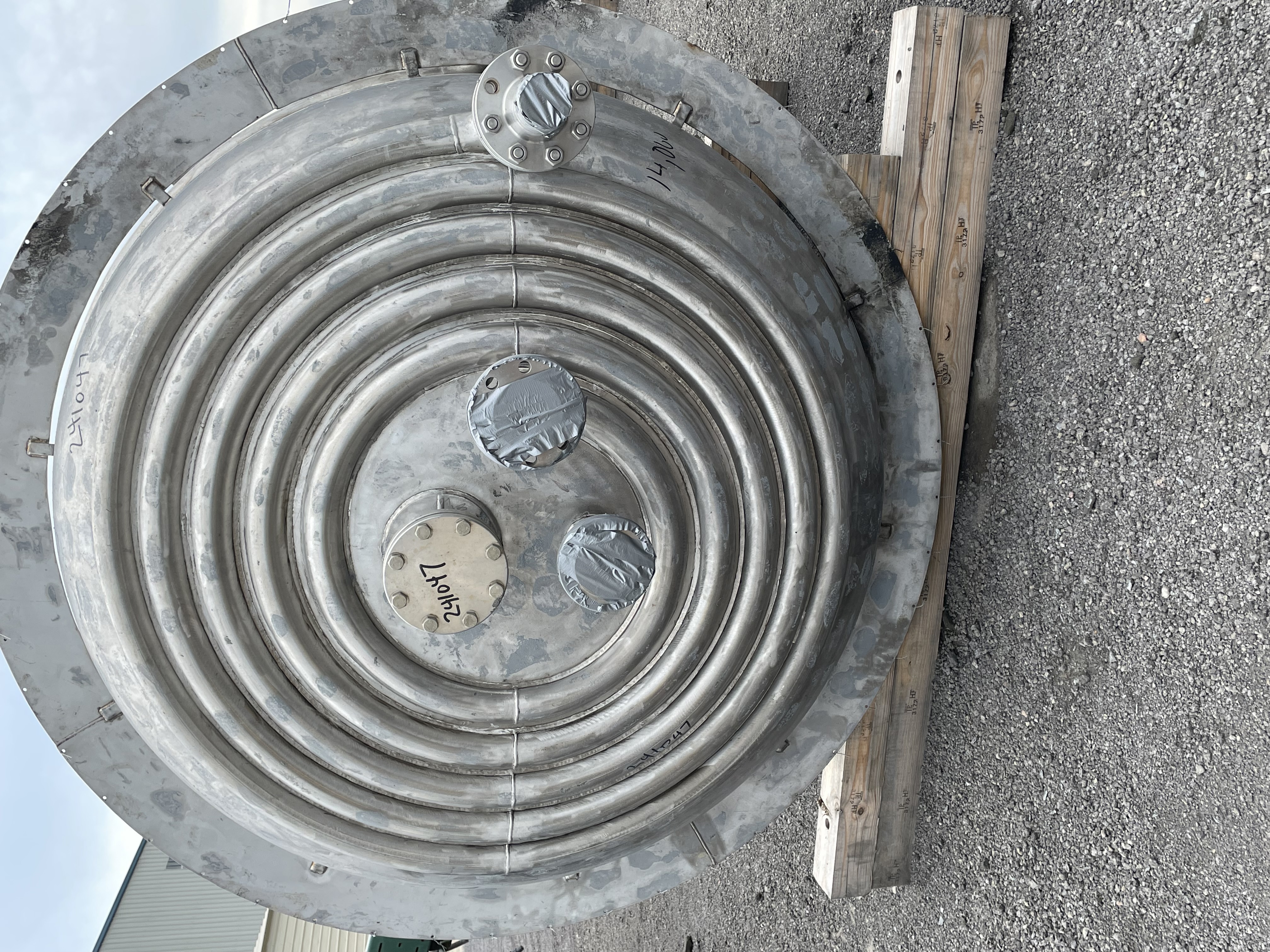

a mill finish internal 3" half pipe coil jacket Half pipe coil jacket has 15 turns at 4 & 9/16" pitch. With Clean in Place. with welded 2: 1 elliptical heads head thickness =0.388", jacket thickness = 0.109". Lightnin right angle mixer with estimated 25 HP motor, and mechanical seal. 18" manway with davit assist, three 10"
Type: Reactor
Subtype: Batch-Type Agitated
Condition: Used
Material: Stainless Steel 316
Capacity (Design): 757 L (200 gallons)
Jacket Material of Construction: Carbon Steel
Orientation: Vertical. Diameter: 965 mm (38 in). Straight Side Length: 914 mm (36 in). Support Type: Legs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Cream City Boiler
Condition: Used
Material: Stainless Steel 316
Capacity (Design): 2,850 L (750 gallons)
Internal Pressure: 10.3 bar (150 psi)
Internal Temperature: 148.9 °C (300 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,700 mm (66 in). Straight Side Length: 1,450 mm (57 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Hanag AG
Condition: Used
Material: Stainless Steel 316
Capacity (Design): 565 L (149.3 gallons)
Internal Pressure: 6 bar (87 psi)
Total liter capacity is 565, 800 mm diameter x 975 mm tangent to tangent,
Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 13 bar (188.5 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Stainless Steel 304. Body Only: Yes. Diameter: 800 mm (31.5 in). Straight Side Length: 975 mm (38.4 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Condition: Used
Material: Stainless Steel 316
Capacity (Design): 4,000 L (1,050 gallons)
Body Only: Yes
s/steel half pipe coil jacket on lower half of straight side only, 3-internal baffles on sidewall,
Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight Side Length: 1,900 mm (74.8 in). Support Type: Lugs.
