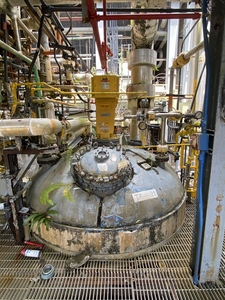

Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068

SOLD
  • Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068 Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068
  • Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068 Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068
  • Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068 Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068
  • Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068 Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068
  • Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068 Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068
  • Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068 Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068
  • Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068
  • Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068
  • Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068
  • Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068
  • Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068
  • Stainless Steel 316 Alloy Fab Batch-Type Agitated Reactor - IPP# 241068
Overview
Reactor
Batch-Type Agitated
Alloy Fab
Used
Stainless Steel 316
11,350 L (3,000 gallons)
Pressure Vessel
6.9 bar (100 psi)
Yes
204.4 °C (400 °F)
Jacket/Internal Coil
10.3 bar (150 psi)
204.4 °C (400 °F)
Half Pipe/Limpet
Dimensions
Vertical
2,450 mm (96 in)
2,300 mm (90 in)
Agitation System
Yes
Mechanical

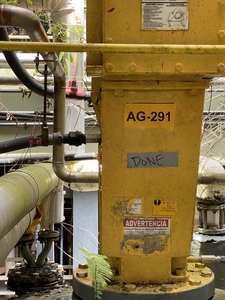

Right angle Lightnin mixer with estimated 10 HP drive motor and mechanical seal. One set 4 blade pitch turbine agitator
7.5 kW (10 HP)
four side wall baffles
Heads
Elliptical
Elliptical
Other Specifications
Yes
Legs
Inlets & Outlets
One man way, with sight glass assembly, (1)12" nozzle ,(1)10" nozzle,, (2)6" nozzles, (2)4" nozzles ,(4)3" nozzles, one 2" nozzle, and one 1.5" nozzle. Six 2" jacket nozzles
Additional Information

reactor with a mill finish and a Alloy 600, 3" coil jacket Shell rated 100/FV @ 400 degrees F., jacket rated for 150 psi @ 400 degrees F Shell Jacket: 16 turns on a 4 9/16" pitch. Bottom head jacket: 7.5 turns on a 2 4.5" pitch MFG 3239 with welded 2:1 elliptical heads heads=0.375" jacket=0.78" Alloy dip tubes
