7,571 L (2,000 gallons) Glasslined Batch-Type Agitated Reactor For Sale IPP# 241072

IPP# 241072, 7,571 L (2,000 gallons) Glasslined Batch-Type Agitated Reactor For Sale

Condition:

Used

Material:

Glasslined

Manufacturer:

DeDietrich

Capacity Design:

7,571 L (2,000 gallons)

Internal Pressure:

6.9 bar (100 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

260 °C (500 °F)

Jacket Pressure:

6.2 bar (90 psi)

Jacket Temperature:

260 °C (500 °F)

Agitation:

Yes

Baffle Type:

Finger Baffle

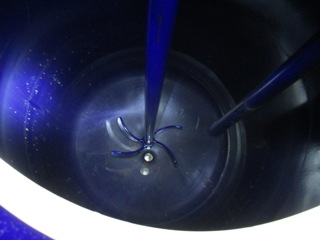

Baffle Details:

3 finger down baffle

Top Head Type:

Dish

Bottom Head Type:

Dish

Nozzle Schedule:

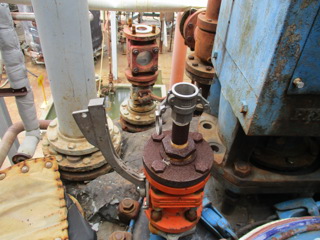

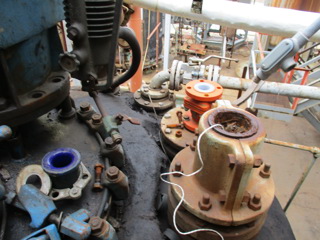

Main cover has two 2" nozzles and one 4" nozzle. Man way cover has two 4" raised nozzles. Sight glass assembly. Two 8" nozzles, two 6" nozzles, three 4" nozzles, one 4" center bottom nozzle.

Support Type:

Legs

Additional Info:

head thickness15/16", jacket thickness=35/64" PTE 08 Drive with estimated 25 HP motor, and stuffing box for seal. 30" main cover with 14" x 18" man way, and pro ring and davit arm
