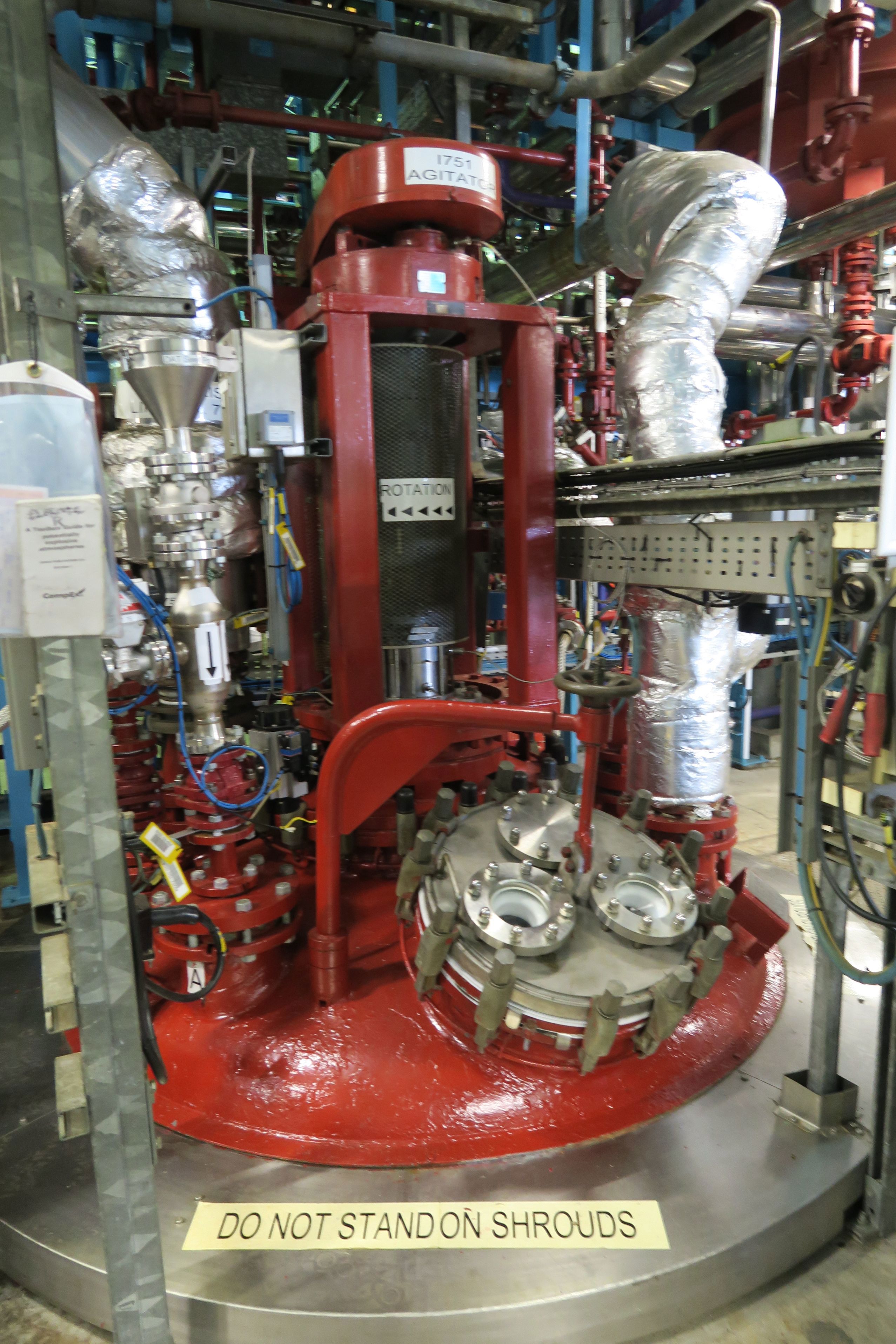

Glasslined Pfaudler Batch-Type Agitated Reactor - IPP# 242464

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: CE6300

Condition: Used

Material: Glasslined

Capacity (Design): 7,600 L (2,000 gallons)

Internal Pressure: 6 bar (87 psi)

• design pressure internal -1/6 bar + full vacuum @ -15/185 degrees C (7620 liter),
• jacket -1/10 bar @ -15/185 degrees C (500 liter),
• glass type 9129 (white glass),

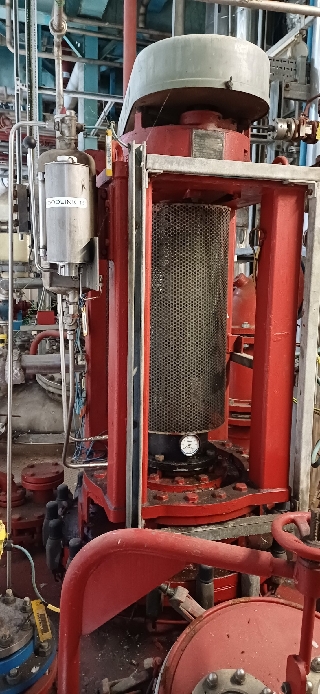

• John Crane double mechanical seal with lubricator pot
• IP55 zone 1, EExd IIB T4 motor,

Internal Full Vacuum: Yes. Internal Temperature: 185 °C (365 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 185 °C (365 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 2,050 mm (80.4 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: CE6300

Condition: Used

Material: Glasslined

Capacity (Design): 7,600 L (2,000 gallons)

Internal Pressure: 6.6 bar (95.7 psi)

• 6300 liter working capacity,
• design pressure internal -1/6.6 bar @ -29/185 degrees C,
• jacket -1/10 bar @ -29/185 degrees C (550 liter),
• glass type 9129,
• driven by 13.5kw 3/50/415 volt 1475 rpm EExd IIB T4 zone 1 motor,
• 4-blade pitched paddle cryolock agitator,
• white glass body and baffle, blue glass agitator shaft
• design code: ASME VIII DIV 1 1989 with and addenda up to and including winter 1990

Internal Full Vacuum: Yes. Internal Temperature: 185 °C (365 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 185 °C (365 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 2,050 mm (80.4 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: CE6300

Condition: Used

Material: Glasslined

Capacity (Design): 7,500 L (2,000 gallons)

Internal Pressure: 6 bar (87 psi)

• 6300 liter working volume,
• design pressure internal -1/6 bar @ -29/185 degrees C (7515 liter),
• design pressure jacket -1/10 bar @ -29/185 degrees C (744 liter),
• CE 0038,
• glass type WWW9125,
• design code: ASME VIII DIV1, 2004 ANNEXE Z and essential safety requirements of PED/97/23/EC

Internal Full Vacuum: Yes. Internal Temperature: 185 °C (365 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 185 °C (365 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,950 mm (76.9 in). Straight Side Length: 2,050 mm (80.3 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: CE6300

Condition: Used

Material: Glasslined

Capacity (Design): 6,300 L (1,650 gallons)

Internal Pressure: 6.6 bar (95.7 psi)

• design pressure internal -1/6.6 bar @ -29/185 degrees C,
• jacket -1/10 bar @ -29/185 degrees C,
• glass type 9129,
• 10-90 rpm shaft speed,
• IP55 Exd IIB T4 motor
• design code: ASME VIII DIV 1 1989 (DEC.'90.Addenda)

Internal Full Vacuum: Yes. Internal Temperature: 185 °C (365 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 185 °C (365 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 2,050 mm (80.4 in).
