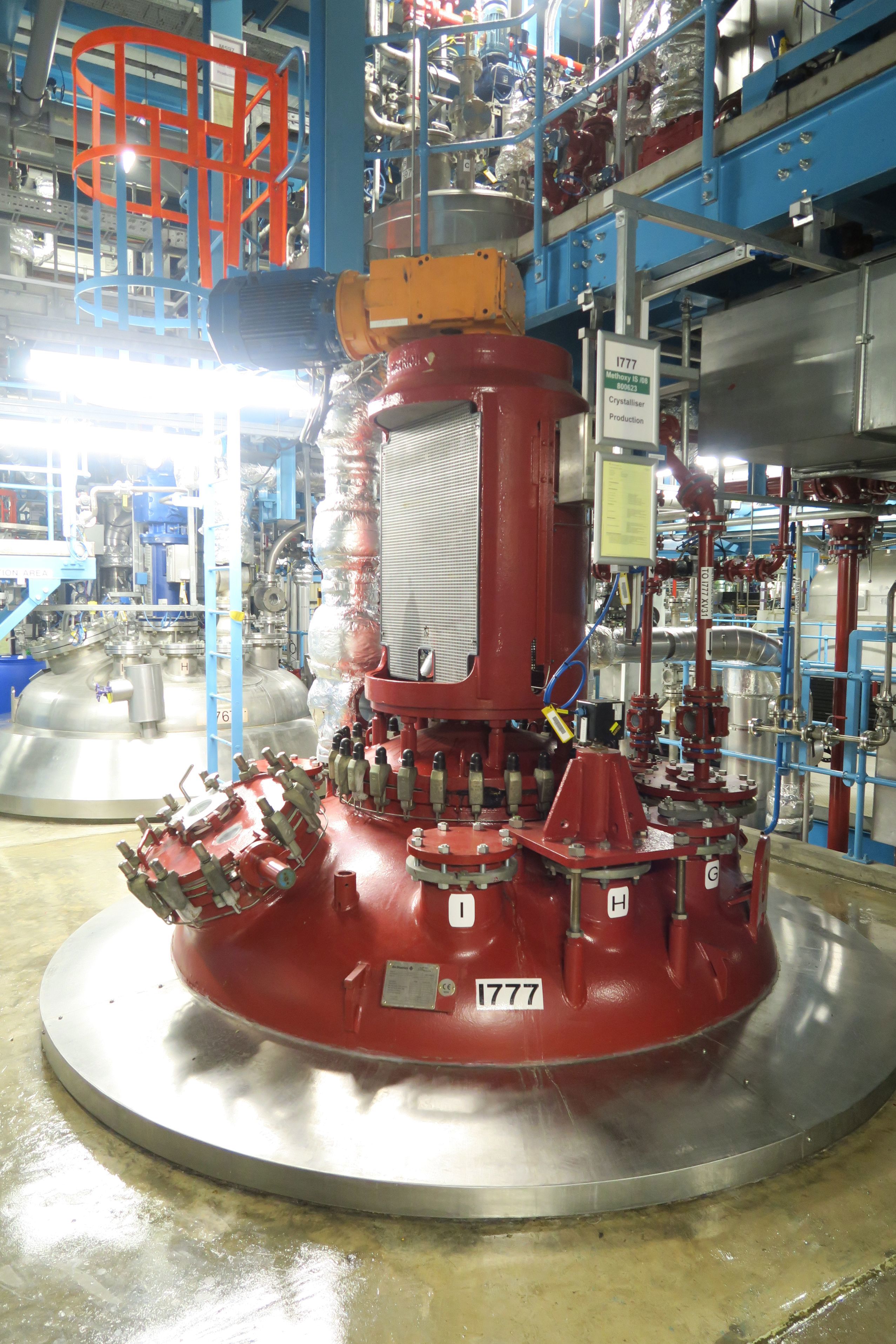

Glasslined DeDietrich CE Batch-Type Agitated Reactor - IPP# 242496

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: CE10000

Condition: Used

Material: Glasslined

Capacity (Design): 11,750 L (3,100 gallons)

Internal Pressure: 6 bar (87 psi)

• design pressure internal -1/6 bar @ -25/150 degrees C (11749 liter),
• jacket -1/10 bar @ -29/160 degrees C (92.92/92.92 liter),
• glass type 3009-U,
• CE 0034,
• Ex II 2 GD classification,
• driven by approx 18.5kw 3/50/400/690 volt 1500 rpm EEx de IIB T4 IP65 motor via 16.12:1 ratio gearbox,
• 3-sets of 3-blade glass lock pitched paddles,
• gas type Burgmann double mechanical seal,
• half pipe coil jacket on straight side and bottom dish,
• design code: AD-M 2000,

Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 160 °C (320 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,400 mm (94.5 in). Straight Side Length: 1,950 mm (76.3 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: CSA

Condition: New

Material: Glasslined

Capacity (Design): 2,850 L (750 gallons)

Internal Pressure: 6.9 bar (100 psi)

Hemi-coil two circuit, two zone split pipe coil jacket rated 450 psig @ 500 degress F, -20 deg F @ 450 psig.

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 31 bar (450 psi). Jacket Temperature: 260 °C (500 °F). Body Only: Yes. Orientation: Vertical. Diameter: 1,500 mm (60 in). Straight Side Length: 1,200 mm (48 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Condition: Needs Reglass

Material: Glasslined

Capacity (Design): 3,800 L (1,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

5 TW drive, 40 to 60 rpm output, belt driven motor, 2 finger up baffle.

Internal Full Vacuum: Yes. Internal Temperature: 204.4 °C (400 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 204.4 °C (400 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,700 mm (66 in). Straight Side Length: 2,000 mm (78 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Capacity (Design): 3,800 L (1,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

5DTW, belt driven dip tube

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Agitation: Yes. Support Type: Lugs.
