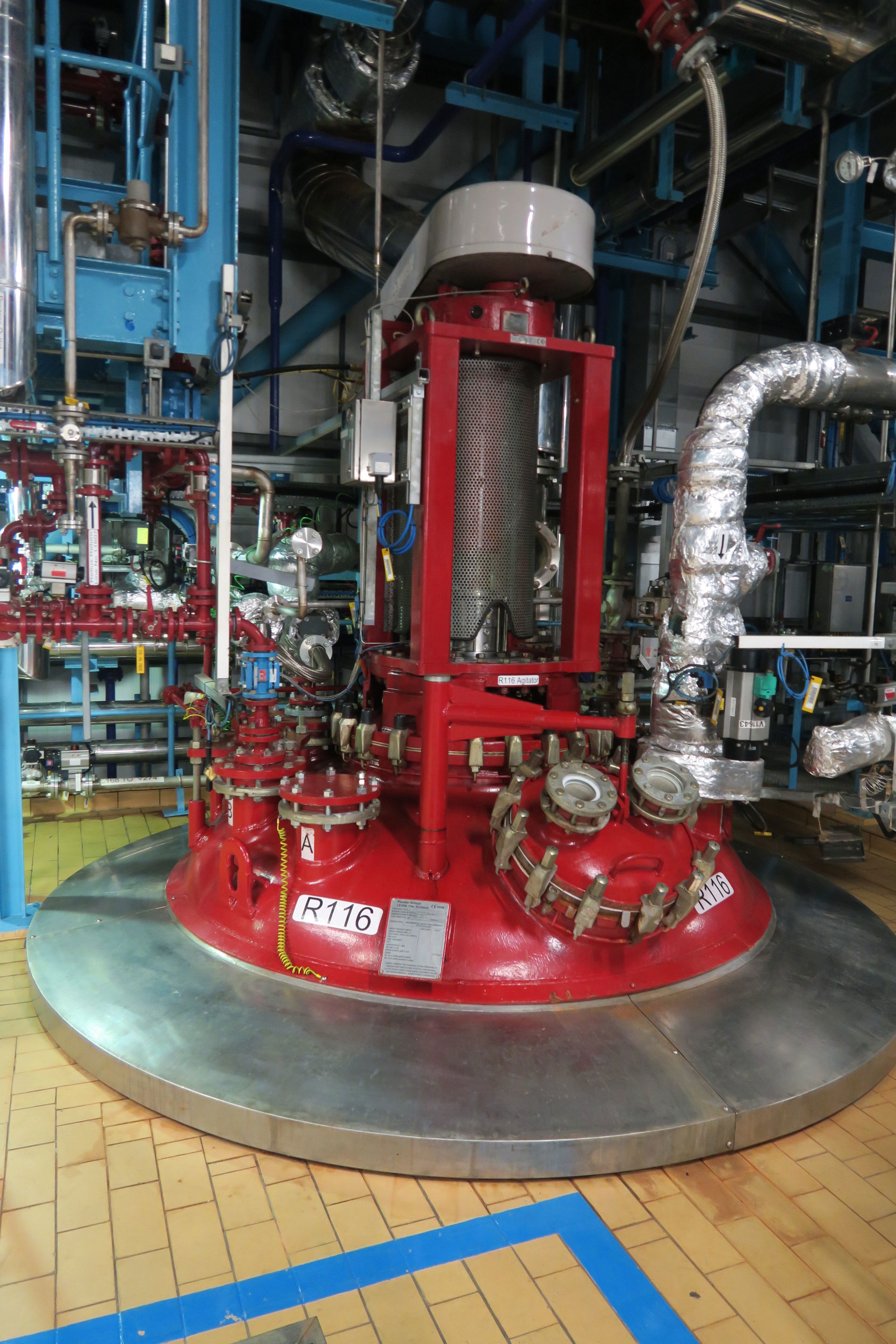

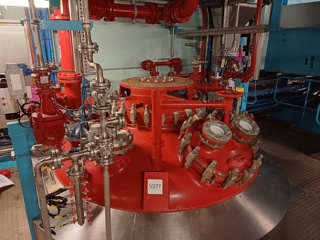

Glasslined Pfaudler CE10000 Batch-Type Agitated Reactor - IPP# 242639

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: CE10000

Condition: Used

Material: Glasslined

Capacity (Design): 11,750 L (3,100 gallons)

Internal Pressure: 6 bar (87 psi)

• 10000 liter working capacity, z
• design pressure internal -1/6 bar @ -29/200 degrees C (11768 liter),
• jacket -1/10 bar @ -29/200 degrees C (911 liter),
• glass type WWW 9125,
• design code: ASME VIII DIV 1 2004 annex Z and essential safety requirements of PED/97/23/EC,

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,350 mm (92.4 in). Straight Side Length: 1,950 mm (76.2 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: CE10000

Condition: Used

Material: Glasslined

Capacity (Design): 11,750 L (3,100 gallons)

Internal Pressure: 6 bar (87 psi)

• 10000 liter working capacity,
• design pressure internal -1/6 barg @ -29/200 degrees C (11768 liter),
• jacket -1/10 bar @ -29/200 degrees C (911 liter),
• IP55 EEx de IIC T4 ATEX motor,
• shaft speed 9-90 rpm,
• CE 0038,
• TUV,
• glass type WWW9125,
• design code: ASME VIII DIV 1, 2004 ANNEXE Z and essential safety requirements of PED/97/23/EC

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,350 mm (92.5 in). Straight Side Length: 1,950 mm (76.2 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: CE10000

Condition: Used

Material: Glasslined

Capacity (Design): 11,750 L (3,100 gallons)

Internal Pressure: 6 bar (87 psi)

• 10000 liter working capacity,
• design pressure internal -1/6 bar @ -29/200 degrees C (11768 liter),
• jacket -1/10 bar @ -29/200 degrees C (911 liter),
• EEx de IICT4 motor,
• Hastelloy C22 axial flow turbine on shaft,
• CE0038,
• glass type WWW9125,
• design code: ASME VIII DIV 1, 2004 ANNEXE Z and essential safety requirements of PED/97/23/EC,

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,350 mm (92.5 in). Straight Side Length: 1,950 mm (76.2 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: CE10000

Condition: Used

Material: Glasslined

Capacity (Design): 10,000 L (2,650 gallons)

Internal Pressure: 6.6 bar (95.7 psi)

• design pressure internal -1/6.6 bar @ -29/185 degrees C,
• jacket -1/10 bar @ -29/185 degrees C,
• glass type 9129 white glass,
• shaft speed 10-90 rpm,
• EExd IIB T4 IP55 motor,
• (2) sets of 4-blade pitched cryolock paddles on shaft,
• gas type double mechanical seal,
• white glass body and dip tub, blue glass shaft and baffle
• design code: ASME VIII DIV I 1989 with addenda up to and including winter 1990,

Internal Full Vacuum: Yes. Internal Temperature: 185 °C (365 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 185 °C (365 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,400 mm (94.5 in). Straight Side Length: 1,950 mm (76.4 in). Support Type: Lugs.
