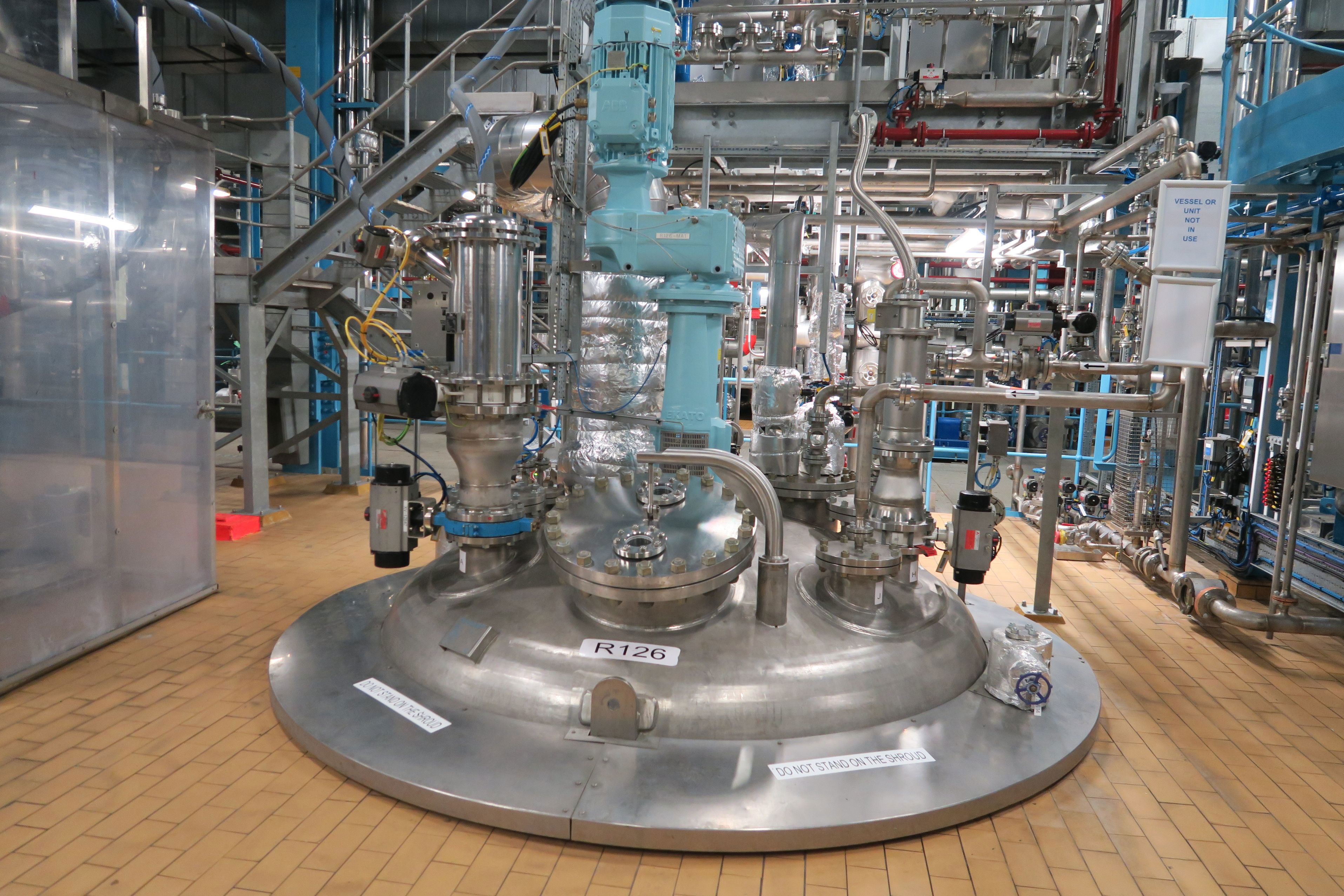

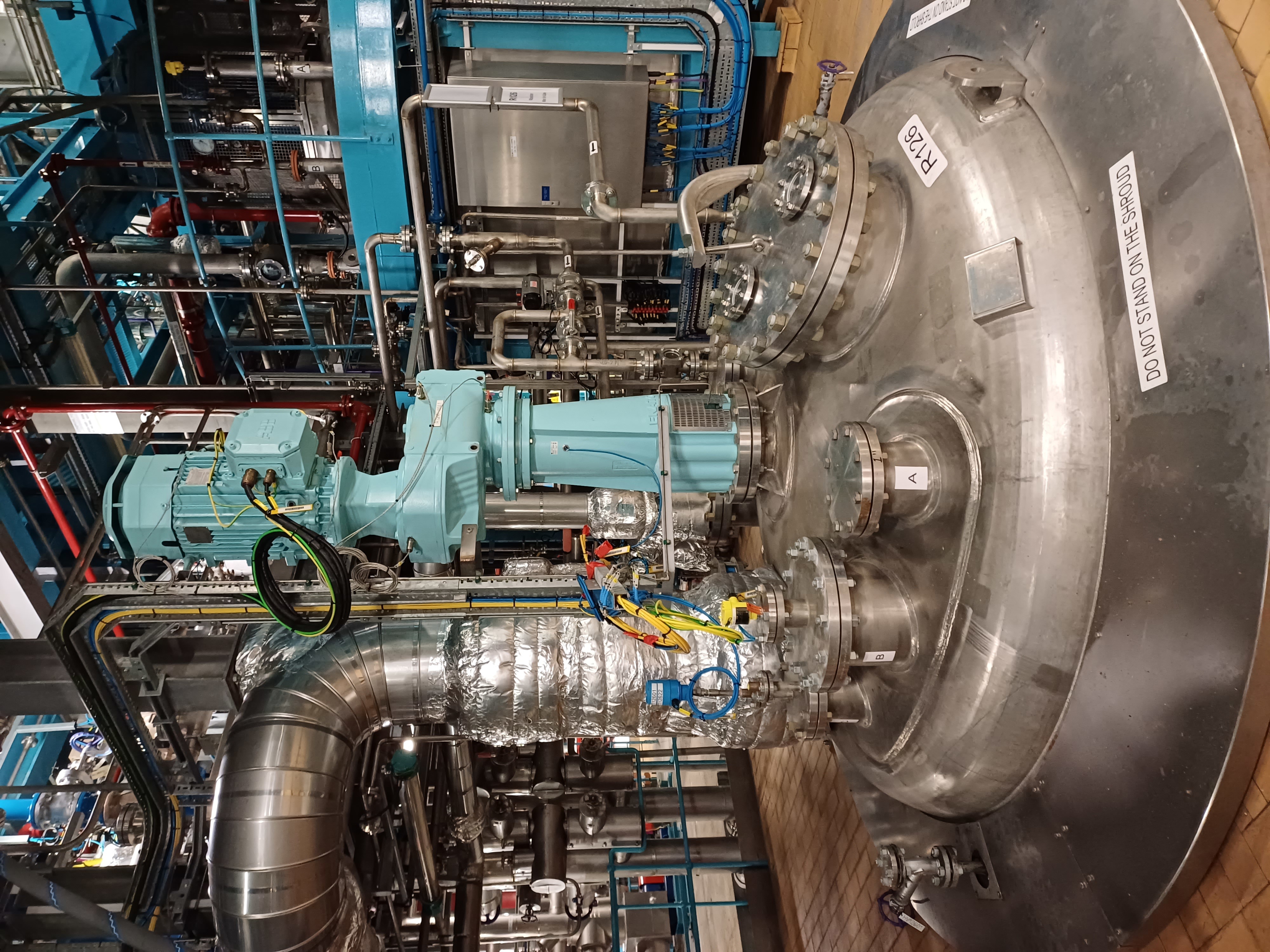

Stainless Steel 316L Sinclair Stainless Fabrications Ltd Batch-Type Agitated Reactor - IPP# 242661

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Sinclair Stainless Fabrications LTD.

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 7,850 L (2,100 gallons)

Internal Pressure: 3.5 bar (50.8 psi)

• 6300 liter working capacity,
• design pressure 3.5 bar + full vacuum @ -25/185 degrees C (7870 liter),
• jacket -1/6 barg @ -25/185 degrees C,
• design code: PD5500. 2006. module G. gas group 1, CE 0878,

(1) 10m3/hr @ 35m head centrifugal pump, manufactured by CP Pumpen Ag, type MKP 40-25-160, serial #07-00339/55729, 173mm diameter impellor, 2930 rpm, 20/30 degrees C,

Internal Full Vacuum: Yes. Internal Temperature: 185 °C (365 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 185 °C (365 °F). Jacket Material of Construction: Stainless Steel 316. Orientation: Vertical. Diameter: 2,000 mm (78.7 in). Straight Side Length: 2,000 mm (78.7 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Sinclair Stainless Fabrications LTD.

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 12,300 L (3,250 gallons)

Internal Pressure: 6 bar (87 psi)

• working capacity 10000 liter
• design pressure internal 6 bar + full vacuum @ -29/185 degrees C (12300 liter),
• jacket 10 bar + full vacuum @ -29/185 degrees C,
• driven by 11/12.5kw 3/50-60/690-400/660-380/415-440 volt, 1470/1466/1473/1766 rpm IP55 EExd IIB T4 ATEX motor,
• 2-sets of 2-blade pitched Viscoprop paddles and a bottom 2-blade impellor,
• CE 0878,
• design code: PD5500-2006-MODULE G-GAS GROUP 1

Internal Full Vacuum: Yes. Internal Temperature: 185 °C (365 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 185 °C (365 °F). Jacket Material of Construction: Stainless Steel 316L. Orientation: Vertical. Agitation: Yes. Diameter: 2,400 mm (94.5 in). Straight Side Length: 1,950 mm (76.8 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Sinclair Stainless Fabrications LTD.

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 19,900 L (5,250 gallons)

Internal Pressure: 6 bar (87 psi)

• 16000 liter working capacity,
• CE0878,
• design pressure internal 6 bar + full vacuum @ -29/185 degrees C (19910 liter),
• jacket 10 bar + full vacuum @ -20/185 degrees C
• driven by 22kw 3/50/415 volt 1471 rpm IP55 EExd IIB T4 ATEX motor via a 29.49:1 ratio gearbox,
• Anchor type with ribbon
• gas type mechanical seal,
• 316L stainless steel limpet coil jacket on straight side and bottom dish,
• design code: PD5500-2000-MODULE G-GAS GROUP 1,

Internal Full Vacuum: Yes. Internal Temperature: 185 °C (365 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 185 °C (365 °F). Jacket Material of Construction: Stainless Steel 316L. Orientation: Vertical. Agitation: Yes. Diameter: 2,800 mm (110.2 in). Straight Side Length: 2,500 mm (98.4 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Sinclair Stainless Fabrications LTD.

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 5,500 L (1,450 gallons)

Internal Pressure: 6 bar (87 psi)

working capacity 4000 liter, reactor/crystalliser, design pressure internal 6 bar + full vacuum @ -29/180 degrees C (5510 liter), jacket 10 bar + full vacuum @ -20/180 degrees C, motor is IP55 EExd IIB T4 ATEX, 2-sets of 2-blade pitched Intermig paddles with a bottom 2-blade impellor,

Design code: PD5500-2000 Module G Group 2 gasses CAT 2, CE0878,

Internal Full Vacuum: Yes. Internal Temperature: 180 °C (356 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 180 °C (356 °F). Jacket Material of Construction: Stainless Steel 316L. Orientation: Vertical. Agitation: Yes. Diameter: 1,800 mm (70.9 in). Straight Side Length: 1,600 mm (63 in). Support Type: Lugs.
