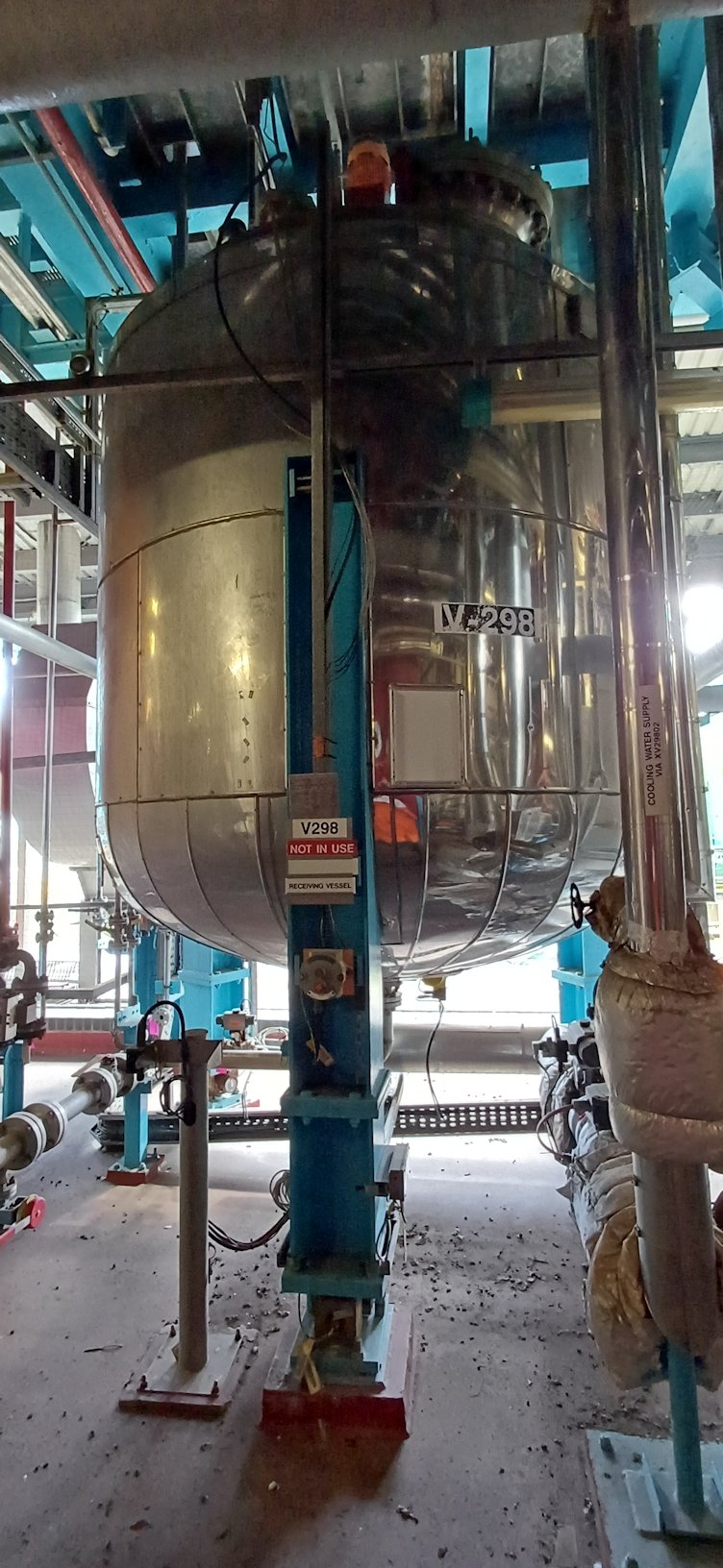

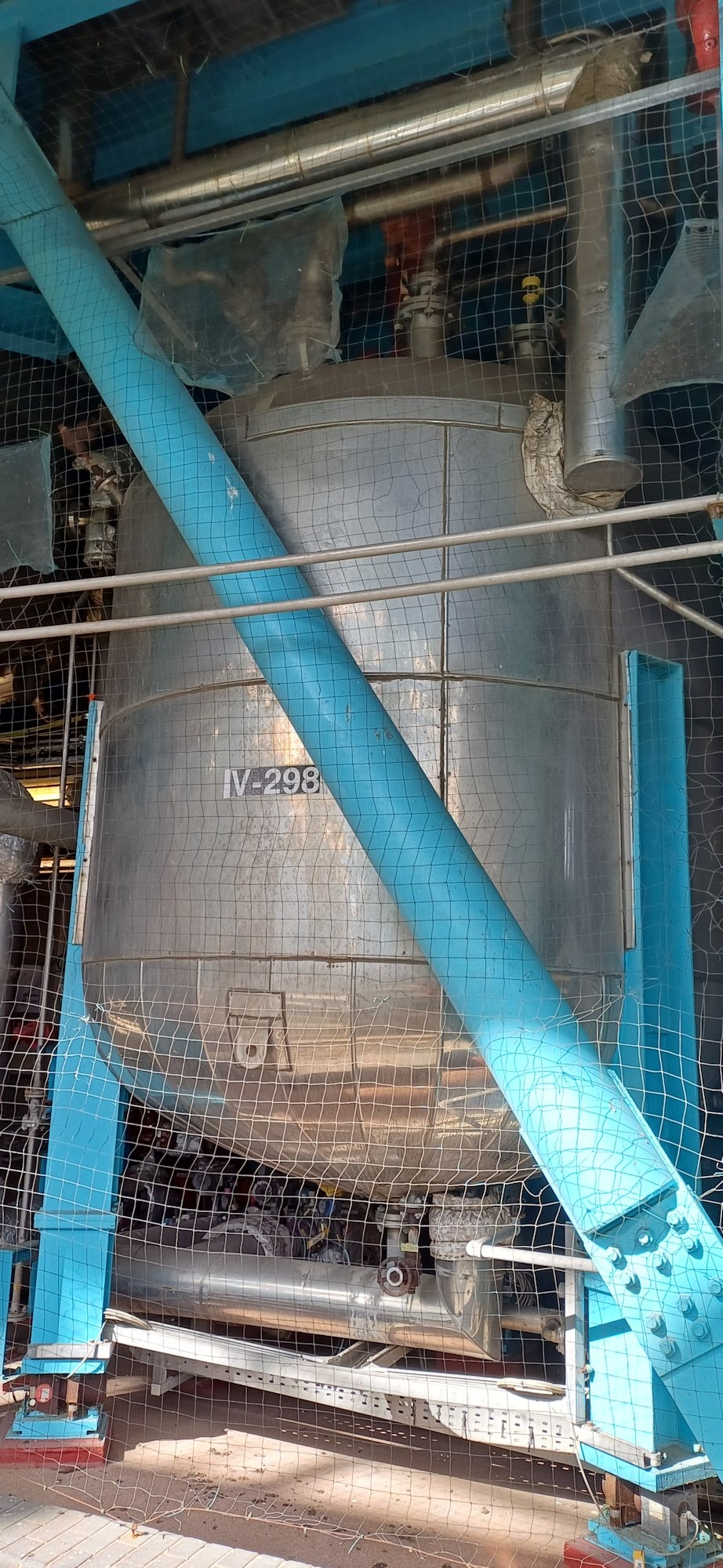

Stainless Steel 316 Isaac Webster & Sons Ltd Reactor - IPP# 242837

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 757 L (200 gallons)

Jacket Material of Construction: Carbon Steel

• With Lightnin, 1.5 hp mixer.
• 1" jacket supply and return lines.

Orientation: Vertical. Diameter: 965 mm (38 in). Straight Side Length: 914 mm (36 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Cream City Boiler

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 2,850 L (750 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Top Head 9/16", Bottom Head 1 3/16"; CS jacket 9/16" thick.Top mounted Lightnin drive, Model 85-5-40, 9.33 to 1 ratio,Direct coupled to a 5 HP 3/60/230/460 volt 1765 rpm motor, 180 RPM output.(4) blade pitched paddle mid shaft, 4 blade flat turbine on bottom, (4) baffles on side wall.

Internal Temperature: 148.9 °C (300 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,700 mm (66 in). Straight Side Length: 1,450 mm (57 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Hanag AG

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 565 L (149.3 gallons)

Internal Pressure: 6 bar (87 psi)

Total liter capacity is 565, 800 mm diameter x 975 mm tangent to tangent,

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 13 bar (188.5 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Stainless Steel 304. Body Only: Yes. Diameter: 800 mm (31.5 in). Straight Side Length: 975 mm (38.4 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 4,000 L (1,050 gallons)

Body Only: Yes

s/steel half pipe coil jacket on lower half of straight side only, 3-internal baffles on sidewall,

Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight Side Length: 1,900 mm (74.8 in). Support Type: Lugs.
