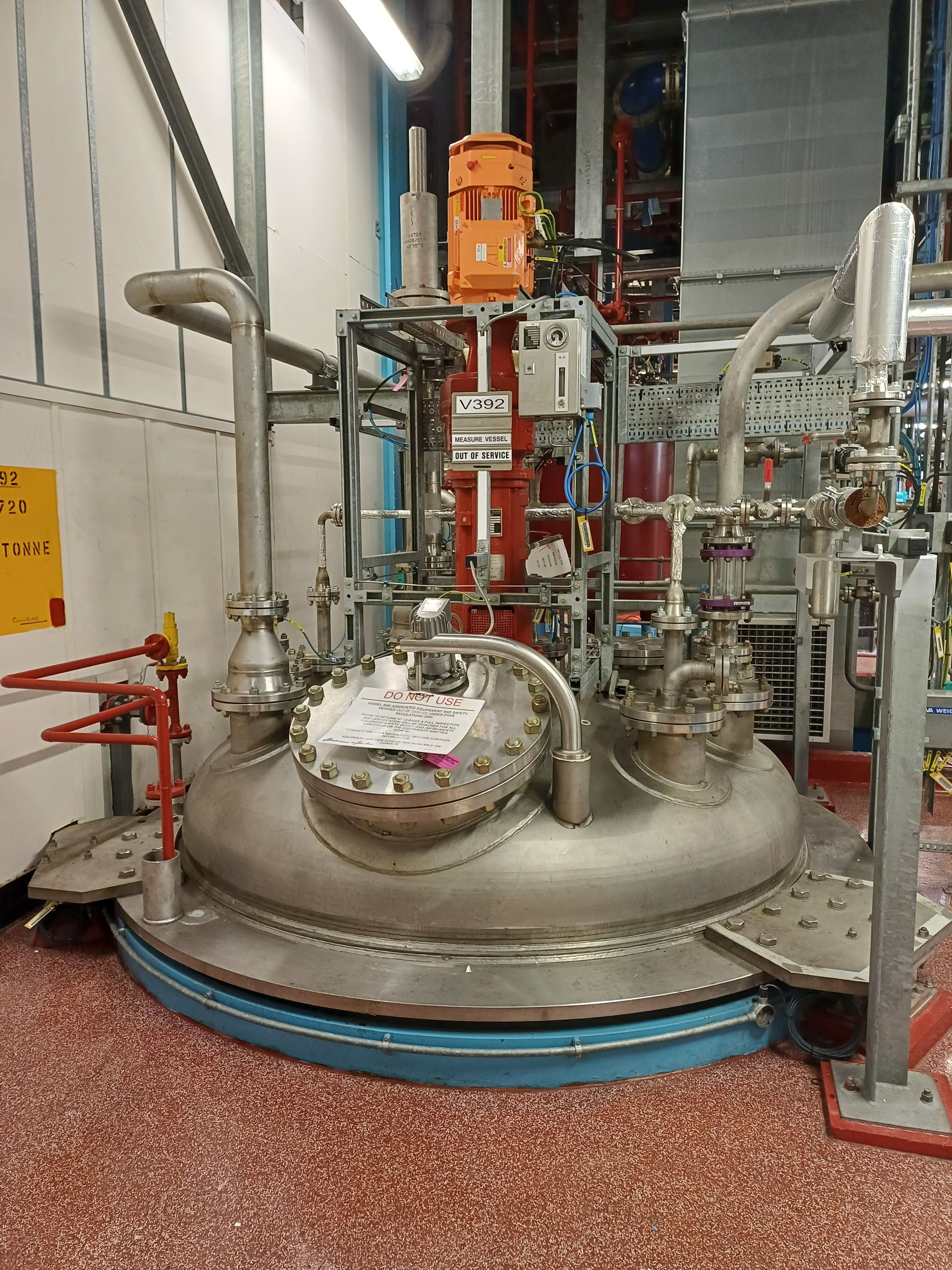

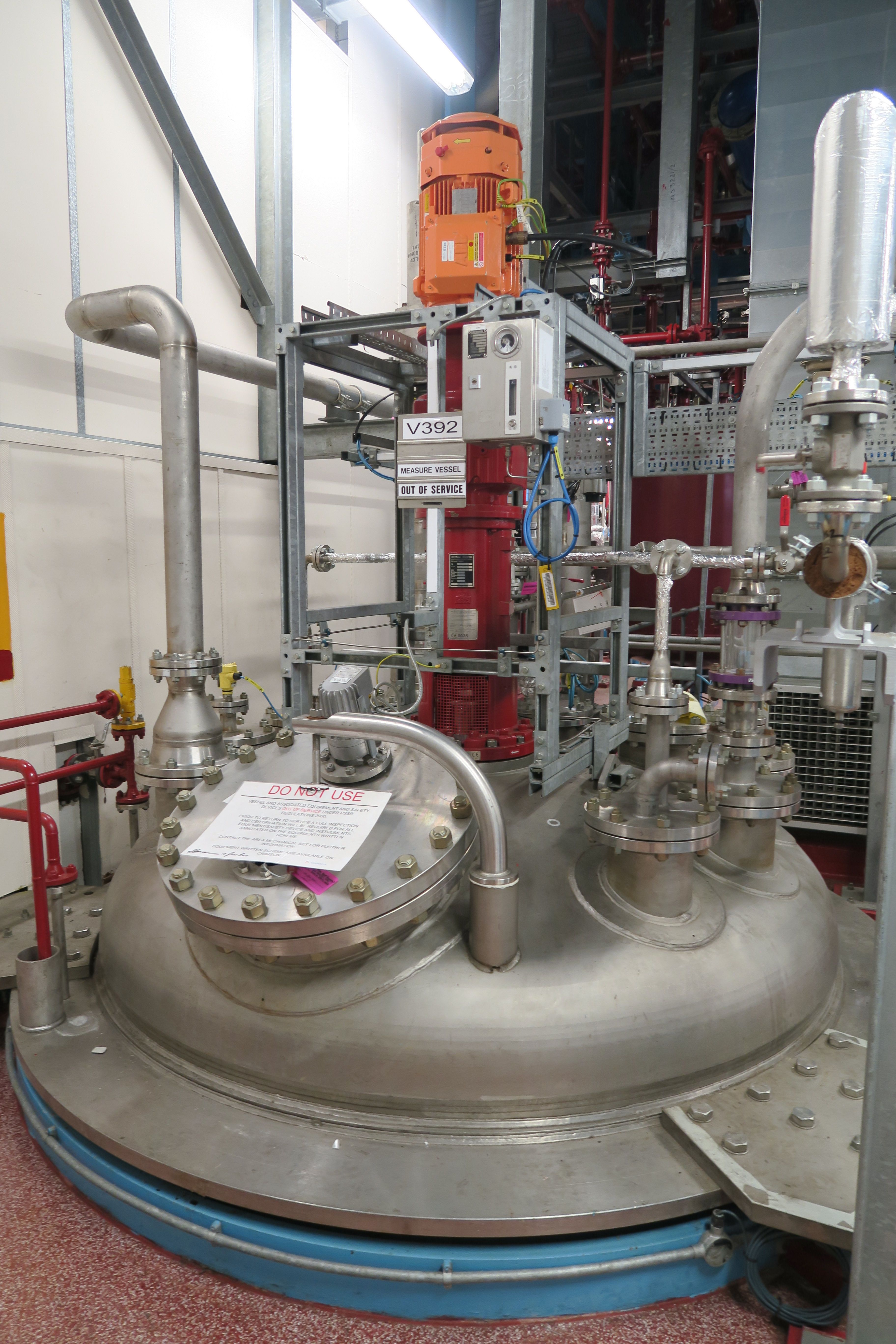

Name: 11,350 L (3,000 gallons) Stainless Steel 316 Batch-Type Agitated Reactor
Brand: Sinclair stainless fabrications
SKU: 243347

Overview

Type:

Reactor

Subtype:

Batch-Type Agitated

Manufacturer:

Sinclair stainless fabrications

Condition:

Used

Material:

Stainless Steel 316

Capacity (Design):

11,350 L (3,000 gallons)

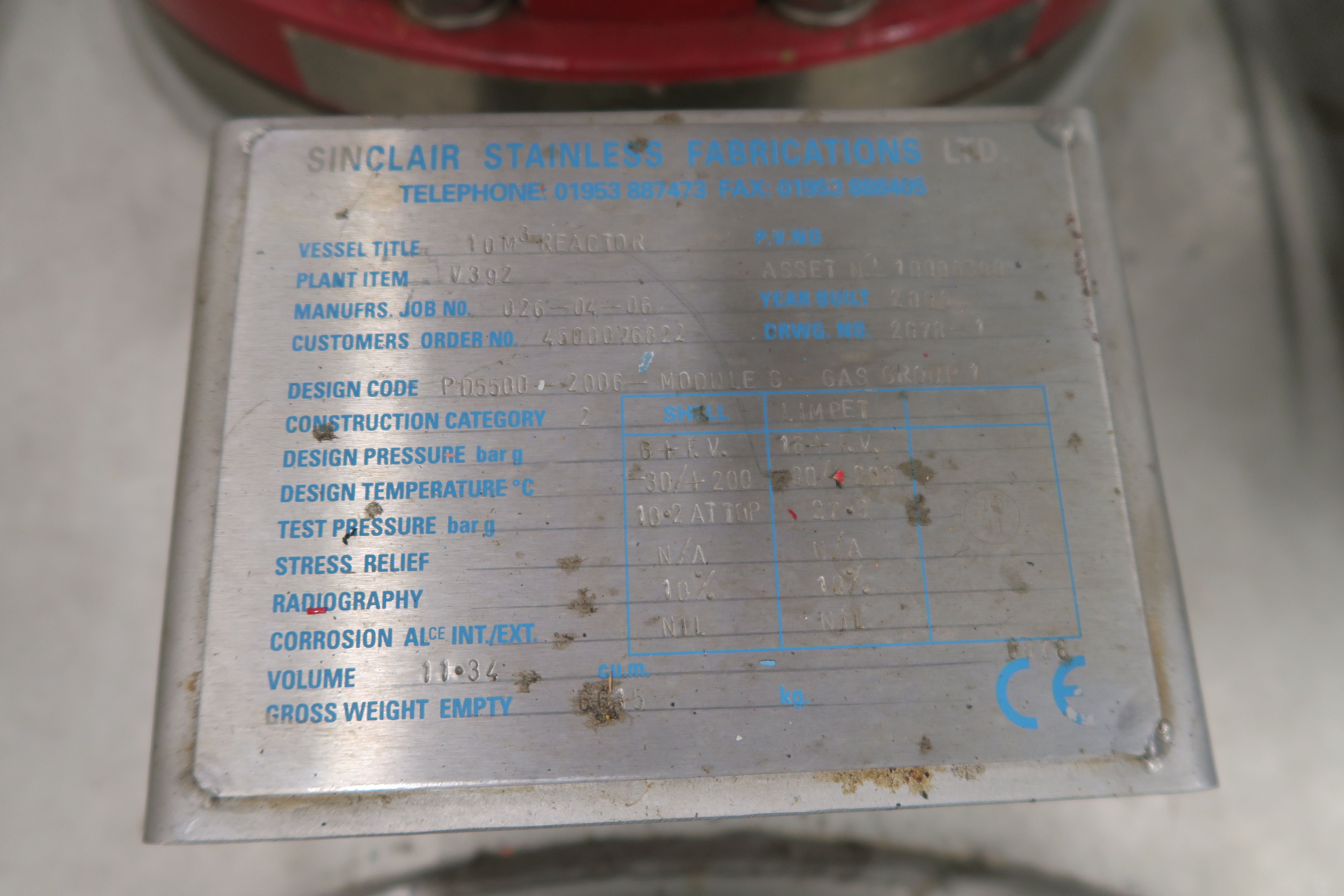

Pressure Vessel

Internal Pressure:

6 bar (87 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

200 °C (392 °F)

Jacket/Internal Coil

Jacket Pressure:

16 bar (232.1 psi)

Jacket Temperature:

200 °C (392 °F)

Jacket Type:

Half Pipe/Limpet

Jacket Material of Construction:

Stainless Steel 316

Agitation System

Agitation:

Yes

Agitation Seal Type:

Mechanical

Agitator Details:

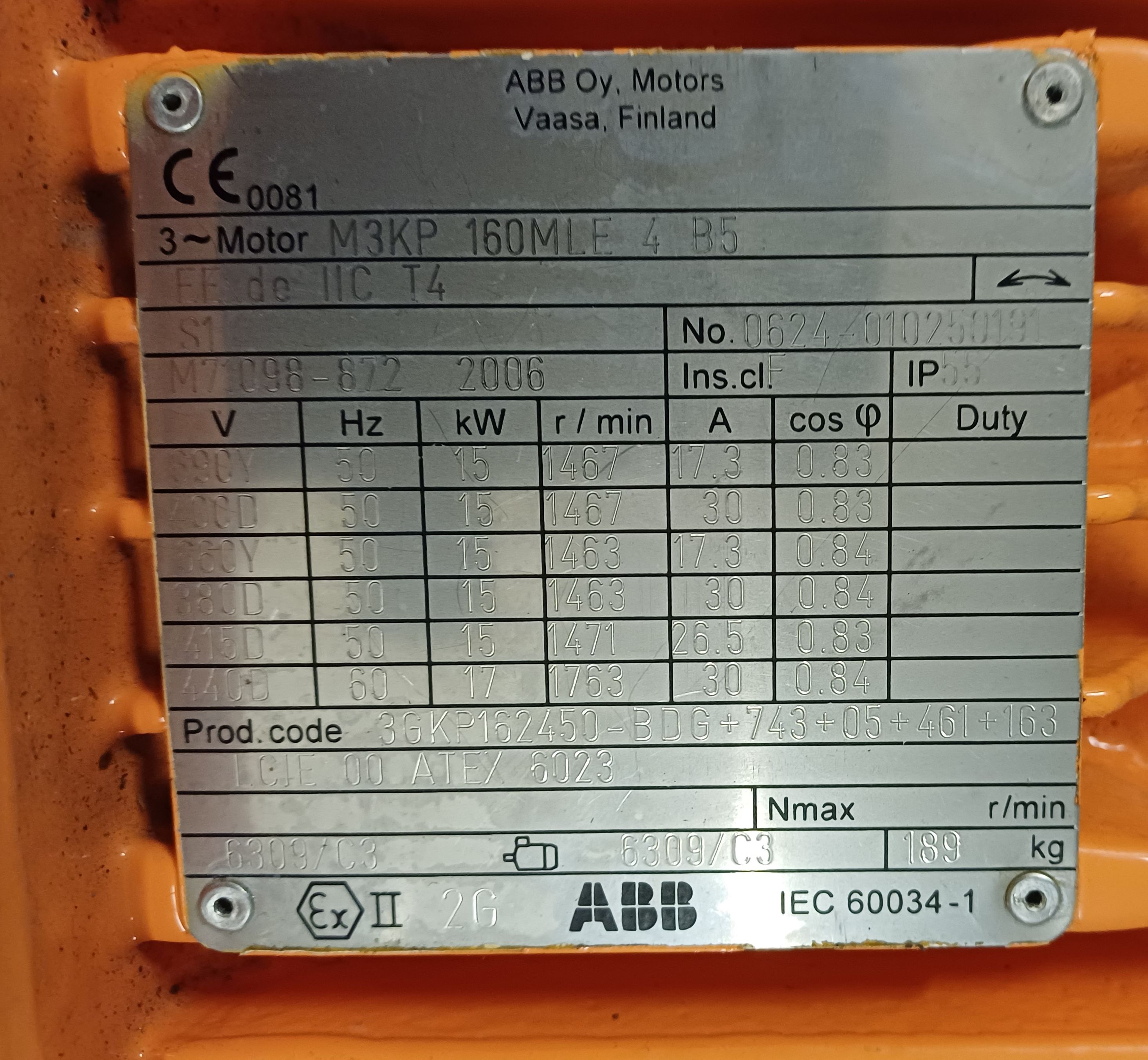

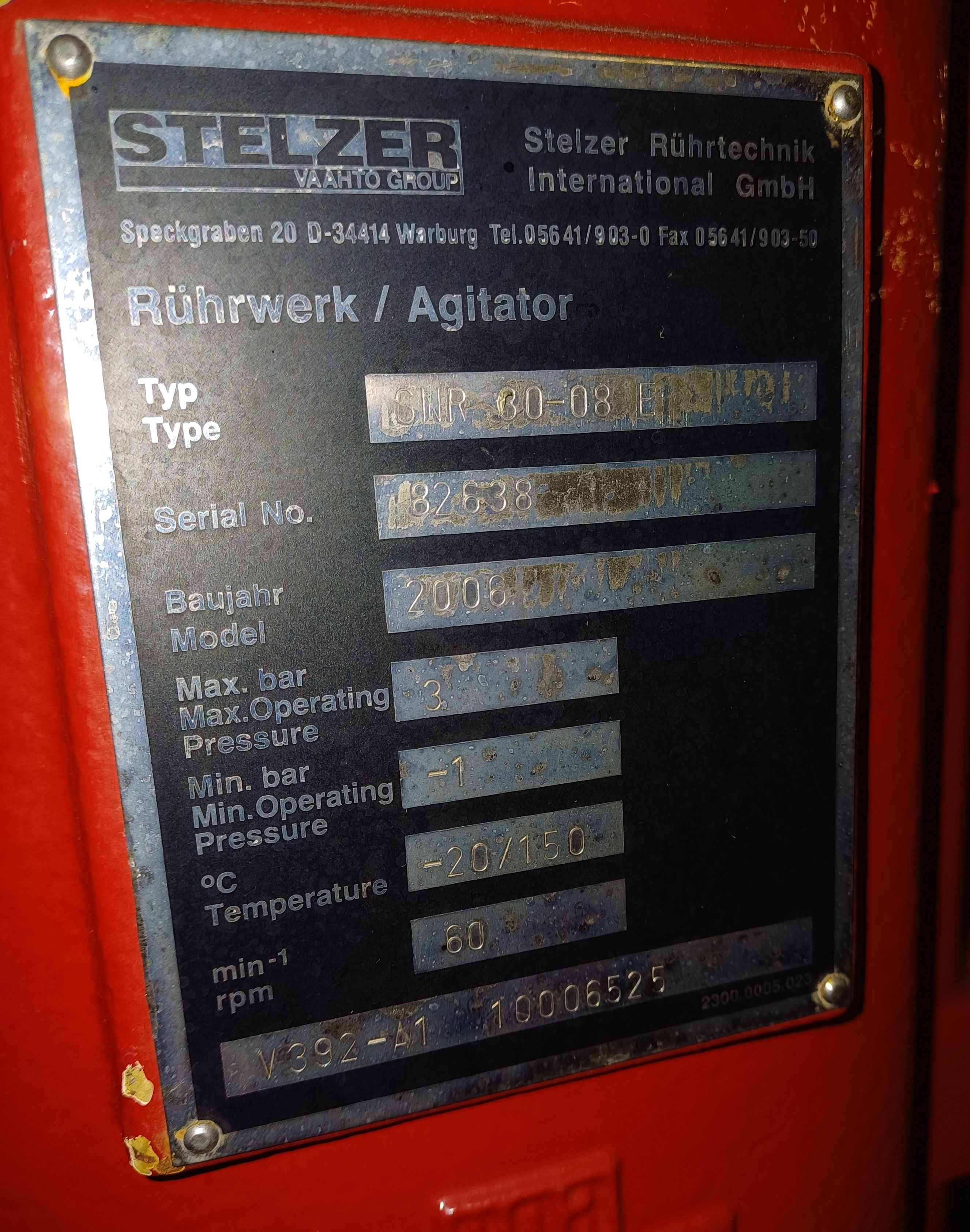

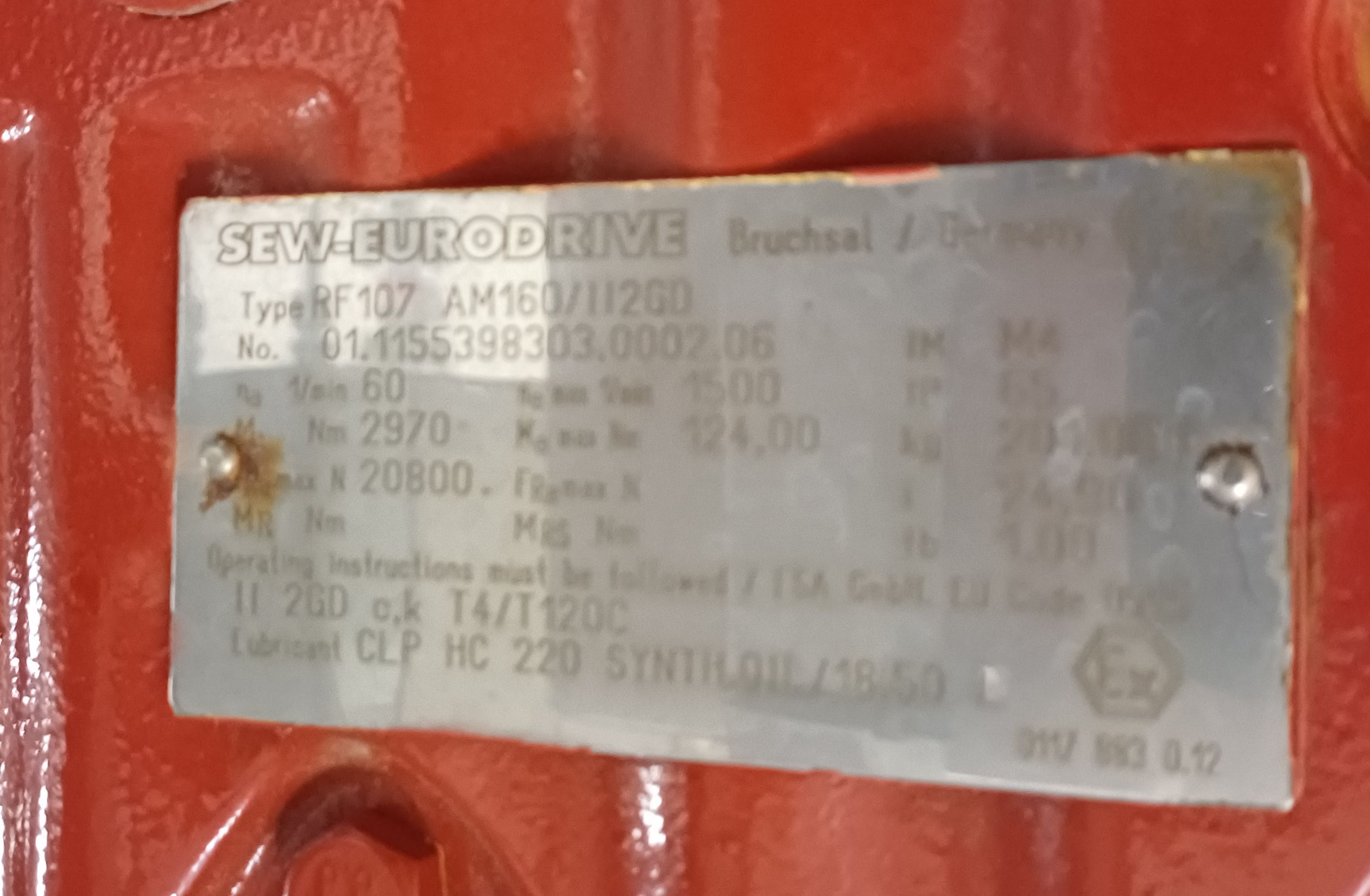

Stelzer type SNR 30-08E agitator drive, driven by 15/17kW, 3/50-60/690-400/660-380/415-440 volt 1467/1463/1471/1763 rpm IP55 EExde II CT4 ATEX motor via a 24.90:1 ratio reduction gearbox, 4-blade axial flow turbine on shaft, gas type mechanical

Motor Power:

17 kW (22.8 HP)

Dimensions

Diameter:

2,400 mm (94.5 in)

Straight Side Length:

1,950 mm (76.3 in)

Heads

Top Head Type:

Dish

Bottom Head Type:

Dish

Other Specifications

Manway:

Yes

Support Type:

Lugs

Inlets & Outlets

Nozzle Schedule:

opemings top: 1-600mm manway, 2-300mm, 7-200mm, 2-25mm (jacket), straight side jacket: 2-50mm, 1-25mm, bottom: 1-150mm, 1-50mm (jacket)

Stainless Steel 316 Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 757 L (200 gallons)

Jacket Material of Construction: Carbon Steel

With Lightnin, 1.5 hp mixer.
1" jacket supply and return lines.

Orientation: Vertical. Diameter: 965 mm (38 in). Straight Side Length: 914 mm (36 in). Support Type: Legs.

Stainless Steel 316 Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Cream City Boiler

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 2,850 L (750 gallons)

Internal Pressure: 10.3 bar (150 psi)

Top Head 9/16", Bottom Head 1 3/16"; CS jacket 9/16" thick.Top mounted Lightnin drive, Model 85-5-40, 9.33 to 1 ratio,Direct coupled to a 5 HP 3/60/230/460 volt 1765 rpm motor, 180 RPM output.(4) blade pitched paddle mid shaft, 4 blade flat turbine on bottom, (4) baffles on side wall.

Internal Temperature: 148.9 °C (300 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,700 mm (66 in). Straight Side Length: 1,450 mm (57 in). Support Type: Lugs.

565 L (149.3 gallons) Stainless Steel 316 Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Hanag AG

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 565 L (149.3 gallons)

Internal Pressure: 6 bar (87 psi)

Total liter capacity is 565, 800 mm diameter x 975 mm tangent to tangent,

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 13 bar (188.5 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Stainless Steel 304. Body Only: Yes. Diameter: 800 mm (31.5 in). Straight Side Length: 975 mm (38.4 in). Support Type: Lugs.
