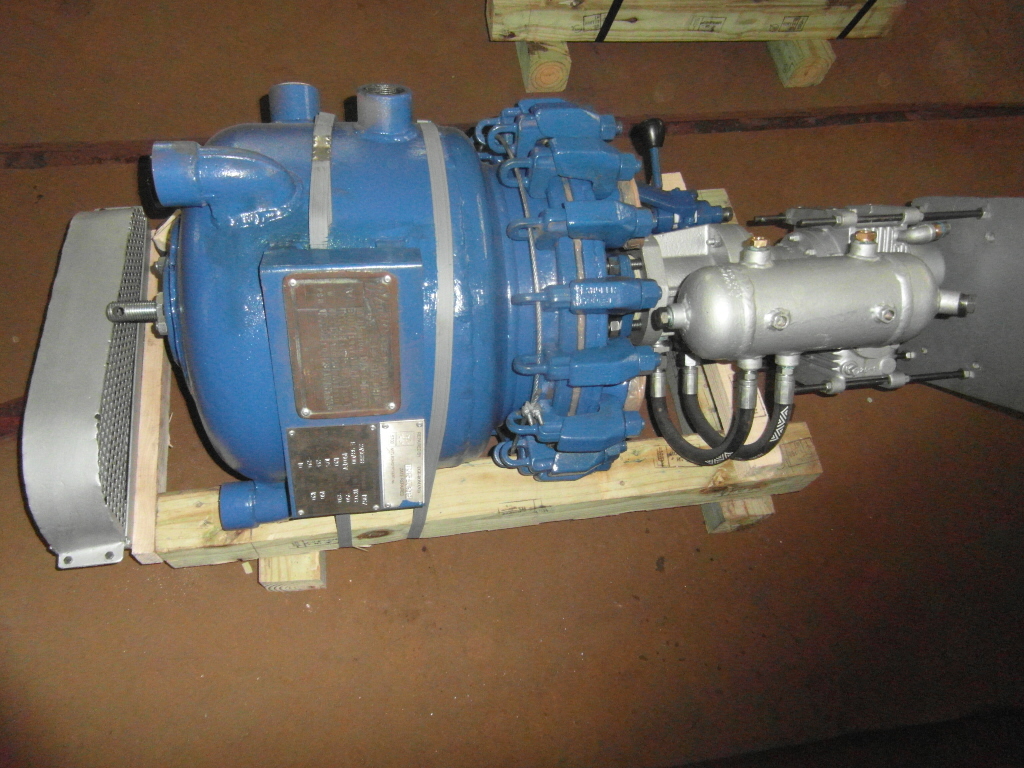

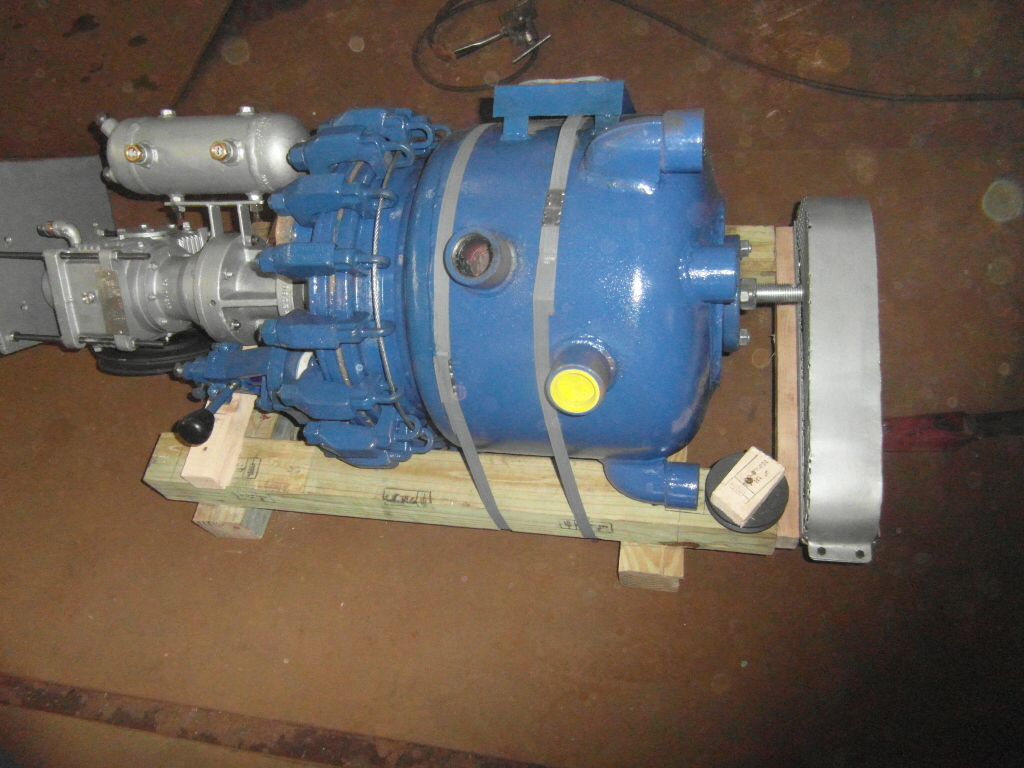

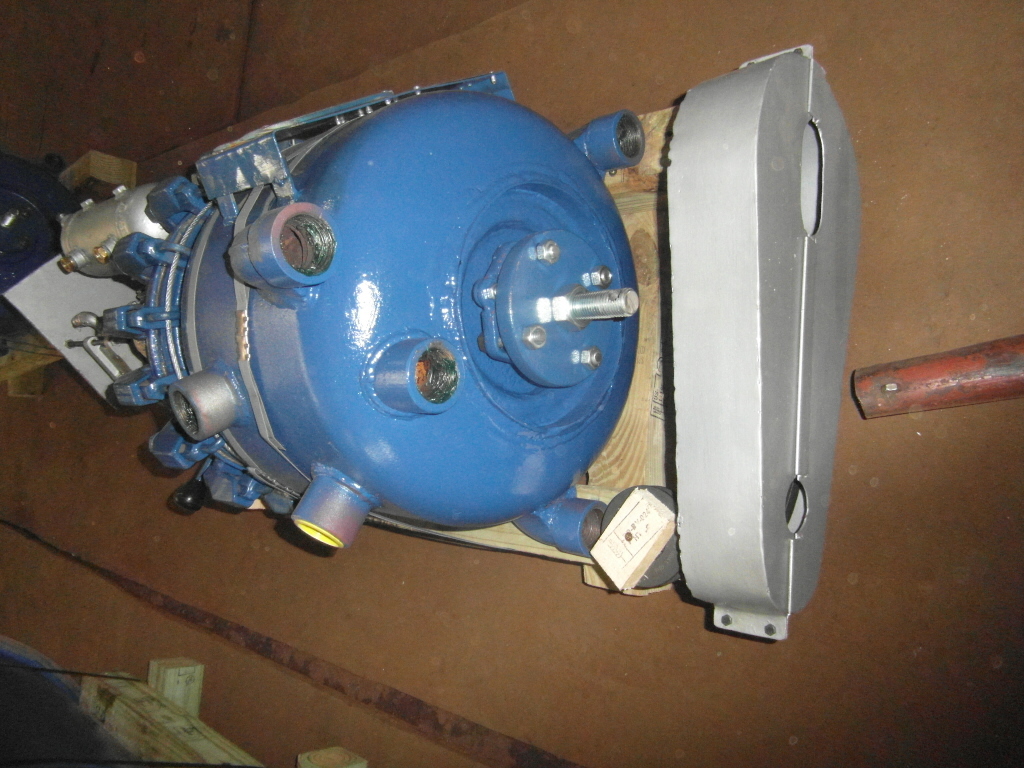

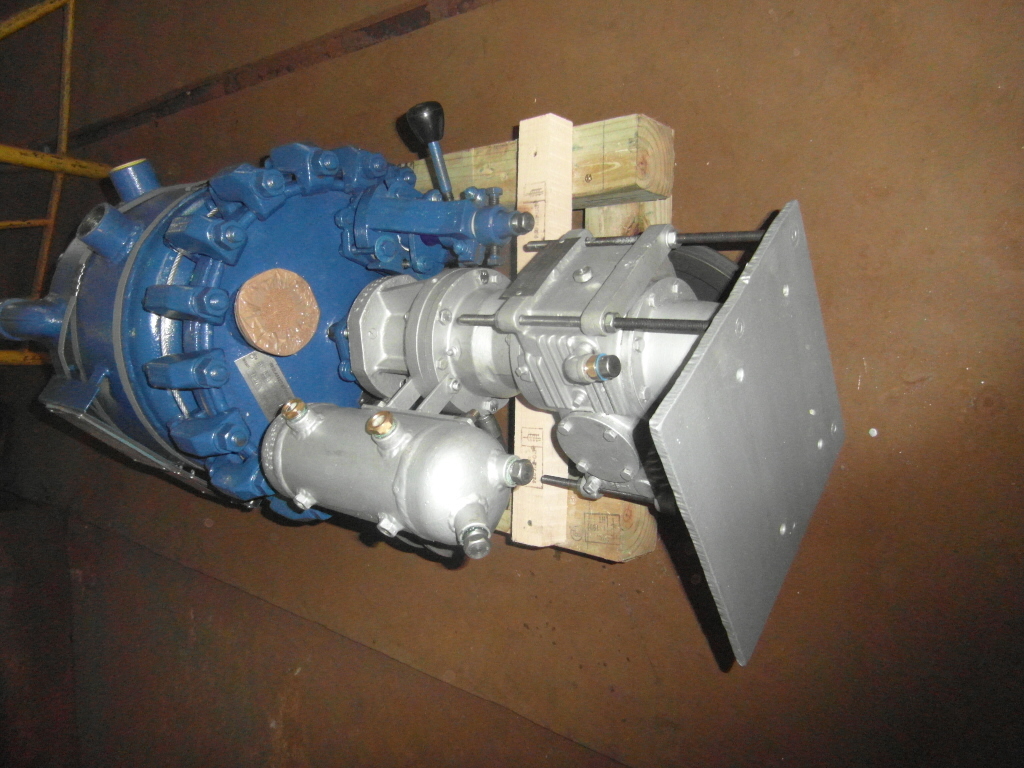

Name: Glasslined Pfaudler P Batch-Type Agitated Reactor
Brand: Pfaudler
SKU: 245688

Overview

Type:

Reactor

Subtype:

Batch-Type Agitated

Manufacturer:

Pfaudler

Model:

Condition:

Re-glassed

Material:

Glasslined

Capacity (Design):

37.9 L (10 gallons)

Internal Finish:

Glass Lined

Pressure Vessel

Internal Pressure:

10.3 bar (150 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

176.7 °C (350 °F)

Jacket/Internal Coil

Jacket Pressure:

8.3 bar (120 psi)

Jacket Temperature:

176.7 °C (350 °F)

Jacket Type:

Standard

Jacket Material of Construction:

Carbon Steel

Dimensions

Orientation:

Vertical

Diameter:

355.6 mm (14 in)

Straight Side Length:

330.2 mm (13 in)

Agitation System

Agitation:

Yes

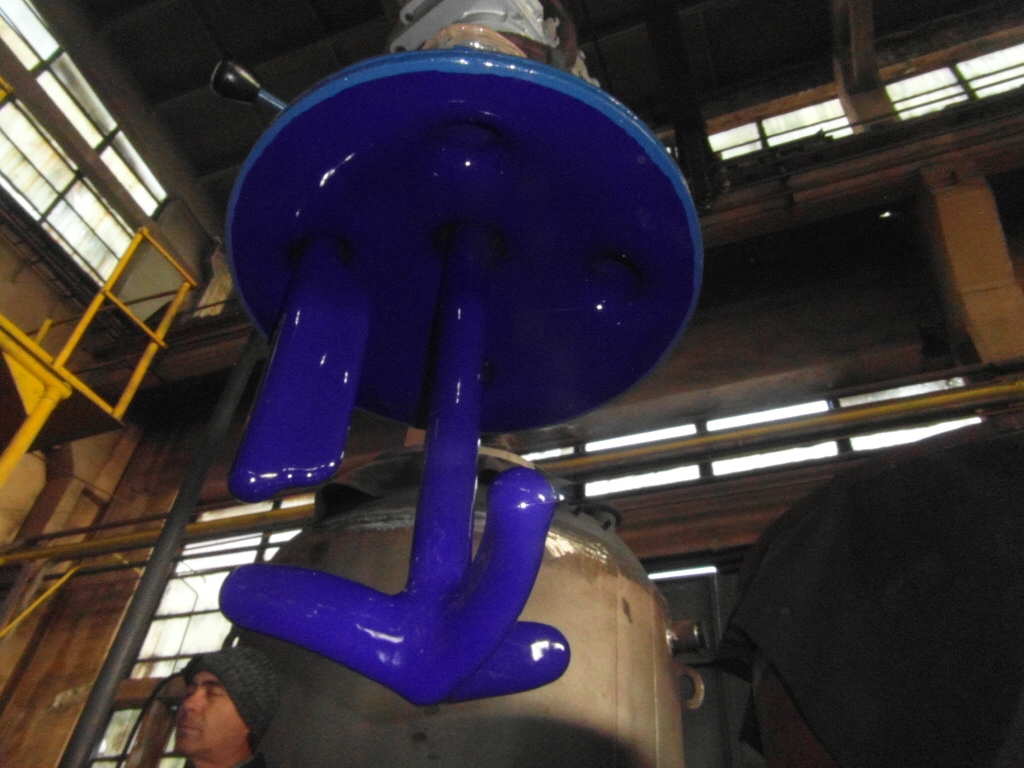

Impeller Type:

Retreat Curve

Agitation Seal Type:

Mechanical

Drive Power:

1.49 kW (2 HP)

Baffle Type:

Fin Baffle

Heads

Top Head Type:

Dish

Top Head Material:

Glasslined

Bottom Head Type:

Dish

Bottom Head Material:

Glasslined

Inlets & Outlets

Nozzle Schedule:

One 2 3/8", one 1.5", four 2"

Other Specifications

Support Type:

Legs

Glass Details

Glass Fire Polish:

Full Fire Polish (FF)

Glass Condition:

Very Clean (VC)

Additional Info:

No Motor, must add motor.
