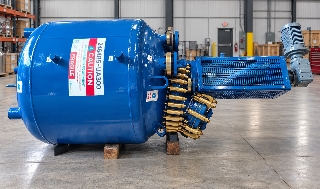

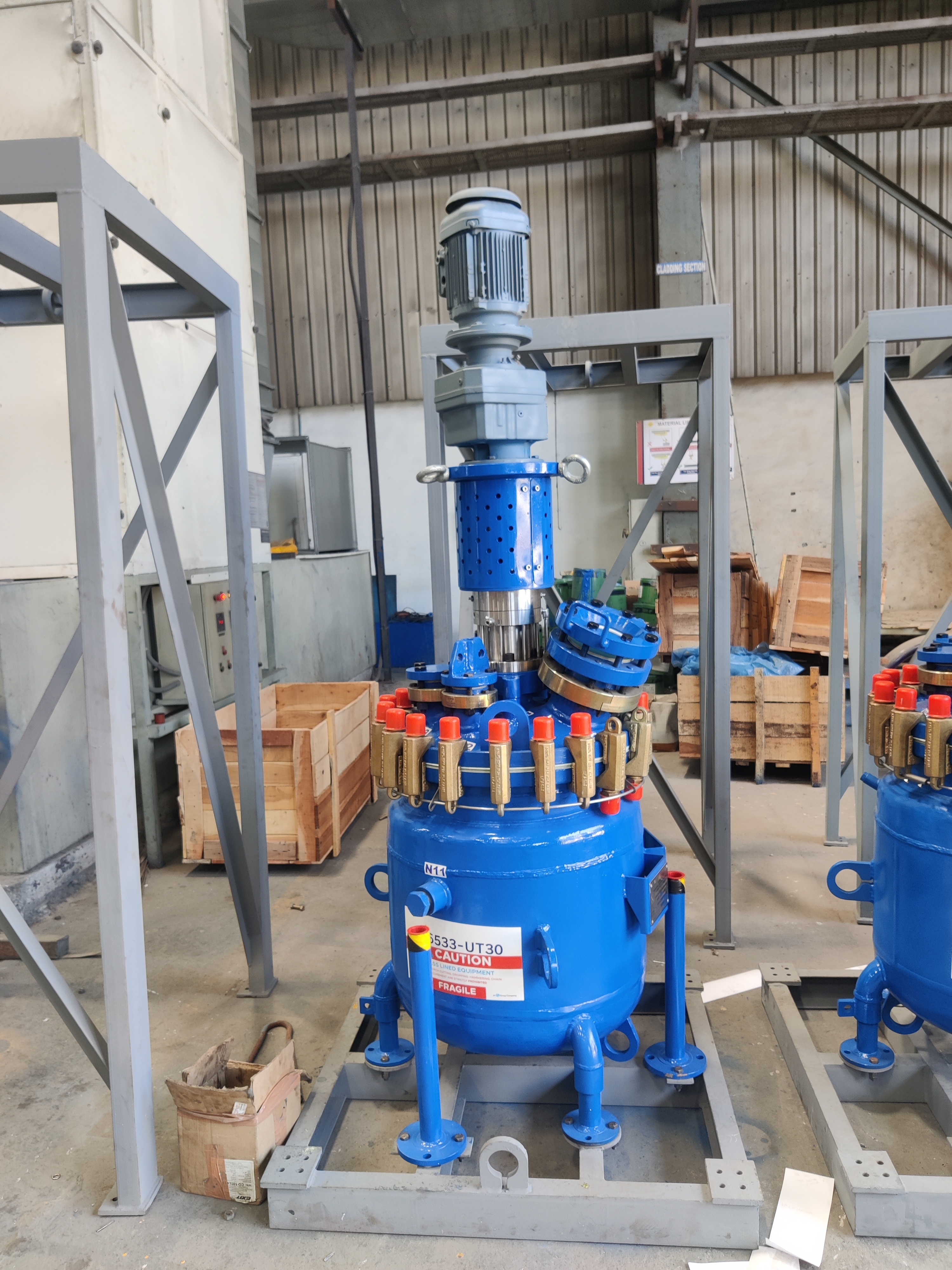

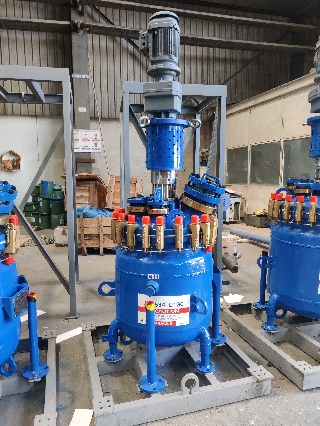

New Glasslined UGE UT-30 Reactor Assembly Batch-Type Agitated Reactor - IPP# 246533

  • New Glasslined UGE UT-30 Reactor Assembly Batch-Type Agitated Reactor - IPP# 246533 New Glasslined UGE UT-30 Reactor Assembly Batch-Type Agitated Reactor - IPP# 246533
  • New Glasslined UGE UT-30 Reactor Assembly Batch-Type Agitated Reactor - IPP# 246533
Overview
Reactor
Batch-Type Agitated
UGE
UT-30 Reactor Assembly
New
Glasslined
113.6 L (30 gallons)
Glass Lined
Pressure Vessel
10.3 bar (150 psi)
Yes
232.2 °C (450 °F)
Jacket/Internal Coil
8.6 bar (125 psi)
232.2 °C (450 °F)
Carbon Steel
Dimensions
Vertical
508 mm (20 in)
628.7 mm (24.8 in)

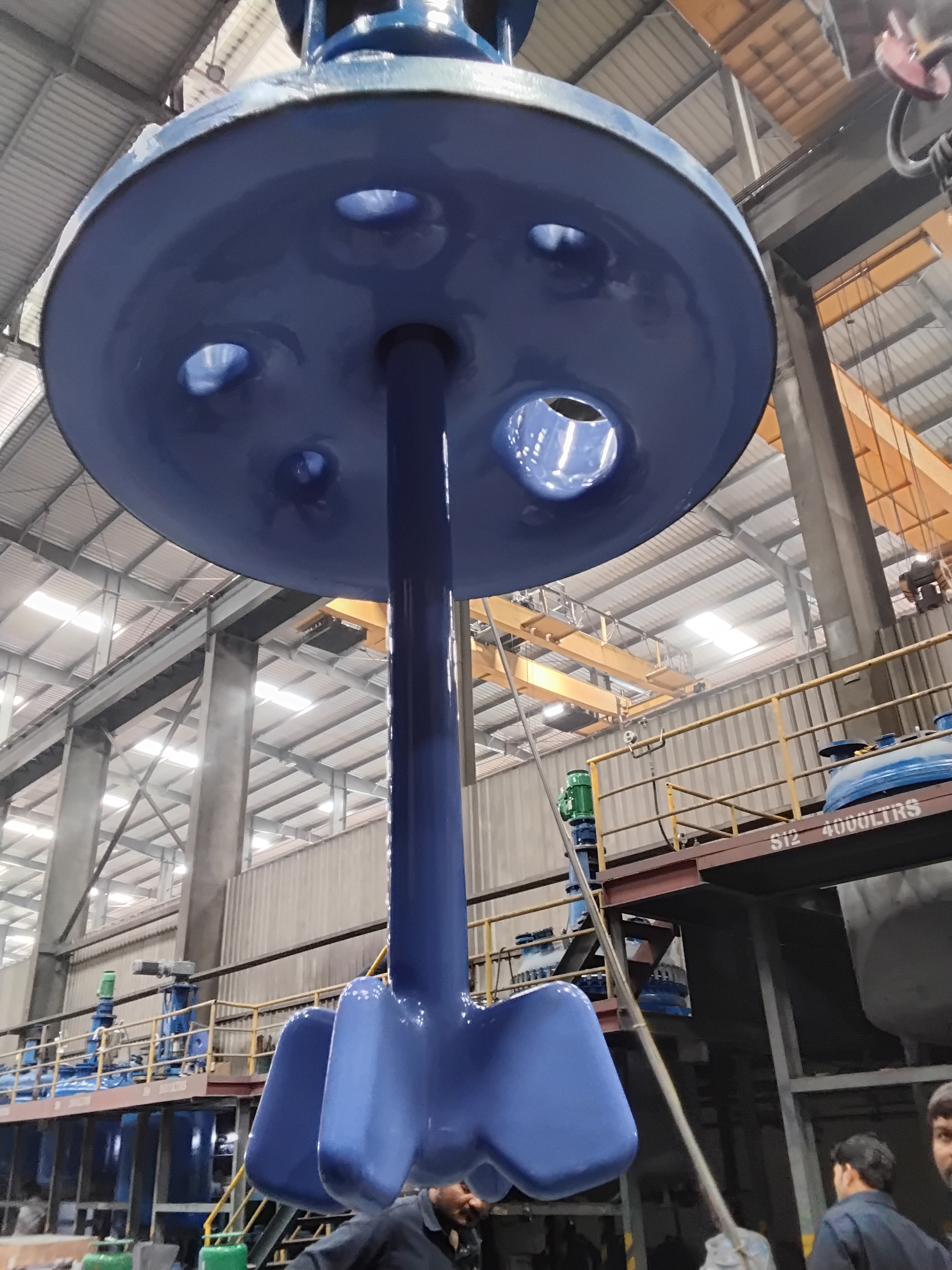

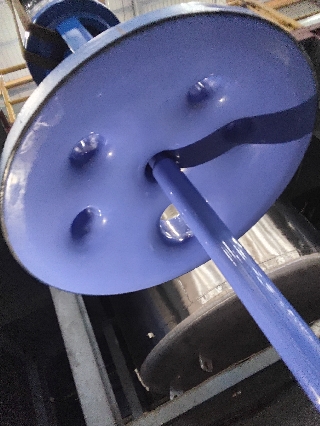

Agitation System
Yes
1.12 kW (1.5 HP)
Heads
Dish
Glasslined
Dish
Glasslined
Inlets & Outlets
4 3/8" hand hole, 2 3/8" agitation, 2" bottom outlet, Two 2" two 1.5"
Other Specifications
Legs

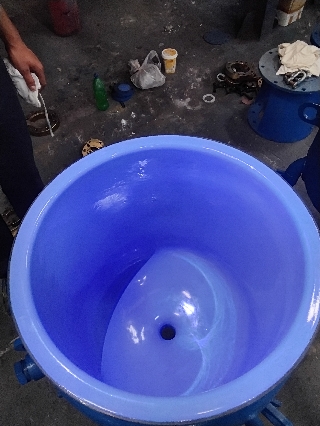

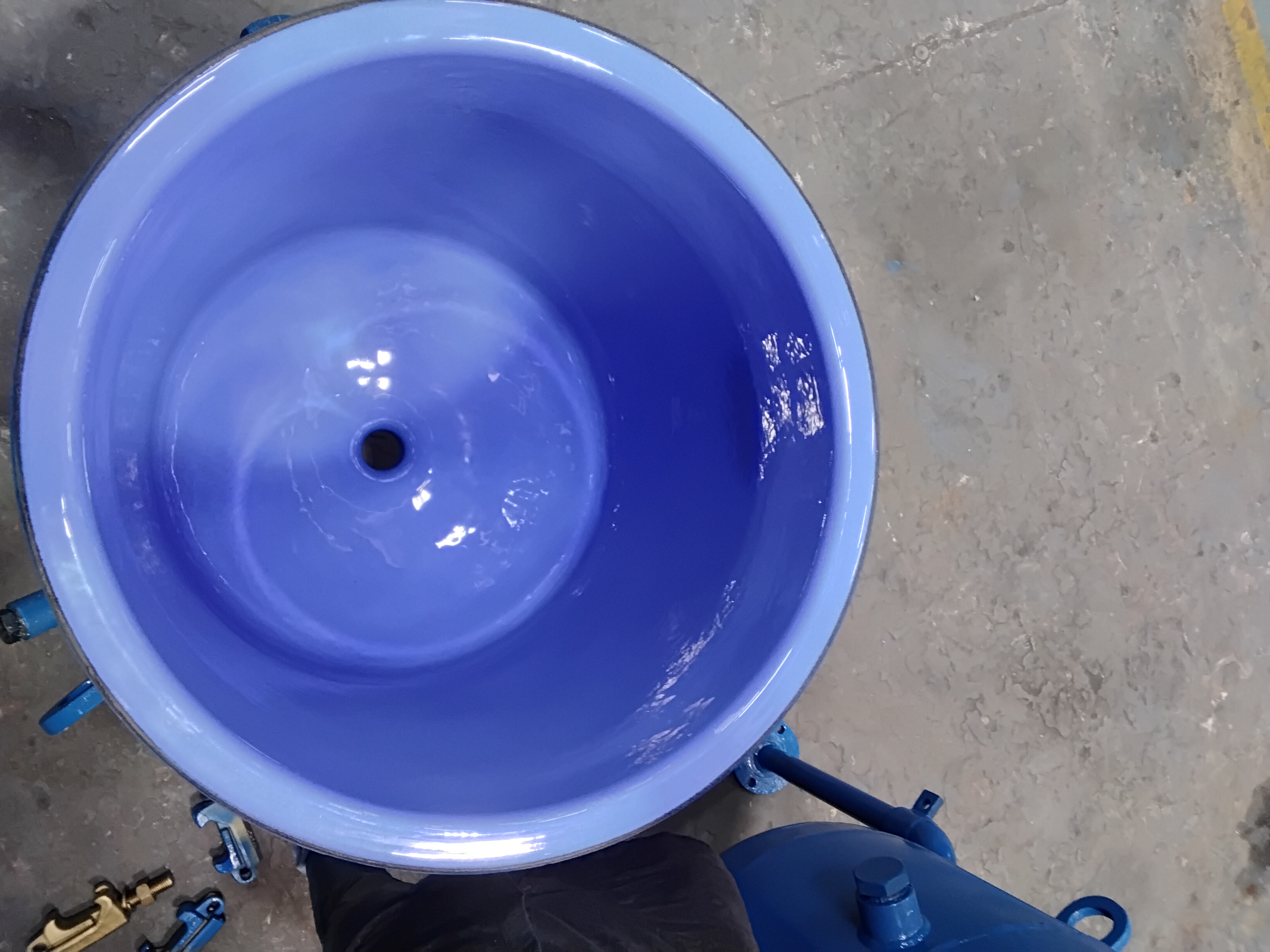

Glass Details
Full Fire Polish (FF)
Very Clean (VC)
  • Top Head Mixer Boss' three 1/2"-13UNC.
  • Glass type SG59 (Artic Blue) Pharma Grade
  • Exterior Paint :UGE blue Acrylic Polyurethane
  • Supports would be: legs with flat plate feet, with 18” clearance bottom nozzle to floor.
