34,069 L (9,000 gallons) Stainless Steel 316 Batch-Type Agitated Reactor For Sale IPP# 246699

Condition:

Used

Material:

Stainless Steel 316

Manufacturer:

Industrial Alloy Fabricators

Capacity Design:

34,069 L (9,000 gallons)

Internal Pressure:

1.03 bar (15 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

148.9 °C (300 °F)

Internal Finish:

Mill 2B

Jacket Pressure:

3.4 bar (50 psi)

Jacket Temperature:

148.9 °C (300 °F)

Jacket Material of Construction:

Stainless Steel 304

Orientation:

Vertical

Agitation:

Yes

Drive Power:

1.86 kW (2.5 HP)

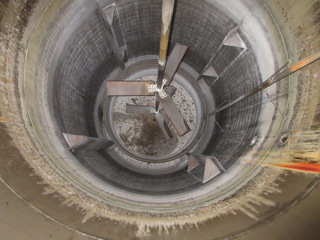

Baffle Type:

Sidewall Mounted Straight Baffle

Baffle Details:

Four full length side wall baffles

Top Head Type:

Flat

Top Head Material:

Stainless Steel 316

Bottom Head Type:

Flat

Bottom Head Material:

Stainless Steel 316

Nozzle Schedule:

(1) 24" opening that takes a ring with a rupture disk,, (1) agitator, (1) 6" outlet, (6) 4" nozzles, (4) 3" nozzles, (4) 2" nozzles

Support Type:

Skirt

Additional Info:

There are no man way covers for this vessel. Instead, this process required a ring and a single use rupture disk.

IPP# 246699, 34,069 L (9,000 gallons) Stainless Steel 316 Batch-Type Agitated Reactor For Sale
