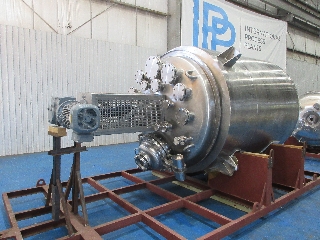

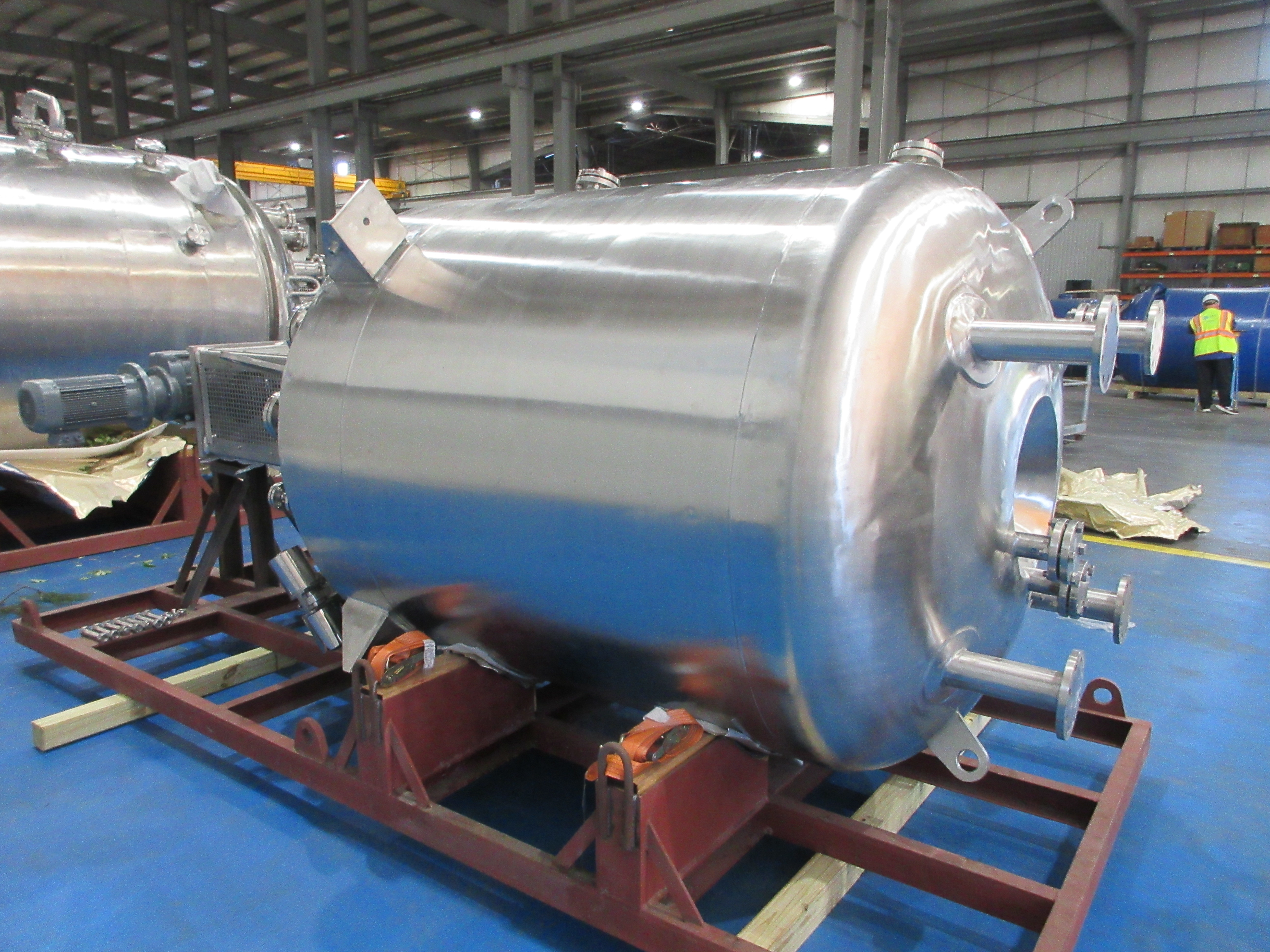

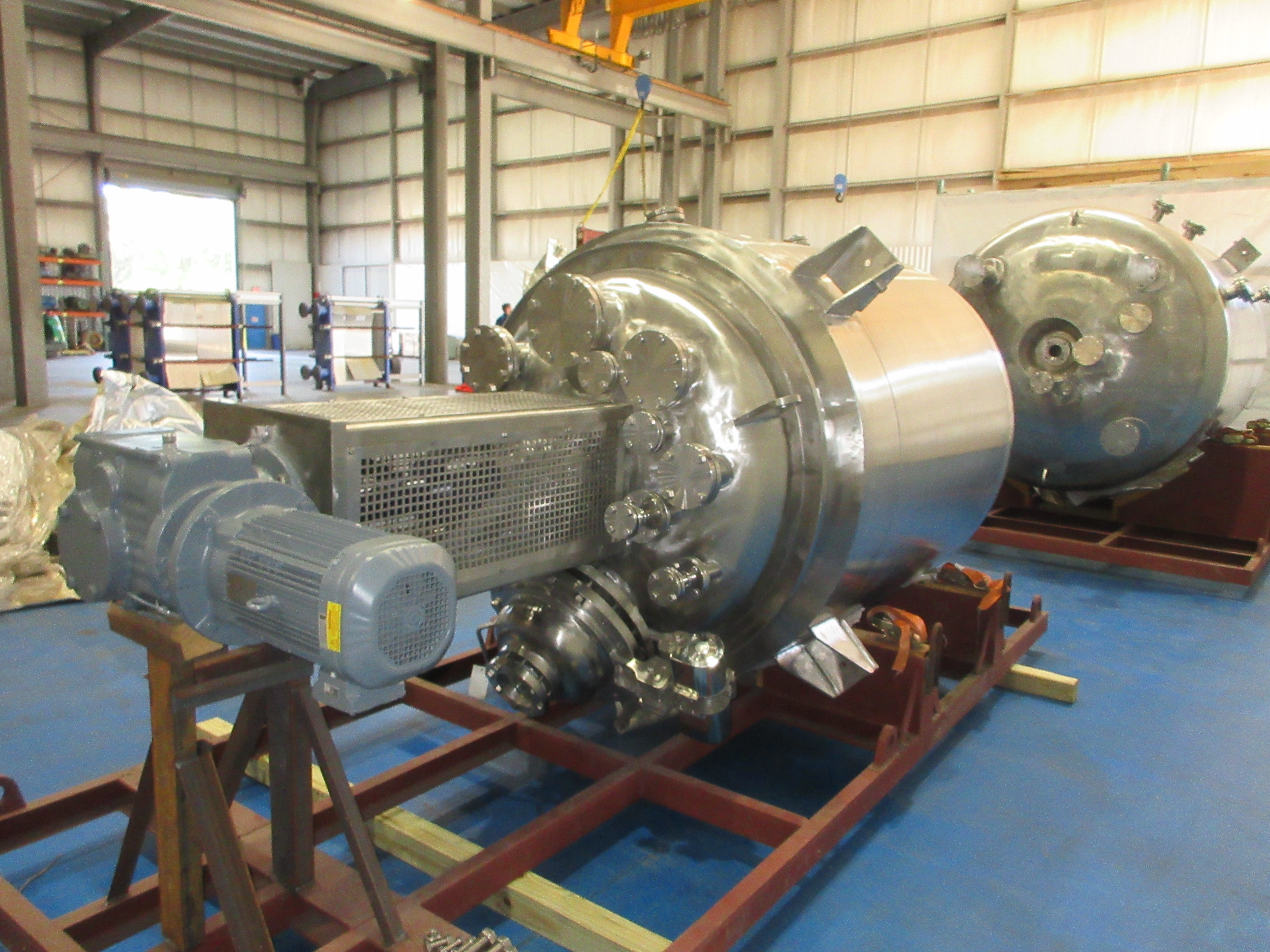

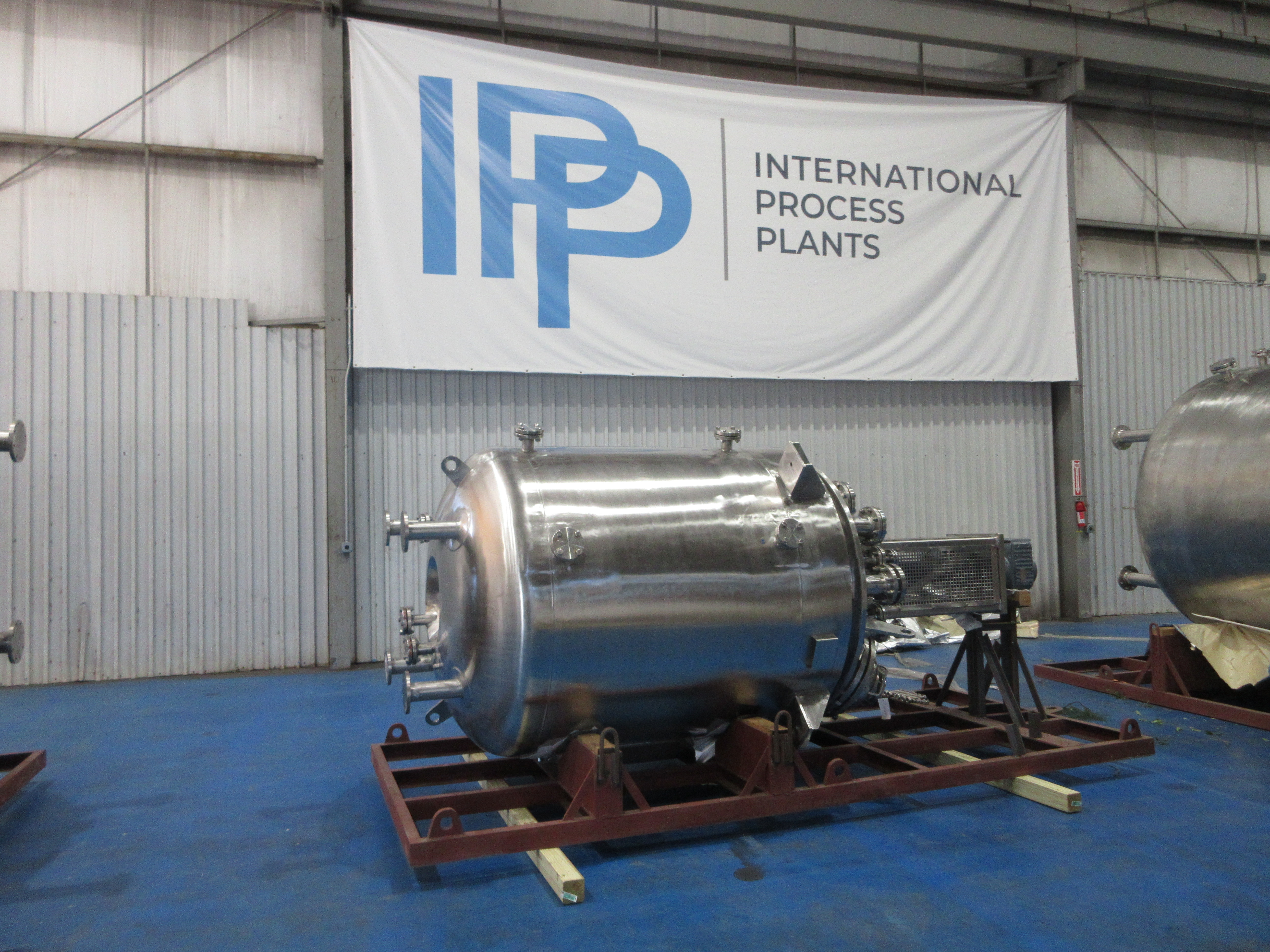

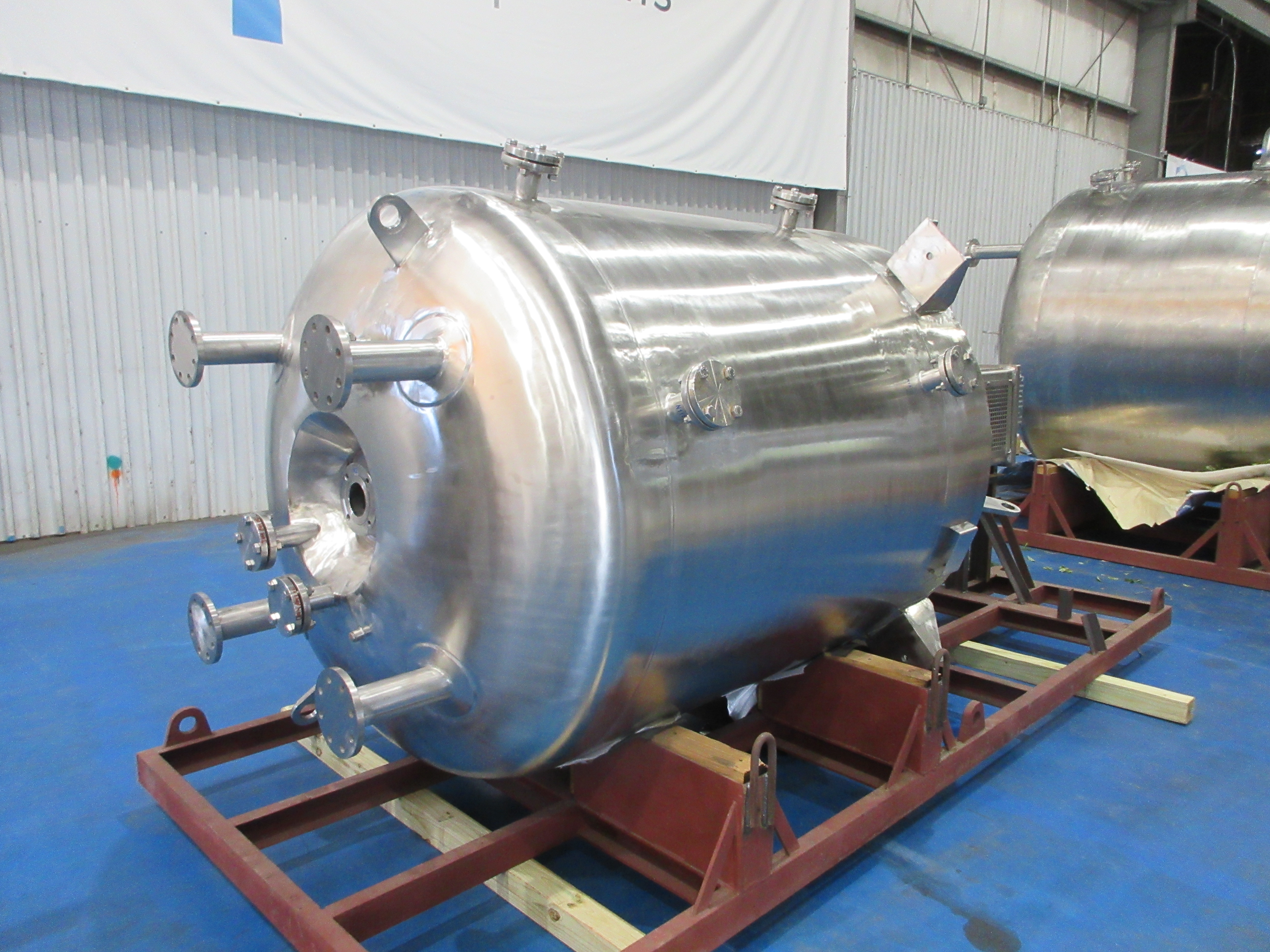

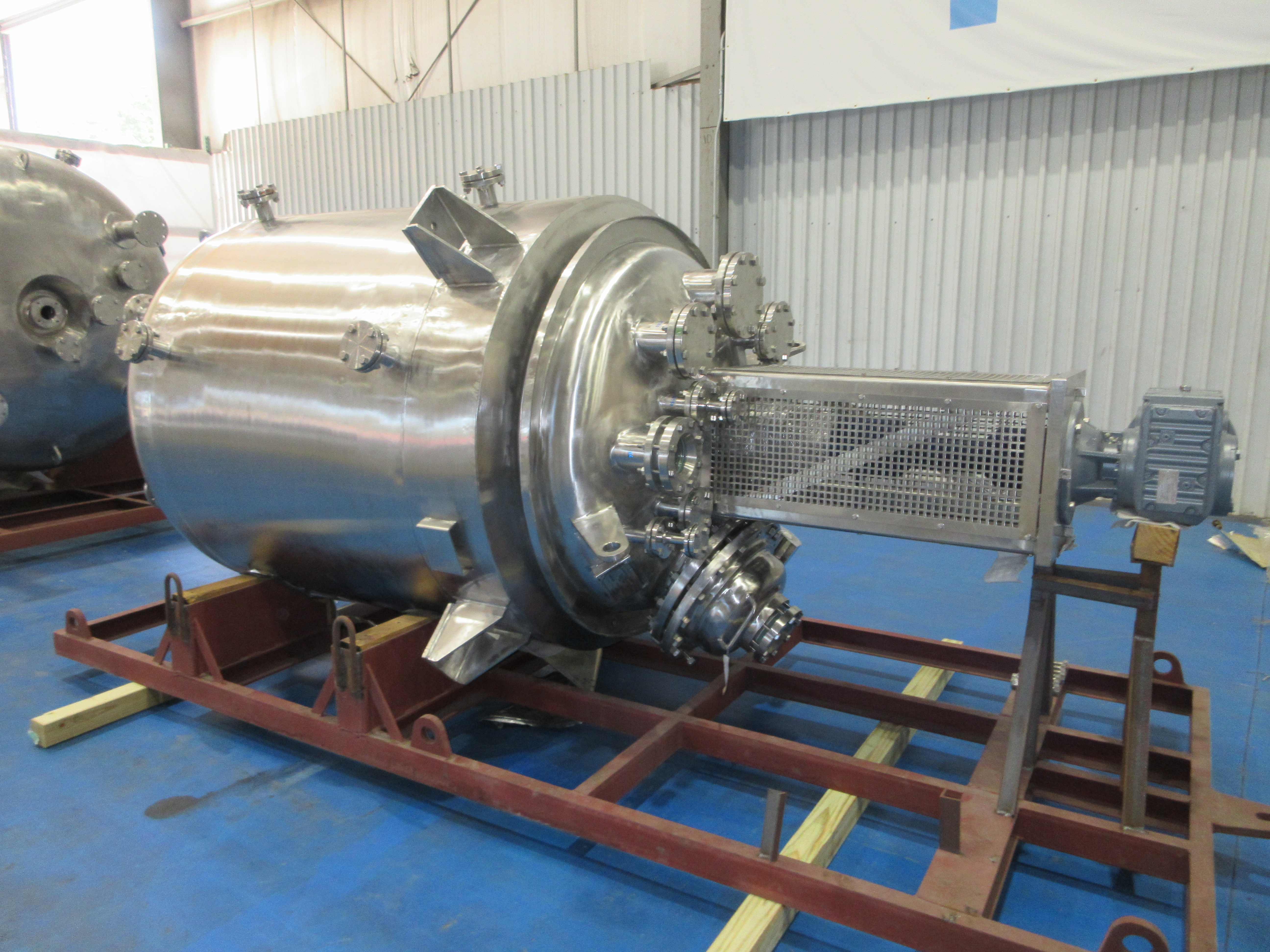

New Hastelloy - C22 Gale Process Solutions Batch-Type Agitated Reactor - IPP# 247110

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Hastelloy - C22

Capacity (Design): 3,800 L (1,000 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and PUF , 304 SS sheathing completely sealed to 0.4 bar
• With dip tube and thermowell

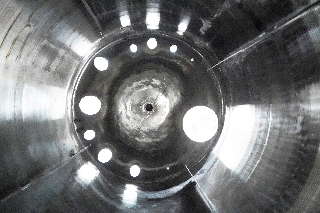

• Internal: Buff polish to 240 Grit
• External : Buff polish to 180 Grit
• Added internal coil MOC SB 622,170 Sq.Ft. ,rated for 145 psi at 400 degrees F.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 2,000 mm (78.7 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Hastelloy - C22

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and puff , 304 SS sheathing completely sealed to 0.4 bar
• With Thermowell and dip pipe
• Internal finish: buff polish 240 grit
• External finish Buff polish 180 grit

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,000 mm (78.8 in). Straight Side Length: 2,400 mm (94.6 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Hastelloy - C22

Capacity (Design): 15,150 L (4,000 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering rockwool & PUF insulation, 304 SS sheathing completely sealed to 0.4 bar.
• Externals buff polished to 180 grit.
• With thermowell & dip tube.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,450 mm (96.5 in). Straight Side Length: 3,150 mm (124 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Hastelloy - C22

Capacity (Design): 22,700 L (6,000 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering rockwool & PUF insulation , 304 SS sheathing completely sealed to 0.4 bar
• Externals buff polished to 180 grit.
• With thermowell & dip tube.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,800 mm (110.6 in). Straight Side Length: 4,300 mm (170.1 in). Support Type: Lugs.
