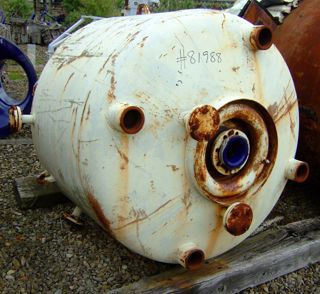

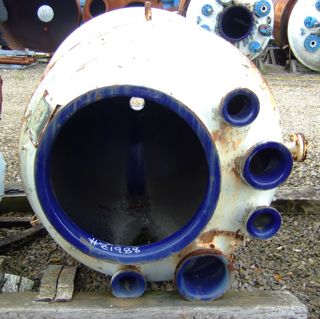

Glasslined DeDietrich STU Batch Type Body Only Reactor - IPP# 81993

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Model: STU

Condition: Needs Reglass

Material: Glasslined

Capacity (Design): 1,300 L (343.4 gallons)

Internal Pressure: 6.1 bar (88 psi)

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6.1 bar (88 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight Side Length: 1,016 mm (40 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Model: SA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 2,839 L (750 gallons)

Internal Pressure: 6.9 bar (100 psi)

• Bare Body

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight Side Length: 1,321 mm (52 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Model: SA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 3,785 L (1,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• This is a Base reactor

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight Side Length: 1,829 mm (72 in). Support Type: Legs.

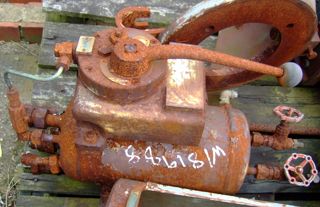

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Capacity (Design): 980 L (258.9 gallons)

Internal Pressure: 6 bar (87 psi)

• Bottom only
• top design (no cover) Auftr #418421 (200 liter)blue glass 3008

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 975 mm (38.4 in). Straight Side Length: 800 mm (31.5 in). Support Type: Lugs.
