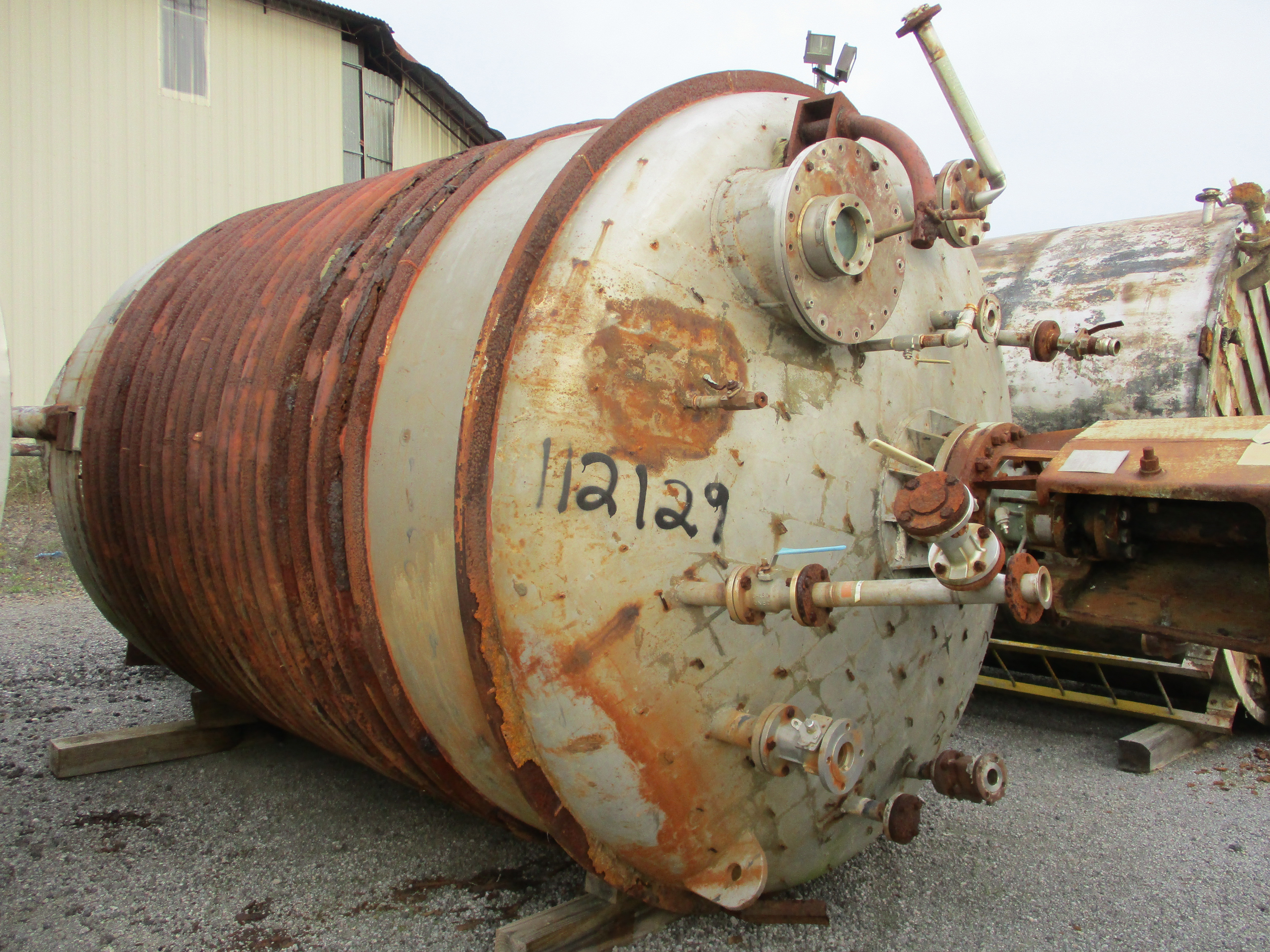

Stainless Steel 304L Metal Equipment Co. Tank - IPP# 112129

Type: Tank

Manufacturer: Perry Products Co.

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 28,400 L (7,500 gallons)

Orientation: Horizontal

• (5) reinforcing rings around outside of tank

Diameter: 2,450 mm (96 in). Straight-side Length: 6,100 mm (240 in). Cone Length: 304.8 mm (12 in). Support: Saddle.

Type: Tank

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 28,000 L (7,400 gallons)

Orientation: Horizontal

• internal working pressure atmospheric @ 80 deg C, design temperature 150 deg C,
• Coil pressure rating: 3.5 bar
• Coil material: 316L s/steel
• Coil design: 1-turn, hairpin
• Coil location: Running along full length of vessel bottom
• Cradle type: Fixed c/steel tank has a 50mm fall from back to front, fully insulated with 50mm foam glass and clad with aluminum

Diameter: 2,500 mm (98.4 in). Straight-side Length: 6,000 mm (236.2 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 150 °C (302 °F). Does it have an Internal Coil?: Yes. Support: Saddle.

Type: Tank

Manufacturer: M. LABBE

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 21,200 L (5,600 gallons)

Orientation: Vertical

Pressure rating: without pressure Lifting weight: 3,030kg Vessel wall thickness of head and bottom dish 8mm Cylindrical section 6mm

Diameter: 2,400 mm (94.5 in). Straight-side Length: 3,900 mm (153.5 in). Internal Temperature: 135 °C (275 °F). Cone Length: 793 mm (31.2 in). Support: Lugs.

Type: Tank

Manufacturer: John Dore & Co LTD.

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 1,000 L (264.2 gallons)

Orientation: Vertical

• Fully insulated pressure tank.
• Built to BS 5500

Diameter: 1,050 mm (41.7 in). Straight-side Length: 1,050 mm (42 in). Internal Pressure: 3.8 bar (54.9 psi). Internal Temperature: 190 °C (374 °F). Vacuum: Yes. Support: Legs.
