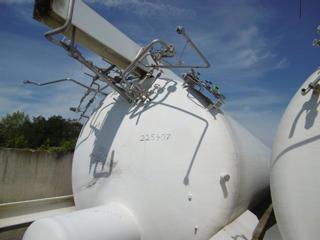

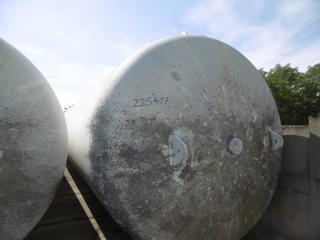

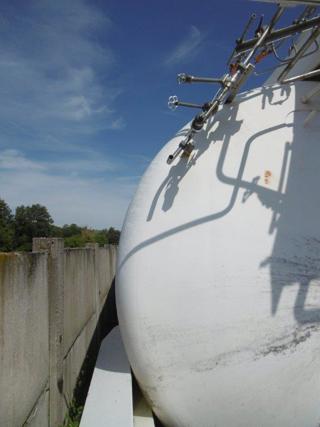

Nickel Alloy Messer Grisheim GmbH Tank - IPP# 225406

Type: Tank

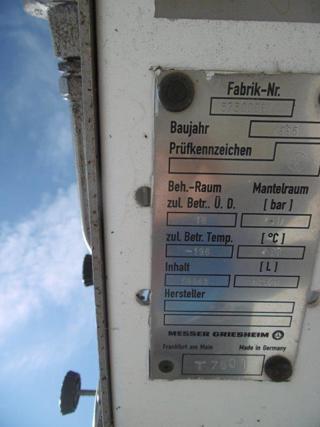

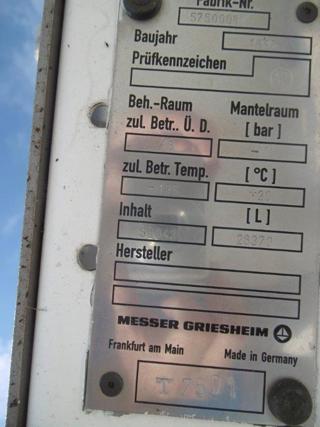

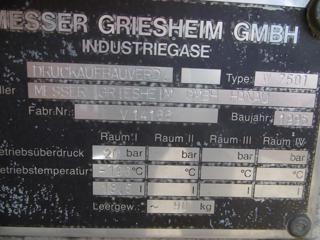

Manufacturer: Messer Grisheim GmbH

Condition: Used

Material: Nickel

Capacity (Design): 59,050 L (15,600 gallons)

Orientation: Vertical

• Vessel constructed of ASTM A353 (DIN 1.5662 / X8Ni9) nickel alloy specially designed for cryogenic & low temperature operations.
• 59,043 liter (15,600 gal.) inner vessel.
• 26,370 liter (6,966 gal.) space between tanks insulated with powdered perlite held under -1 bar vacuum at 20 deg. C.
• Outer sheathing constructed of ASTM A283 Grade C (DIN RSt37-2) carbon steel.

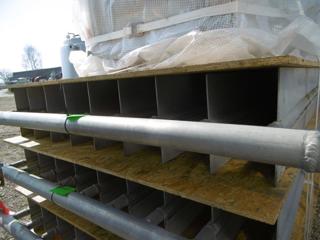

• With (9) fin stainless steel 18.5 liter air heater mounted under tank bottom dish.
• With thermosyphon on bottom dish.

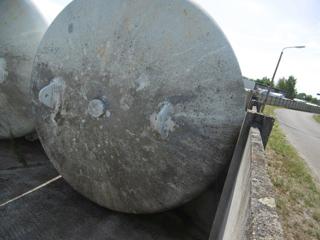

• Outer sheathing 12mm thick shell, 8mm thick head.

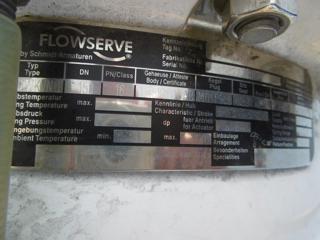

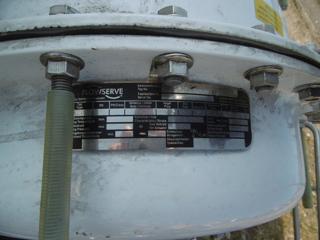

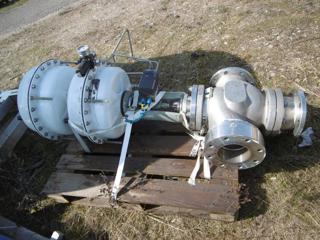

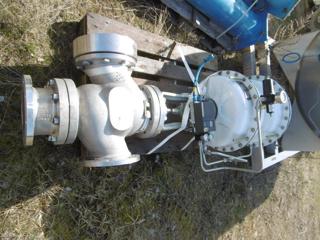

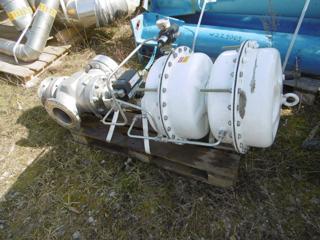

• With FlowServe DN 150 globe valve.

Diameter: 2,500 mm (98.4 in). Straight-side Length: 12,700 mm (500 in). Internal Pressure: 18 bar (261.1 psi). Internal Temperature: -196 °C (-320.8 °F). Jacket Pressure: 2 bar (29 psi). Jacket Temperature: -196 °C (-320.8 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Messer Grisheim GmbH

Condition: Used

Material: Nickel

Capacity (Design): 59,050 L (15,600 gallons)

Orientation: Vertical

• Vessel constructed of ASTM A353 (DIN 1.5662 / X8Ni9) nickel alloy specially designed for cryogenic & low temperature operations.
• 59,043 liter (15,600 gal.) inner vessel.
• 26,370 liter (6,966 gal.) space between tanks insulated with powdered perlite held under -1 bar vacuum at 20 deg. C.
• Outer sheathing constructed of ASTM A283 Grade C (DIN RSt37-2) carbon steel.
• With (9) fin stainless steel 18.5 liter air heater mounted under tank bottom dish.
• With thermosyphon on bottom dish.
• Outer sheathing 12mm thick shell, 8mm thick head.
• With FlowServe DN 150 globe valve.

Diameter: 2,500 mm (98.4 in). Straight-side Length: 12,700 mm (500 in). Internal Pressure: 18 bar (261.1 psi). Internal Temperature: -196 °C (-320.8 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Benicia Fabrication & Machine Co.

Condition: Used

Material: Nickel

Capacity (Design): 662 L (175 gallons)

Orientation: Vertical

• NI200(nickel)

Diameter: 610 mm (24 in). Straight-side Length: 2,300 mm (90 in). Internal Pressure: 12.4 bar (180 psi). Internal Temperature: 204.4 °C (400 °F). Support: Legs.
