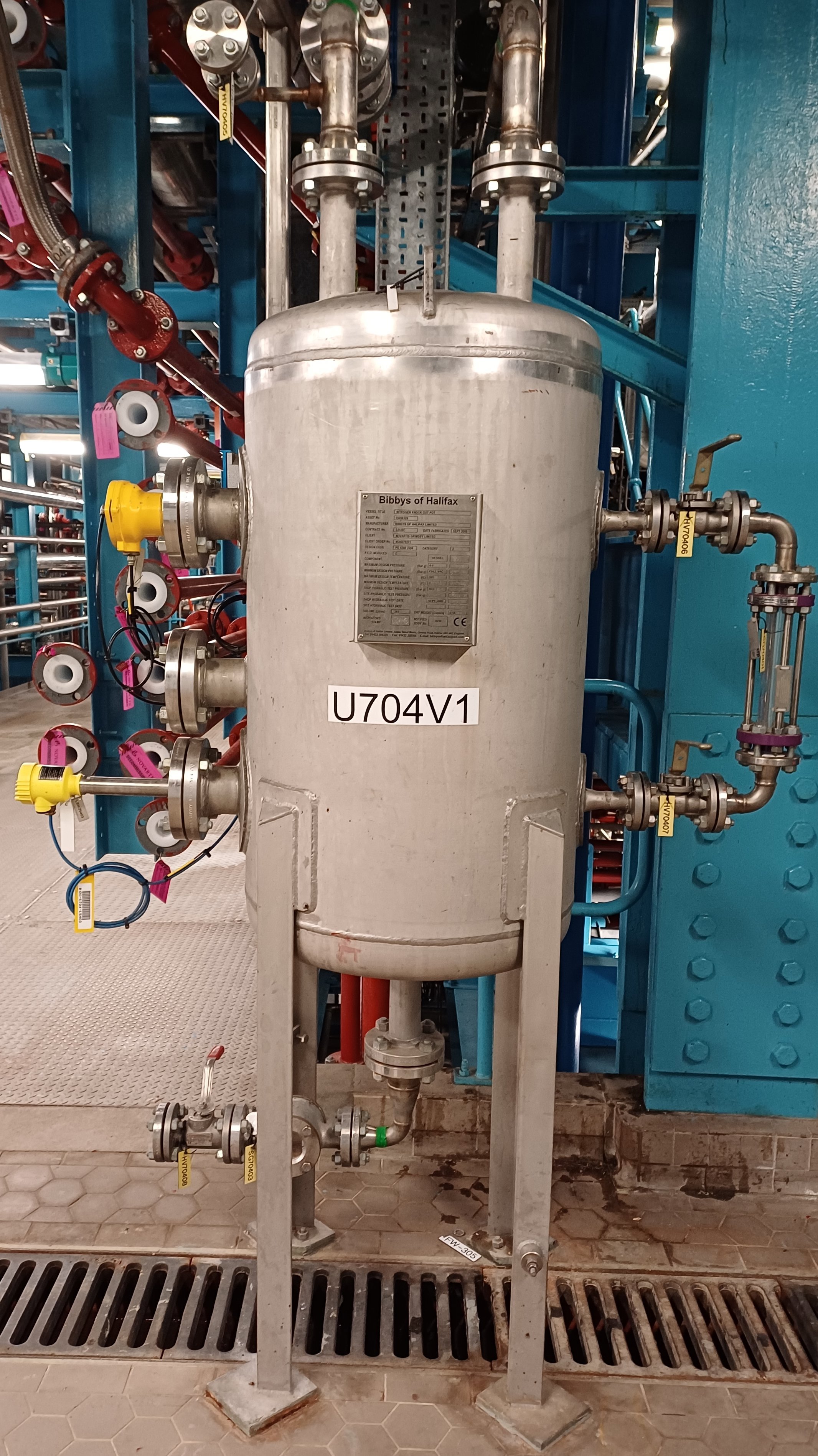

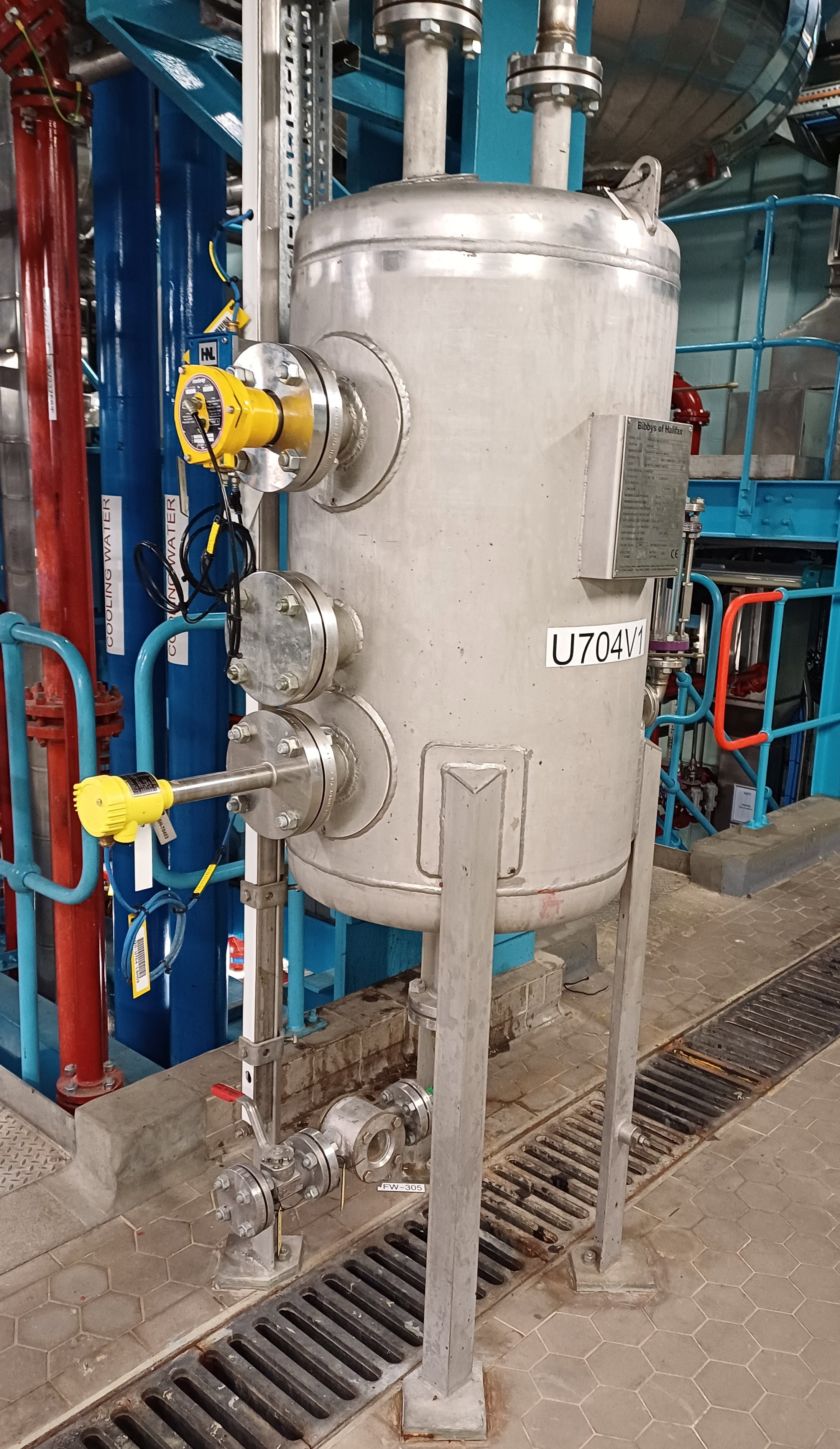

Stainless Steel 316L Bibby's of Halifax Tank - IPP# 242732

Type: Tank

Manufacturer: Bibbys of Halifax

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 283 L (74.8 gallons)

Orientation: Vertical

• 280 liter working volume, asset # 10006310,
• design pressure 6 barg + full vacuum @ 185 degrees C (283 liter),
• design code: PD5500 2006 CAT 2, PED modules G, CE0038

Diameter: 590 mm (23.2 in). Straight-side Length: 900 mm (35.4 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 185 °C (365 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Bibbys of Halifax

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 310 L (81.9 gallons)

Orientation: Vertical

• 300 liter working capacity
• design pressure 10 barg + full vacuum @ -25/160 degrees C (310 liter)
• design code: PD5500 2006, CE0038, CAT 2, P.E.D module G

Straight-side Length: 16 mm (0.63 in). Internal Pressure: 10 bar (145 psi). Internal Temperature: 160 °C (320 °F). Vacuum: Yes. Support: Legs.

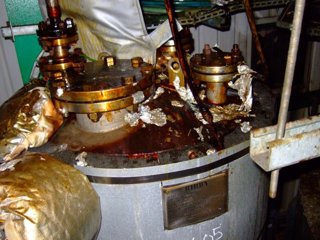

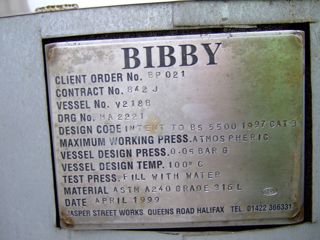

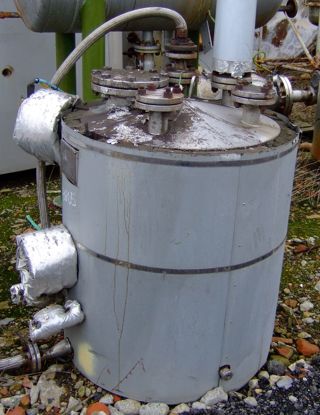

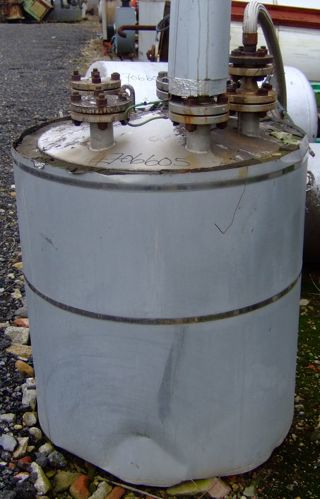

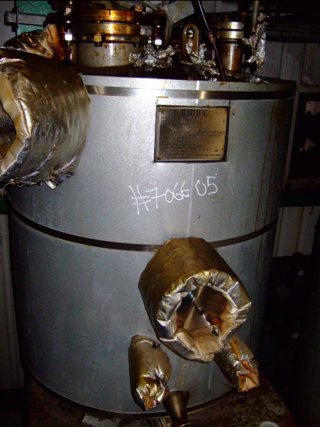

Type: Tank

Manufacturer: Bibbys of Halifax

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity (Design): 310 L (81.9 gallons)

Orientation: Vertical

• Design temperature 100 degrees C.
• Internal coil: 316L s/steel, 1-turn Fully insulated and clad.

Diameter: 700 mm (27.6 in). Straight-side Length: 850 mm (33.5 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 40 °C (104 °F). Does it have an Internal Coil?: Yes. Support: Legs.

Type: Tank

Manufacturer: Industrial Process Equipment Corp.

Model: Knock Out

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 283.9 L (75 gallons)

Orientation: Vertical

• Type: knock out pot
• Customer: Nash Kinema Vessel designed for non-lethal and non-corrosive service.

Diameter: 482.6 mm (19 in). Straight-side Length: 1,500 mm (60 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 204.4 °C (400 °F). Support: Base Mounted.
