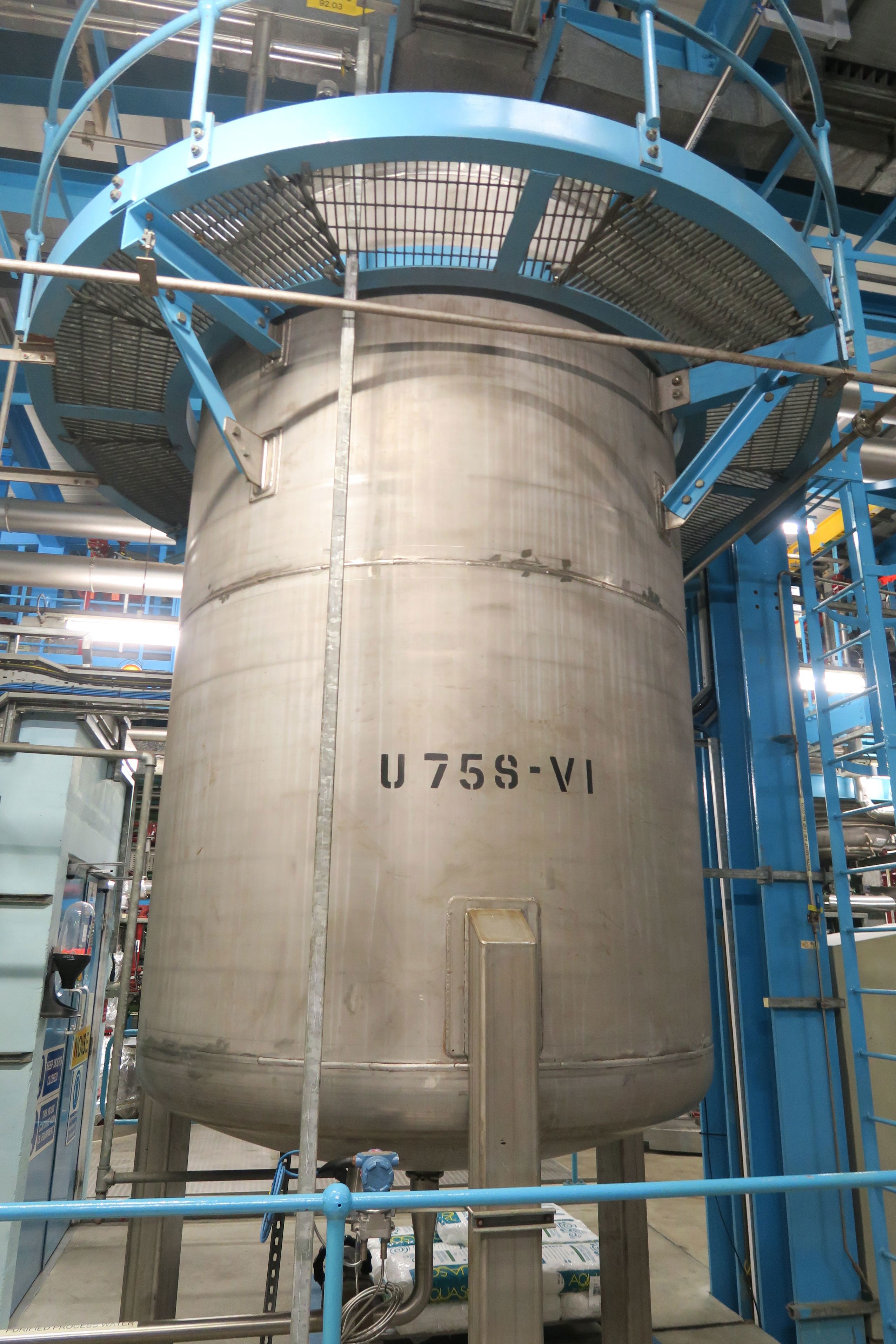

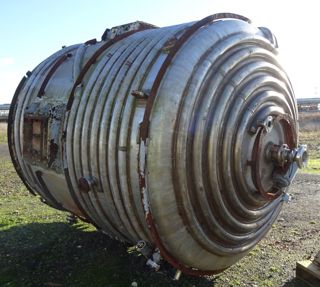

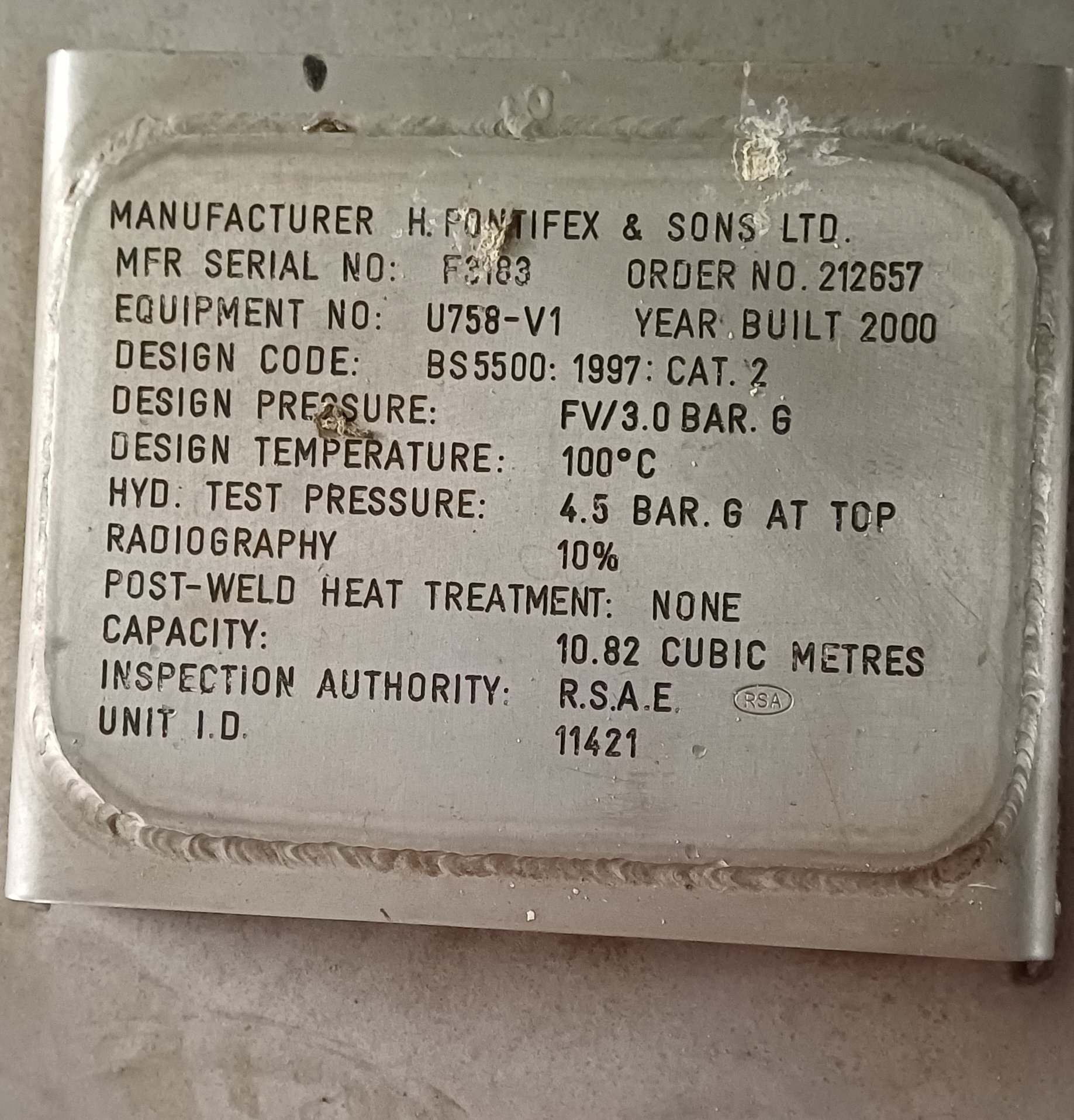

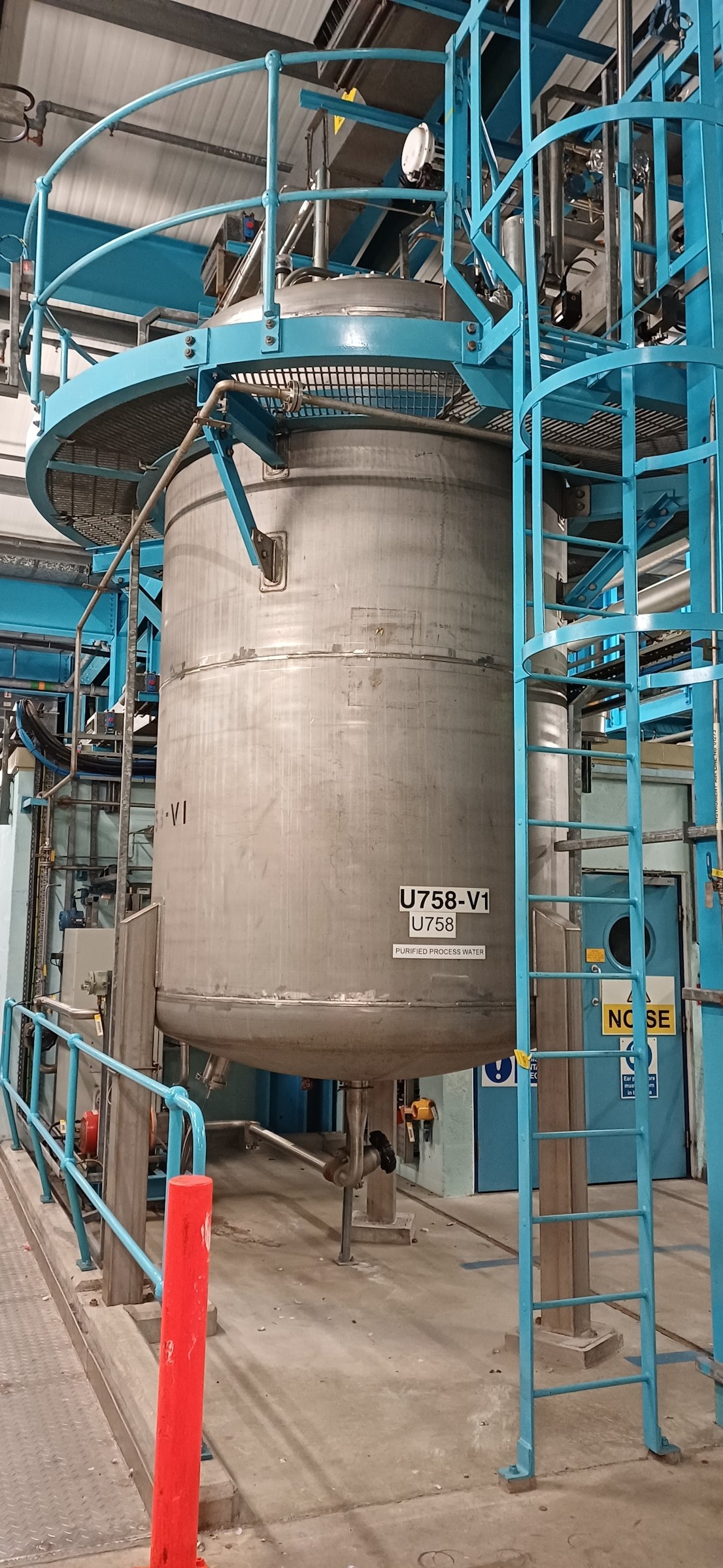

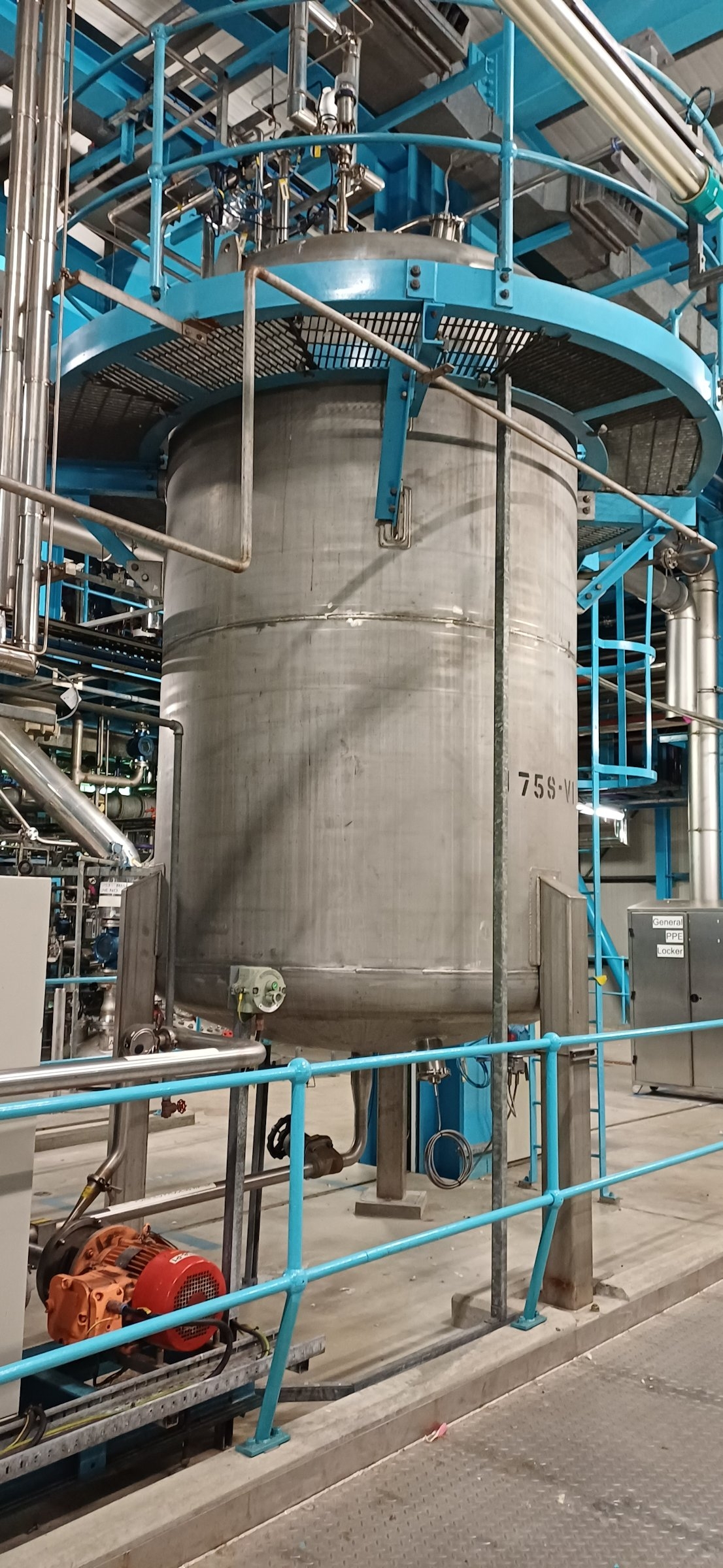

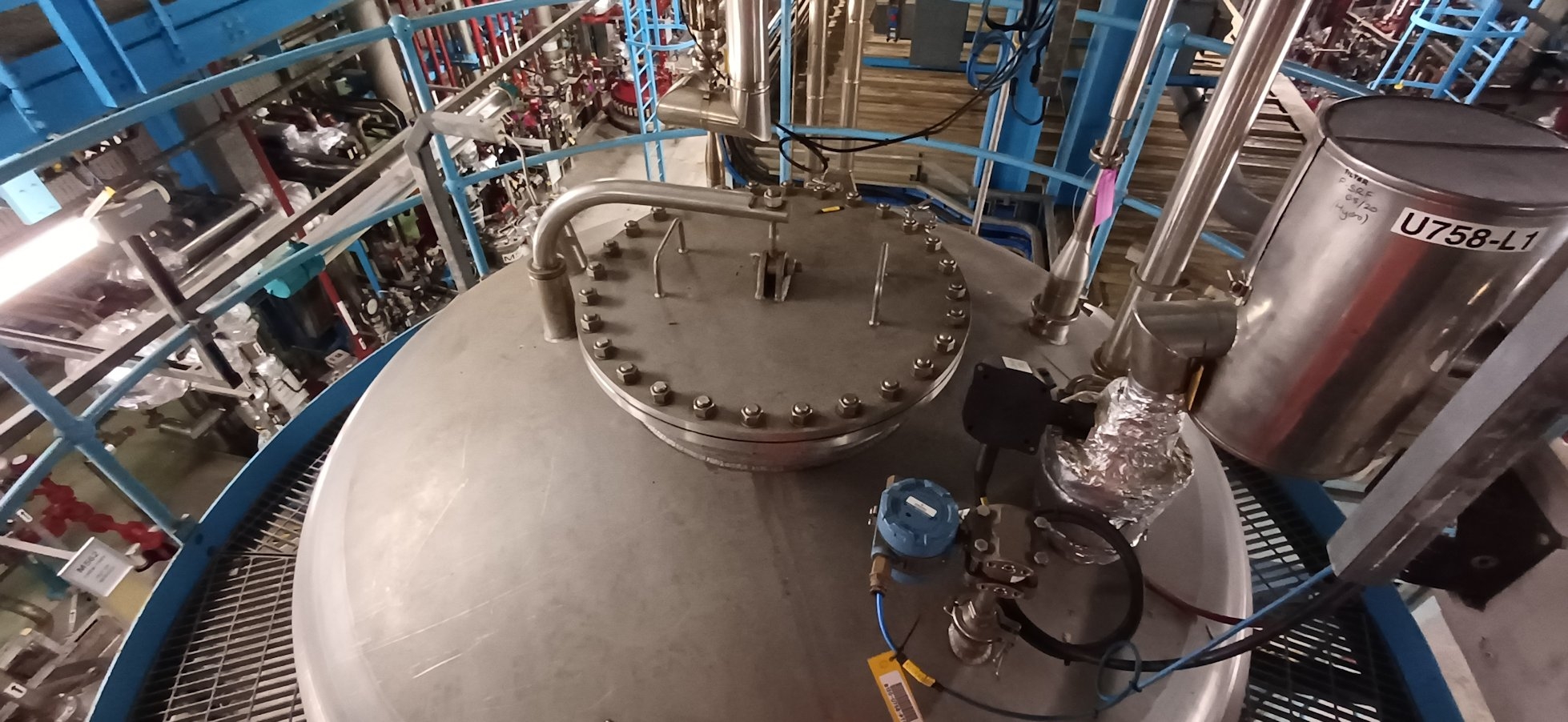

Stainless Steel 316L H.Pontifex & Sons Ltd. Tank - IPP# 242762

Type: Tank

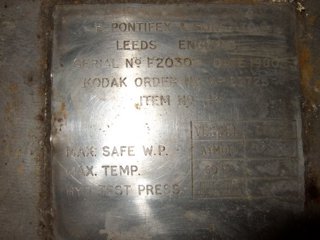

Manufacturer: H.Pontifex & sons ltd

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 10,000 L (2,650 gallons)

Orientation: Vertical

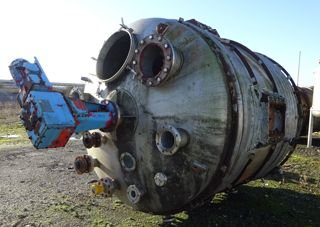

• Jacketed tank with agitation.
• With 4 internal sidewall mounted baffles.

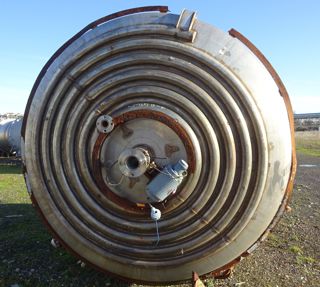

Diameter: 2,250 mm (88.5 in). Straight-side Length: 2,300 mm (91.3 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 95 °C (203 °F). Does it have Agitation ?: Yes. Jacket Type: Half Pipe/Limpet. Jacket Pressure: 4.1 bar (60 psi). Jacket Temperature: 150 °C (302 °F). Support: Lugs.

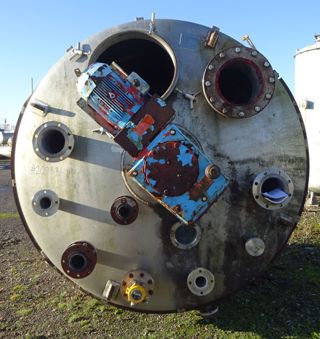

Type: Tank

Manufacturer: H.Pontifex & sons ltd

Condition: Used

Material: Stainless Steel 316

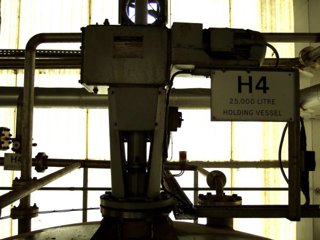

Capacity (Design): 25,000 L (6,600 gallons)

Orientation: Vertical

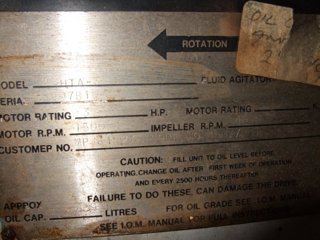

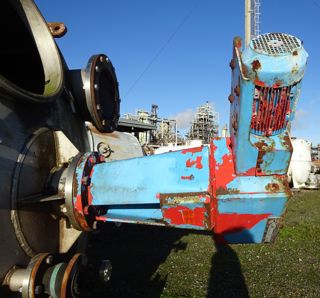

• 4-blade pitched paddle agitator
• With 4 internal sidewall mounted baffles.

Diameter: 2,900 mm (114.2 in). Straight-side Length: 3,750 mm (147.6 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 60 °C (140 °F). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.

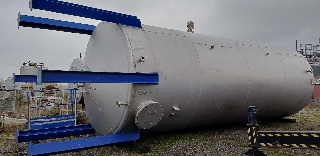

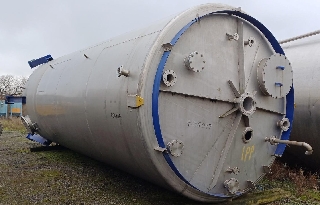

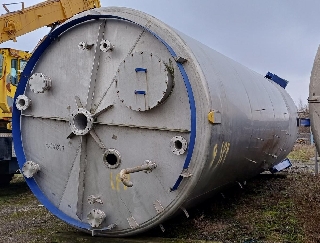

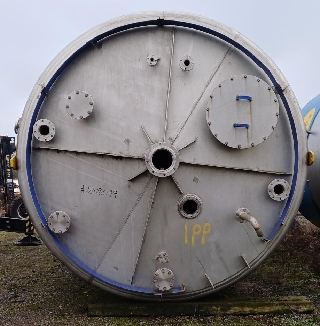

Type: Tank

Manufacturer: H.Pontifex & sons ltd

Condition: Unused

Material: Stainless Steel 316

Capacity (Design): 48,000 L (12,700 gallons)

Orientation: Vertical

design pressure 70mbar @ 50 degrees C,

design code: Good Engineering Practice

Diameter: 3,100 mm (122 in). Straight-side Length: 8,000 mm (315 in). Internal Pressure: 0.07 bar (1.02 psi). Internal Temperature: 50 °C (122 °F). Support: Legs.

Type: Tank

Manufacturer: Industrial Process Equipment Corp.

Model: Knock Out

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 283.9 L (75 gallons)

Orientation: Vertical

• Type: knock out pot
• Customer: Nash Kinema Vessel designed for non-lethal and non-corrosive service.

Diameter: 482.6 mm (19 in). Straight-side Length: 1,500 mm (60 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 204.4 °C (400 °F). Support: Base Mounted.
