Pump-Vacuum 105 m3/h (61.8 CFM) Carbon Steel For Sale - IPP# 204149

Type: Pump-Vacuum

Manufacturer: SIHI

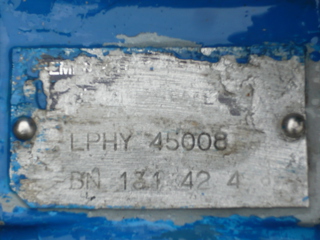

Model: LPHY-45008

Condition: Used

Material: Stainless Steel Other

Air Flow: 105 m3/h (61.8 CFM)

Orientation: Horizontal

Inlet Diameter: 40 mm (1.57 in). Outlet Diameter: 40 mm (1.57 in). Seal Type: Liquid Ring.

Type: Pump-Vacuum

Manufacturer: SIHI

Model: LPHY 75320

Condition: Used

Material: Carbon Steel

Air Flow: 787 m3/h (463 CFM)

Discharge Pressure: 0.76 bar (11.1 psi)

liquid ring design with a total recirculation system type 309-302, SIHI Drawing number SV1677. System includes a 4" diameter x 30" long, and a gas/liquid seperator/service liquid tank, CS 20" diameter x 45" straight side, rated 16psi @ -20 to 200 degrees f.

Orientation: Horizontal. Seal Type: Liquid Ring. Cooling or Seal Water: Yes.

Type: Pump-Vacuum

Manufacturer: SIHI

Model: LPH70530

Condition: Used

Material: Carbon Steel

Air Flow: 1,400 m3/h (825 CFM)

Discharge Pressure: 0.27 bar (3.9 psi)

at 8" Hg(21.92 " Hg absolute dry air at 68 degrees F) liquid ring vacuum pump belt driven (with belt guard) Requires 15 gpm seal water flow Inlet/outlet nozzles are 4". Inlet and outlet piping is available and outlet has a 30 gallon With valves.

Orientation: Horizontal. Inlet Diameter: 101.6 mm (4 in). Outlet Diameter: 101.6 mm (4 in). Seal Type: Liquid Ring. Temperature: 20 °C (68 °F). Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 3,400 L/h (15 GPM).

Type: Pump-Vacuum

Manufacturer: SIHI

Model: WNMA 4000 A1 XOA 1BO

Condition: Unused

Material: Carbon Steel

Air Flow: 4,000 m3/h (2,350 CFM)

Orientation: Horizontal

c/steel roots vacuum pump with water cooling without electrical motor, (1) down opening: 250mm; (1) top opening: 250mm total weight 370 kg. pump # D-437349908

Inlet Diameter: 250 mm (9.8 in). Outlet Diameter: 250 mm (9.8 in). Cooling or Seal Water: Yes.
