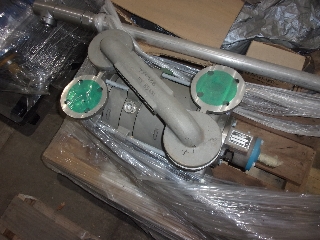

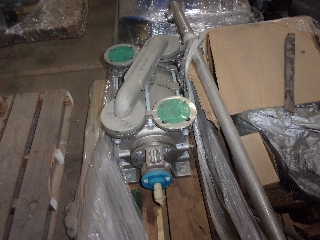

Stainless Steel 316 Kinney/Tuthill KLRC125KC53 Pump-Vacuum - IPP# 205993

Type: Pump-Vacuum

Manufacturer: Kinney/Tuthill

Model: KLRC125KC53

Condition: Used

Material: Stainless Steel 316L

Air Flow: 240 m3/h (141 CFM)

Orientation: Horizontal

• Seal connections 3/4"Pump will move 90-141 ACFM depending on suction pressure. (See Performance data & spec sheet).
• Weight 255 Lbs.
• Seal water required for partial seal return system 4 gpm Seal water required for no return system 7 GPM.
• Unit is direct coupled to motor and both are mounted on a 50" L x 15" W base.

Inlet Diameter: 38.1 mm (1.5 in). Outlet Diameter: 38.1 mm (1.5 in). Seal Type: Liquid Ring. Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 1,590 L/h (7 GPM).

Type: Pump-Vacuum

Manufacturer: Kinney/Tuthill

Model: 125-CD3

Condition: Unused

Material: Stainless Steel 316

Air Flow: 238 m3/h (140 CFM)

Discharge Pressure: 1.38 bar (20 psi)

Orientation: Horizontal. Inlet Diameter: 26.7 mm (1.05 in). Outlet Diameter: 26.7 mm (1.05 in). Seal Type: Liquid Ring. Cooling or Seal Water: Yes.

Type: Pump-Vacuum

Manufacturer: Kinney/Tuthill

Model: KT150-G

Condition: Used

Air Flow: 255 m3/h (150 CFM)

Discharge Pressure: 0.000689 bar (0.01 psi)

oil seal vacuum pump
Torr: 0.5

Orientation: Vertical. Inlet Diameter: 76.2 mm (3 in). Outlet Diameter: 50.8 mm (2 in). Seal Type: Oil Seal. Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 227 L/h (1 GPM).

Type: Pump-Vacuum

Manufacturer: Kinney/Tuthill

Model: KT150 C

Condition: Used

Air Flow: 255 m3/h (150 CFM)

Discharge Pressure: 0.000689 bar (0.01 psi)

@ .5 torr
oil seal vacuum pump

Orientation: Horizontal. Inlet Diameter: 76.2 mm (3 in). Outlet Diameter: 50.8 mm (2 in). Seal Type: Oil Seal. Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 227 L/h (1 GPM).
