When your process requires heavy-duty mixing of highly viscous materials, double arm mixers provide the robust performance needed for demanding applications. With over 47 years of experience, IPP offers one of the world’s largest inventories of used process equipment, sourced from 20 complete plant sites and featuring over 15,000 ready-to-ship pieces. Our selection of used double arm mixers ensures companies can source reliable equipment while reducing costs and lead times.
Double arm mixers, also called sigma blade mixers, use two counter-rotating blades within a U-shaped trough to knead, blend, and homogenize thick, heavy materials. This high-torque design excels at processing materials that would overwhelm traditional mixers, making double arm mixers indispensable in rubber, adhesives, plastics, and specialty chemical industries.
Double arm mixers are built with durability in mind, using materials matched to the abrasiveness, viscosity, and cleanliness requirements of the process:
Learn more about sigma blade mixing technology in this Chemical Engineering guide.
Search the IMS inventory or contact IPP’s equipment specialists to secure a high-quality double arm mixer for your process. With ready-to-ship inventory, IPP helps companies reduce project timelines, avoid costly supply chain delays, and control capital expenditures.
Read more: The market for second-hand process plant and equipment is thriving

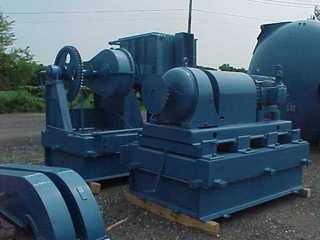

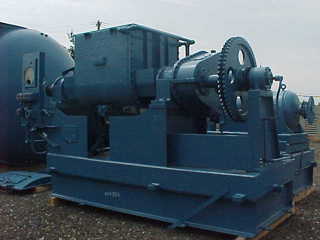

Type: Mixer-Double Arm
Manufacturer: JH Day
Model: Mogul
Condition: Used
Material: Carbon Steel
Capacity (Design): 2,082 L (550 gallons)
Capacity (Working): 1,136 L (300 gallons)

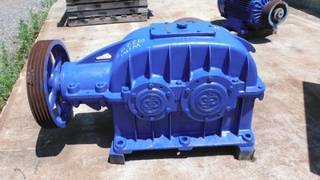

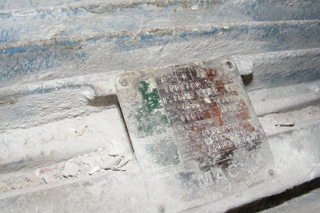

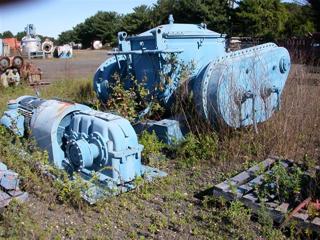

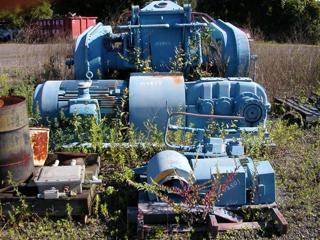

Mogul line heavy duty design with double nobben blades for extra shearing actions, tangential shaft design, packing glands on shafts Front agitator rated 30 RPM, rear agitator rated 20 RPM Unit designed for tilt discharge 8" bottom disharge valves. With bombay door style cover. Trough has bolted sides Trough inside dimensions - 50" wide x 56" long x 36 1/2" deep Total capacity is 550 gallon Unit driven one side by, Allis-Chalmer Induction Motor Motor type: AZZT HP: 300/300, PRM: 1180/880 Amps: 376/386 Enclosed Gear Drive Serial number: A-104 Input: 1150/870, Output: 39.3/29.8 HP rating: 300
Blade Type: with double nobben blades. Blade Speed (RPM): 30. Tilting: Yes.

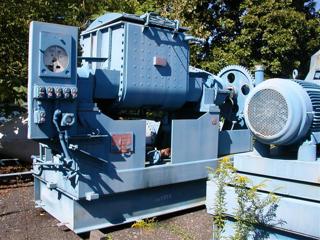

Type: Mixer-Double Arm
Manufacturer: JH Day
Condition: Used
Material: Carbon Steel
Capacity (Design): 2,082 L (550 gallons)
Capacity (Working): 1,136 L (300 gallons)

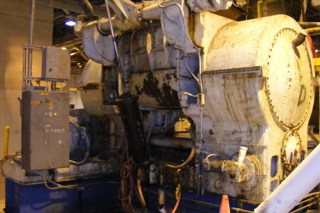

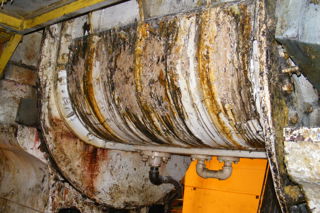

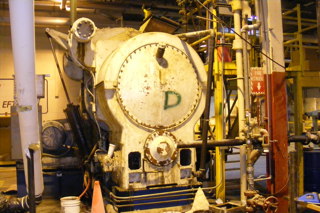

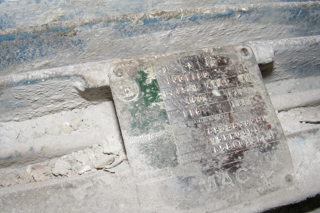

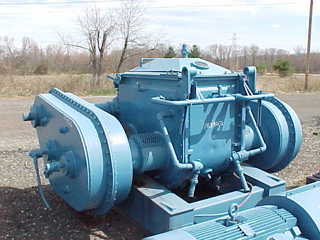

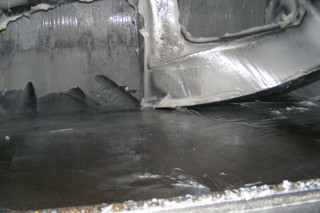

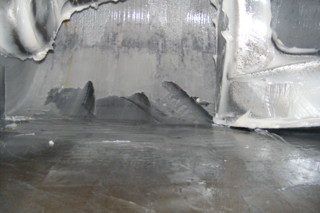

Double Arm Mixer Mogul line heavy duty design jacketed trough with vacuum hood, cored shafts with double nobben blades for extra shearing actions tangential shaft design packing glands on shafts Front agitator rated 30 RPM, rear agitator rated 20 RPM. Unit designed for tilt discharge. With top atmospheric cover. Cover has (1) 18" diameter hatch with cover, (1) approx 24" for vacuums. Trough has bolted sides. Trough inside dimensions - 50" wide x 56" long x 36 1/2" deep total capacity is 550 gallon Unit has single end drive, with a chain and sprocket drive Enclosed Gear Drive , serial # A-168 Input Rpm =1750, output rpm=30.36, Pace Maker AC Model 4-2756820 01, 300 HP, 460 va, 3 ph, 60 Hz. Rpm 1785, amps 357.
Blade Type: double nobben blades. Blade Speed (RPM): 30. Tilting: Yes. Vacuum: Yes.
Type: Mixer-Double Arm
Manufacturer: JH Day
Condition: Used
Material: Carbon Steel
Capacity (Design): 2,082 L (550 gallons)
Capacity (Working): 1,136 L (300 gallons)

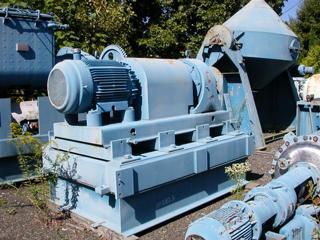

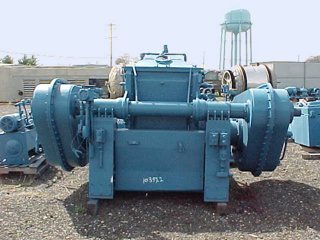

Mogul line heavy duty design jacketed trough double nobben blades for extra shearing actions tangential shaft design, packing glands on shafts. Front agitator rated 30 RPM, rear agitator rated 20 RPM Unit designed for tilt discharge With top atmospheric cover. Trough has bolted sides Trough inside dimensions - 50" wide x 56" long x 36 1/2" deep total capacity is 550 gallon Unit has single end drive, with a chain and sprocket drive Enclosed Gear Drive , serial # A-233 Input Rpm =1750, output rpm=30.36, ratio 57.65. Type CEA
Blade Type: double nobben blades. Tilting: Yes.

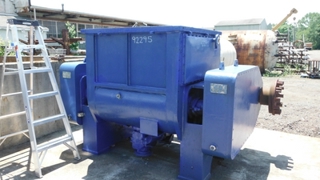

Type: Mixer-Double Arm
Condition: Used
Material: Carbon Steel
Capacity (Design): 378.5 L (100 gallons)

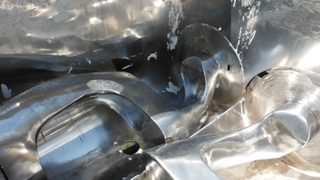

Blade Type: tangential double sigma blades

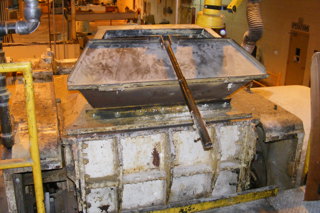

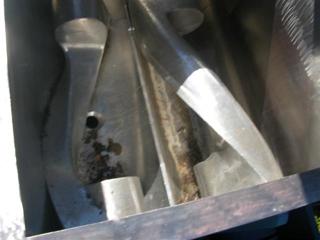

Double sigma blade mixer with jacketed trough. Rated atmospheric internal. Trough is jacketed on bottom 1/3 of trough. Unit has tangential sigma blades, driven one side, with packing glands on shaft. Top cover is hinged with pneumatic cylinder, rated atmospheric internal. Trough has bolted sides. Inside trough dimensions are 40" W x 36" wide x 47" deep. Chain and sprocket drive, 3 hp gearhead motor to operate tilt discharge.
Tilting: Yes.
