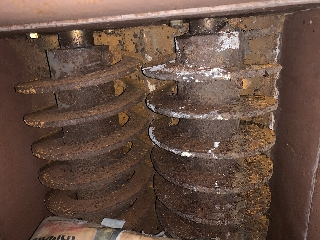

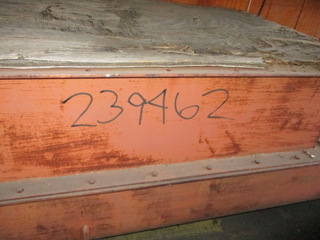

twin screw feed with screw conveyor. Feed bin is 48" x 48" with twin screws discharging into a 10" diameter X 8' long screw conveyor. Leason 3/4HP motors and reducers, conveyor driven by approximately 10 HP motor. Designed for feed rates of 0.58 to 3400 cu.ft./hour.Designed for 48" round inlet hopper(not Included), discharge into 14" round opening. Powered By: Electric. Screw Diameter: 254 mm (10 in). Screw Length: 2,438 mm (96 in).

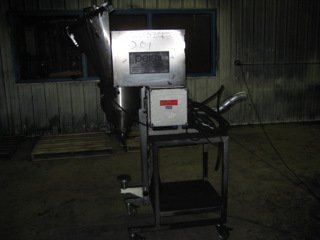

volumetric feeder 10 amp. With SS hopper Mounted on a stand with wheels. ontrols for Stop & Start filling cycle, fill quanity with precision counter that controls the amount of product dispensed and the batch size.The speed of the auger is regulated by a seperate control. Hopper: Yes. Orientation: Vertical.

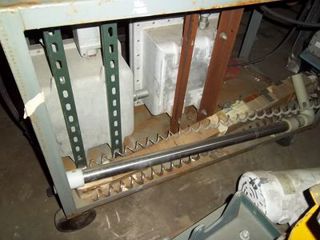

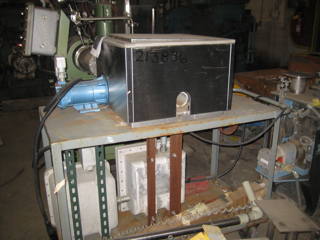

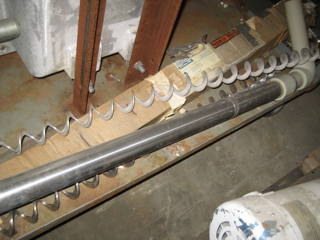

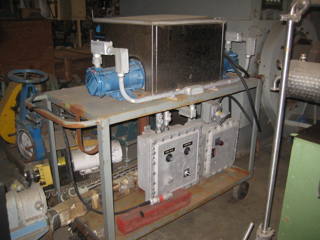

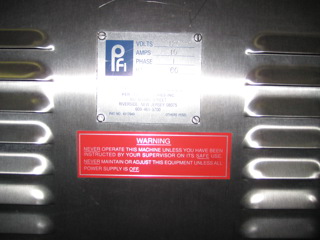

Accurate Dry Feeder Tuf-Flex volumetric series 600 with Vinyl Flex hopper 18" ID x 18" ID x 12" deep with a 48" long 304SS tube Unit has (2) 1/4 HP Pacific Scientific Motors, 1800 RPM, 90 DC volts One moter controls feed rate, second motor for hopper agitation. Mounted on a portable cart with wheels, Power cord and plug. Agitation and Feed rate control boxes mounted under the feeder All electricals are Class I Group D enclosures 28" wide (without screw) Hopper: Yes. Powered By: Electric. Screw Diameter: 50.8 mm (2 in). Screw Length: 1,219 mm (48 in). Orientation: Horizontal.
screw feeder with hopper 1.5 HP, 6.63:1 drive reducer, 30:18 pulley ratio, 158 rpm screw speed, belt driven, 360mm wide x 500mm deep x 370mm long trough with lump braker rotor, 4-chopper blades on rotor, driven by 3/4 HP, 3/50/115/230 volt, 1725 rpm motor, 200:1 reducer, 8.6 rpm rotor speed, 304 stainless steel feed hopper, square bottom with round top, 370mm wide x 370mm long x 570mm high, top 600mm diameter, bolt flat top, Hopper: Yes. Screw Diameter: 125 mm (4.9 in). Screw Length: 700 mm (27.6 in). Orientation: Vertical.

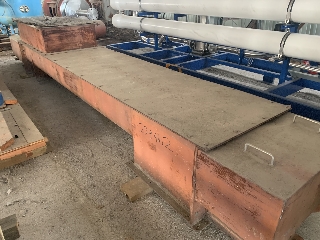

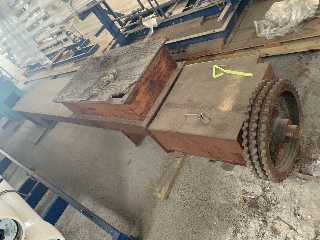

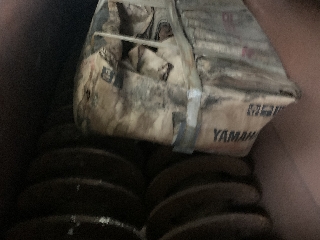

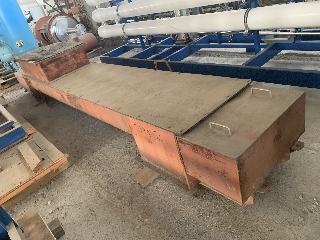

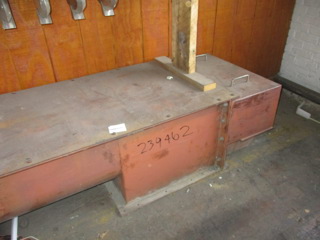

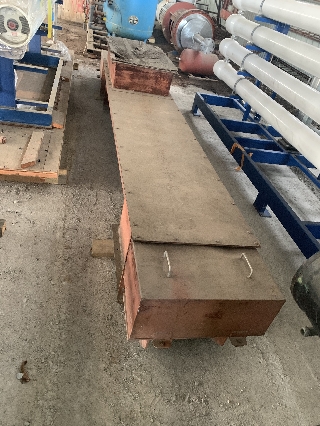

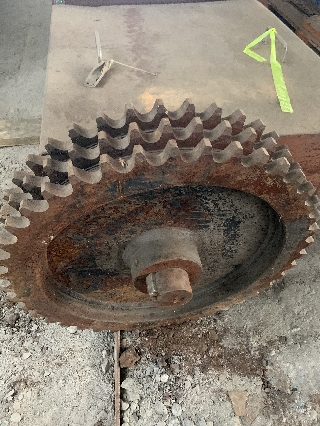

Twin screw Feed conveyor for a porcupine processor Inlet size is 48" x 30" Triple chain drive sprocket.(No motor or gearbox) Inlet Size: 1,219 mm (48 in). Outlet Discharge Diameter: 609.6 mm (24 in). Screw Diameter: 812.8 mm (32 in). Screw Length: 5,258 mm (207 in). Orientation: Horizontal.

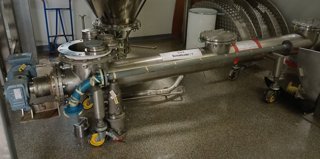

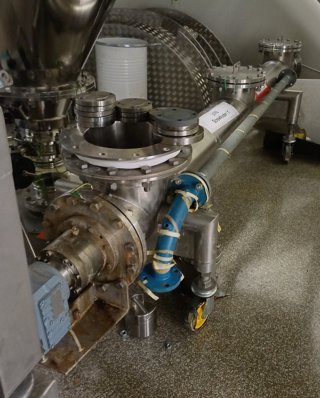

driven by 2-speed motor, 0.75 kw, 3/50/380-420/220-240 volt, 1400 rpm or 0.90 kw, 3/60/440-480/250-280 volt, 1690 rpm, hopper chamber also has lump breaker, shaft driven by same motor as the screw, openings top 1-300 mm (feed), 1-200mm (with bursting disc), Hopper: Yes. Inlet Size: 300 mm (11.8 in). Outlet Discharge Diameter: 125 mm (4.9 in). Powered By: Electric. Screw Diameter: 112 mm (4.4 in). Screw Length: 1,900 mm (74.8 in).
Used Feeders Feeders are designed to regulate or make uniform the flow of ingredients into a process from a bin or bulk hopper. Screw feeders such as Acrison, have a hopper that is agitated to prevent clumping, and a screw feeder to provide the uniform feed flow. Belt or apron feeders are conveyor belts that regulate the feed flow. Weigh belt feeds used weigh scales under the belt to regulate the ingredient addition to the process by weight. Pan feeders or vibratory feeders also provide a uniform flow into the process, however in this type of feeder the product is moved along by the vibration of the pan. Rotary feeders or star feeders are actually star valves, or rotary valves. The rpm of rotor inside the valve housing regulates the feed into the process.
