Used inverting filter centrifuges for sale: automated solid-liquid separation systems

Explore surplus and secondhand inverting centrifuges from IPP – clean discharge, ready to ship

IPP saves you time & money with in-stock inverting centrifuges for pharma and fine chemical processes

Featured Inverting Filter Centrifuges

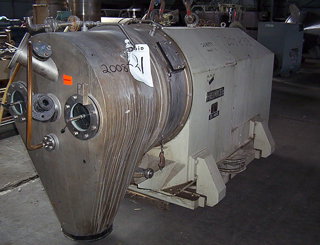

Hastelloy - C22 Heinkel HF800.1 Centrifuge-Inverting Filter

Type: Centrifuge-Inverting Filter

Manufacturer: Heinkel

Model: HF800.1

Condition: Used

Material: Hastelloy - C22

Basket Diameter: 800 mm (31.5 in)

Basket Depth: 340 mm (13.4 in)

Internal Rated 0.7 PSI @ 170 degrees F Electromechanical drive system 42" x 12' 6" frame, axial motor 4080 mm long x 2065 mm wide x 1900 mm high 6200 kg.

Filtration Area: 0.9 m² (9.7 ft²). Speed-RPM Maximum: 1,600. G Force: 1,138. Load Weight: 150 kg (330.7 lb). Washing: Yes.

Stainless Steel 316 Heinkel HF-600 Centrifuge-Inverting Filter

Type: Centrifuge-Inverting Filter

Manufacturer: Heinkel

Model: HF-600

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 600 mm (23.6 in)

Basket Depth: 220 mm (8.7 in)

All wetted parts are 316SS electro polished to 180 grit Designed for 10 to 30 gpm feed rate The unit has EPDM seals and a polypropylene filter cloth The axial drive is 1 HP 3/60/460 volt 1800 rpm.

Filtration Area: 0.4 m² (4.3 ft²). Speed-RPM Maximum: 1,940. G Force: 1,260. Main Drive Motor Power: 3.7 kW (5 HP). Washing: Yes.

Stainless Steel 316 Heinkel HF 600 Centrifuge-Inverting Filter

Type: Centrifuge-Inverting Filter

Manufacturer: Heinkel

Model: HF 600

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 600 mm (23.6 in)

Basket Depth: 220 mm (8.7 in)

cake capacity 55 liter centrifugal force: 1250 xg with translation powe rpack, with filtrate discharge tank 875 mm diameter x 700 mm straight side with a 500 mm top opening,, mounted on stand, with control cabinet and stairs

Filtration Area: 0.42 m² (4.5 ft²). Speed-RPM Maximum: 1,936. G Force: 1,250. Load Weight: 110 kg (242.5 lb). Main Drive Motor Power: 30 kW (40.2 HP). Controls: Yes. Washing: Yes.

Hastelloy - C22 Heinkel HF800 Centrifuge-Inverting Filter

Type: Centrifuge-Inverting Filter

Manufacturer: Heinkel

Model: HF800

Condition: Used

Material: Hastelloy - C22

Basket Diameter: 800 mm (31.5 in)

Basket Depth: 340 mm (13.4 in)

inverting filter centrifuge Rated 1150 RPM Solid Haynes Hastelloy C22 for all process parts 316SS for balance of exterior parts Clean in place nozzles for solids and filtrate housings Polished to 180 grit and electropolished solids and filtrate housings Electric Rotational Drive, Hydraulic Axial System, Maximum Speed 1600 rpm and G force of 1150 G's Bowl Diameter 800 mm or 32 ", Maximum Fill Weight 149 kg Maximum Fill Quantity 119 liters Nitrogen Purge Panel Designed for Axial Hydraulic Skid Built in 1990 for pharmaceutical industry

Filtration Area: 0.9 m² (9.7 ft²). Speed-RPM Maximum: 1,600. G Force: 1,150. Load Weight: 149 kg (328.5 lb). Washing: Yes.

When your process requires gentle, efficient solid-liquid separation with minimal product loss, inverting filter centrifuges provide superior performance across critical industries. With more than 47 years of process equipment expertise, IPP offers immediate access to used inverting filter centrifuges sourced from 20 complete plant sites and included in our inventory of over 15,000 ready-to-ship pieces of equipment. Choosing used inverting filter centrifuges from IPP helps companies save capital, accelerate project schedules, and achieve excellent product recovery.

Inverting filter centrifuges feature a unique design where the filter cloth is mechanically inverted during discharge, gently removing solids without damaging fragile crystals or products. These machines are ideal for high-purity applications requiring low residual moisture, minimal contamination, and easy cleaning between batches.

Primary uses across industries

In pharmaceutical production, inverting filter centrifuges recover active pharmaceutical ingredients (APIs) and delicate intermediates.
In fine chemical manufacturing, they separate and purify specialty chemicals and catalysts.
In food and beverage processing, they handle specialty starches, proteins, and sensitive food ingredients.
In biotechnology, they separate biomass or highly sensitive biological materials.
In specialty materials industries, they process fine powders and high-value solids needing gentle handling.

Types of materials processed

Fragile crystals or sensitive solids requiring gentle separation
Slurries with low solids concentration
Fine chemicals, APIs, biotech materials, and specialty food ingredients
Products requiring extremely low residual moisture after separation

Common materials of construction

Inverting filter centrifuges are built to meet sanitary, chemical, and high-purity standards:

Stainless steel for food-grade, pharmaceutical, and general chemical applications
Hastelloy for aggressive or highly corrosive chemical environments
Specialty alloys or coatings for customized chemical compatibility

Key features of inverting filter centrifuges

Gentle solids discharge via mechanical cloth inversion
High recovery rates with minimal product breakage
CIP (clean-in-place) design for sanitary or multi-product operations
Fully enclosed design for containment and operator safety
Efficient washing and dewatering in a single operation

Centrifuge-Inverting Filter FAQ

Have questions about Inverting Filter Centrifuges or our services? Learn more about our products and why customers choose IPP.

We offer several options for shipping, including internationally. Should the customer choose, they can arrange their own shipping.

About 98% of our used equipment comes from plant-type liquidations in which we are required to not sell the systems or plants as a whole back into the marketplace. Our inventories come from those pieces that didn’t sell at the site but still have great value.

Pharmaceutical, fine chemical, biotech, and specialty food industries rely heavily on inverting filter centrifuges for gentle, high-purity separation.

Inverting filter centrifuges gently discharge solids by inverting the filter cloth, preserving delicate products, while traditional basket centrifuges typically rely on scraping or manual removal.

Regular inspection and maintenance of the filter cloth, mechanical inversion system, seals, and drive components ensures consistent performance and extended machine life.

Buying used from IPP saves up to 70% compared to new equipment, offers immediate delivery, supports sustainability, and provides access to 47 years of trusted industry expertise.

Learn more about advanced centrifuge separation techniques from Chemical Processing.

Find your inverting filter centrifuge at IMS

Search the IMS inventory or contact IPP’s equipment experts to secure an inverting filter centrifuge for your high-purity or sensitive separation needs. With ready-to-ship inventory, IPP helps companies meet demanding quality standards, shorten lead times, and control equipment costs.
