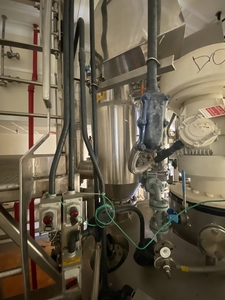

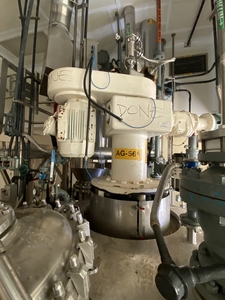

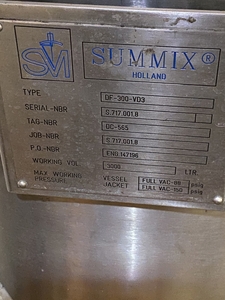

Type: Dryer- Nauta / Conical
Manufacturer: Summix Holland
Model: DF-300-VD3
Condition: Used
Material: Hastelloy - C276
Capacity: 3,000 L (792.5 gallons)
Vessel Pressure: 6.1 bar (88 psi)
Alloy C276 Vacuum Conical Screw Dryer coil jacket Shell rated 88FV 103" diameter x 117" length Welded dished top head Orbital and screw agitation
Vessel Temperature: 200 °C (392 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 200 °C (392 °F). Dust Collection: Yes.

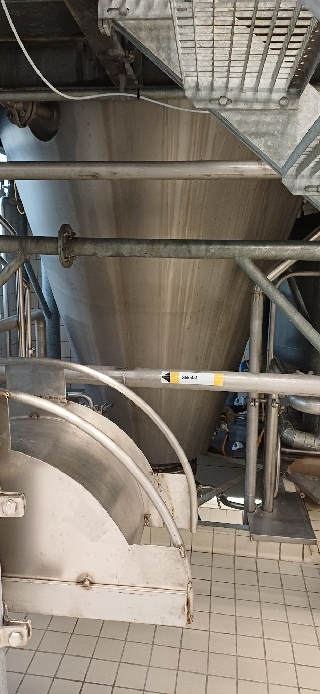

Type: Dryer- Nauta / Conical

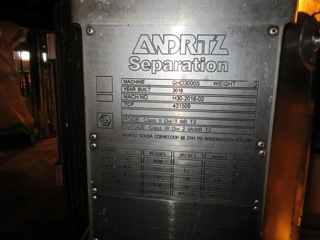

Manufacturer: Andritz
Model: GHD3000S
Condition: Used
Material: Stainless Steel 316
Capacity: 2,998 L (792 gallons)
Vessel Pressure: 9 bar (130 psi)
Vessel Temperature: 54.4 °C (130 °F). Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 54.4 °C (130 °F). Screw Heated: Yes. Screw Pressure: 3.4 bar (50 psi). Screw Temperature: 54.4 °C (130 °F). Dust Collection: Yes. Vacuum System: Yes.

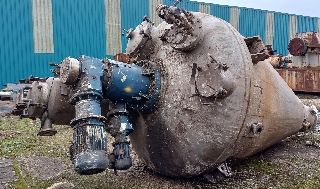

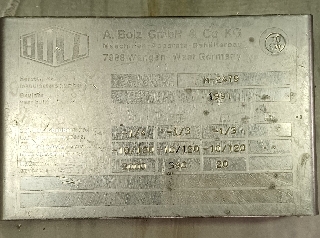

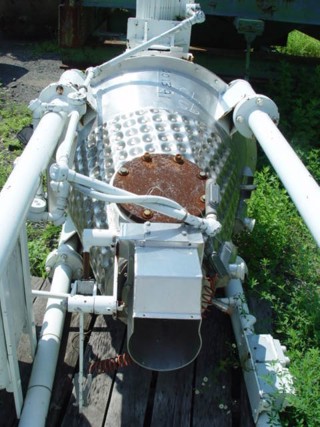

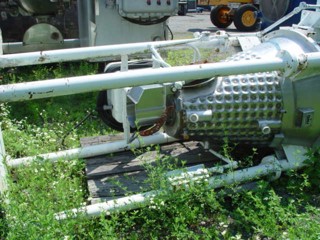

Type: Dryer- Nauta / Conical
Manufacturer: Krauss Maffei
Model: MT 2/300
Condition: Used
Material: Stainless Steel 316
Capacity: 2,000 L (528.3 gallons)
Vessel Pressure: 2 bar (29 psi)
Jacket conical screw mixer/dryer with top mounted filter, screw 7 bar @ 150 degrees C (18.5 liter), single internal 316L (1.4404) stainless steel screw which is cored for steam heating, screw bottom driven by 11kw 3/50/380 volt 1500 rpm Eex motor, carriage motor 1.1 kw, 3/50/380 volt 1500 rpm Ex motor, bottom discharge vale driven by 0.75kw, 3/50/380 volt 1400 rpm Ex motor, dished top with a 5.5 square meter 316L (1.4404) stainless steel jacketed reverse jet filter, manufactured by Kilsch Apparatebau Gmbh, fabrik #2184/2, pressure -1/2 bar @ 170 degrees C (750 liter), bolt dished top, (4) jets, TUV certified
Vessel Temperature: 170 °C (338 °F). Jacket Pressure: 7 bar (101.5 psi). Jacket Temperature: 170 °C (338 °F). Screw Heated: Yes. Screw Pressure: 7 bar (101.5 psi). Screw Temperature: 150 °C (302 °F).

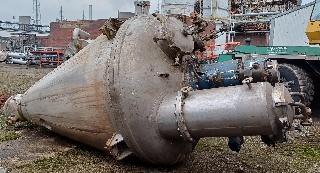

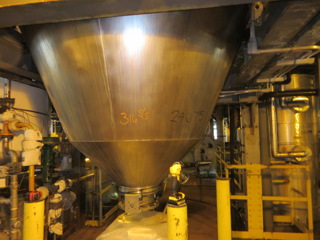

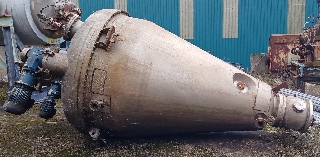

Type: Dryer- Nauta / Conical
Manufacturer: Krauss Maffei
Model: TMT 20/300
Condition: Used
Material: Stainless Steel Austenitic
Capacity: 20,000 L (5,283 gallons)
Vessel Pressure: 2 bar (29 psi)

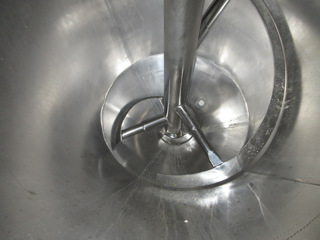

20 CuM, (704 CuFt) Krauss Maffei/Titus Nauta type Blender/Dryer Internal has a 4 micron polished finish The Dryer has an internal rotating scew agitator, rated speed is 10 to 100 rpm Screw carriage rated speed is rated .035-.35 rpm Vessel diameter is 3900mm External bottom mounted screw drive. Pneumatically activated product discharge valve Unit has a top mounted 6 sqM 316Ti jacketed bag filter
Vessel Temperature: 150 °C (302 °F). Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 150 °C (302 °F). Dust Collection: Yes.
For precision drying of heat-sensitive powders, slurries, and pastes, Nauta dryers offer efficient, low-shear mixing and moisture removal in a compact, conical design. With over 47 years of process equipment expertise, IPP gives you immediate access to used Nauta dryers sourced from 20 complete plant sites and included in our inventory of over 15,000 ready-to-ship pieces of equipment. Choosing a second-hand Nauta dryer from IPP allows manufacturers to reduce lead times, lower costs, and maintain high product integrity.
Nauta dryers, also known as conical screw dryers, use a rotating screw arm and orbital arm to gently lift and fold product while applying indirect heat and vacuum. This unique motion enables thorough, homogeneous drying with minimal mechanical impact, making them ideal for fragile or complex materials.
Nauta dryers are built to meet high purity and durability standards:
Learn more about conical screw drying technology from Pharma Manufacturing.
Search the IPP inventory or contact IPP’s equipment experts to find a high-quality used Nauta dryer for your application. With ready-to-ship units and expert support, IPP helps you maintain product quality while controlling costs.
