Buy your unused & surplus, second hand / used Tubular Reactors from IPP. Choose from 6 models in stock now for immediate delivery.

Used Batch Reactor Vessels

Because most industrial processes are centered in some type of batch reactor, there is a wide variety to choose from in the market. IPP's selection is no different with over 1,000 different reactor vessels in stock covering all common reactor materials of construction, a wide range of pressure reactor ratings and supported temperature ranges, both horizontal and vertical reactor orientations, an array of agitated reactor styles as well as specific process reactor types like slurry, oscillatory baffled, laboratory, bench scale, catalyst and Buss loop reactors among others. If you are looking for hydrogenation reactors, check out stock numbers 218175, 217830, 90768.

Over 60 Different Chemical Reactor Manufacturers In Stock

Our broad array of batch and continuous reactors were produced by over 60 different companies, ranging from leading chemical reactor manufacturers like Pfaudler, De Dietrich, Brighton and Paul Mueller to custom fabrication companies like Roben Manufacturing Inc.

Guide to Sorting IPP's Reactor Types

Narrow your search by choosing one of the product sub-groups first. We sort by the 2 primary characteristics that distinguish different types of reactors:

Is the reactor vessel lined, either with glass or a metal like lead or nickel?
Material of construction - various forms of steel and alloy steels are used because of the diversity in common reactants' corrosive nature and chemical properties.

Large Selection of Reglassed and Glass Lined Reactors

Find your glass-lined reactor in one of the industry's largest selections of new/unused, good quality used and reconditioned glass reactors by well-known glass lined reactor manufacturers like Pfaudler and De Dietrich. IPP has the exclusive ability to redo the glass in chemical reactors through its affiliate partnership with Pfaudler known as Universal Glasteel Equipment (UGE).

Variety In Reactors' Construction

Choose from reactors made from carbon steel (CS), various grades of stainless steel (SS) such as 304, 316, 316L or from reactors and vessels made from high performance cobalt and nickel alloys like HASTELLOY® C-276, Special Metals' Monel 400 & K-500, Inconel 600 & 625, Incoloy 904 as well as from Titanium and Zirconium alloys.

Most chemical reactors are jacketed reactors where a heat transfer fluid flowing in the space between the jacket and the reactor vessel outer wall is used instead of a heating coil. The common types of jackets are:

Conventional / Simple - outer cylinder encloses the reactor
Dimple Jacket - hemispherical dimples pressed into the jacket plate that wraps the reactor, good for low temperature heat transfer and pressures < 300 psi
Partial / Half Pipe Coil Jacket - pipe is cut in half the long way then wrapped around reactor in helix, most versatile design used for both high and low temperature heat transfer and high pressure applications

Search for more Tubular Reactors Request a Quote

Featured Tubular Reactors

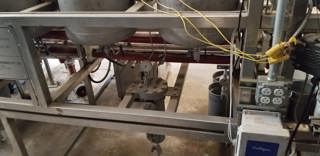

Stainless Steel 316 Tubular Reactor

Type: Reactor

Subtype: Tubular

Manufacturer: Snowtech Hydro Cracker & Fisher Tropsch

Condition: Used

Material: Stainless Steel 316

Tube Length: 15.7 mm (0.62 in)

Tube Temperature: 500 °C (932 °F)

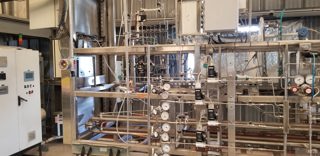

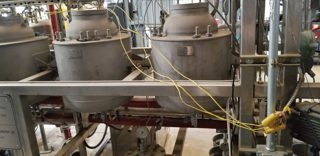

Pilot plant, including an Agilent Tech Model 7890A-GC. Designed to operate at up to 725 psig and 572 degrees F in the auxiliary process vessels and 932 degrees F in the reactor tubing. The current set up includes one 5/8" tube reactor about 3' high and holds around 70 cc of catalyst. The second reactor system has a 1" tube reactor designed to hold about 387 cc of catalyst. The skid mounted system is equipped with two independent pilot reaction systems and common utilities. The systems are designed with the capability to create three reactor inlet gas streams by Brooks Mass flow controllers. It also has the capability to flow hydrogen and an inert by the mass flowmeters where it can be mixed in with the liquid feed. Each system also has four Knock out pots located down stream of the reactor. Includes all controls.

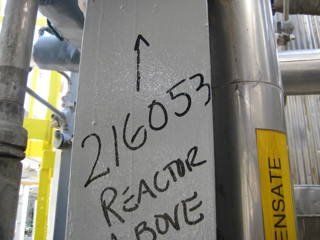

Carbon Steel Tubular Reactor

Type: Reactor

Subtype: Tubular

Manufacturer: Stansteel Corporation(Leader Works)

Condition: Used

Material: Carbon Steel

Orientation: Vertical

Tube Length: 2,438 mm (96 in)

9,832 lbs./hr., Methanol Converter used to produce Formaldehyde. 321 SS tube sheets, 321 SS Heads Shell side rated for 50 psi at 650 degrees F Bolted top head vapor space and catylyst bed is 6' diameter x 69.5" to top of head Bottom section (tubesheet and bolted bottom head) is 6' diameter x 10' straight side 52" vapor space above catylyst bed. 701 straight tubes, 3/4" diameter x 14 Gauge x 8' long 1100 square feet of conversion surface area. Nozzle schedule is as follows: 20" man way, One 5.75" sight glass, one 12", Two 10", Three 8" nozzles, three 6", One 4", Four 2" and four 1.5" nozzles.

Tube Material: Stainless Steel 321. Tube Pressure: 2.1 bar (30 psi). Tube Temperature: 343.3 °C (650 °F).

Stainless Steel 304 Tubular Reactor

Type: Reactor

Subtype: Tubular

Model: Tubular loop reactor

Condition: Used

Material: Stainless Steel 304

Tube Length: 243,840 mm (9,600 in)

Tube Temperature: 204.4 °C (400 °F)

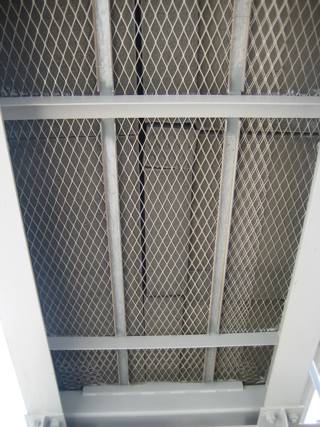

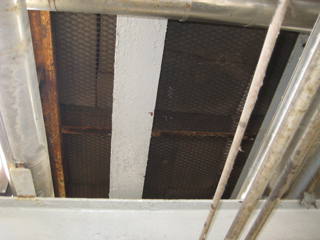

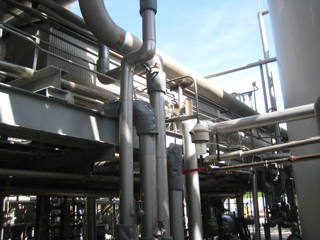

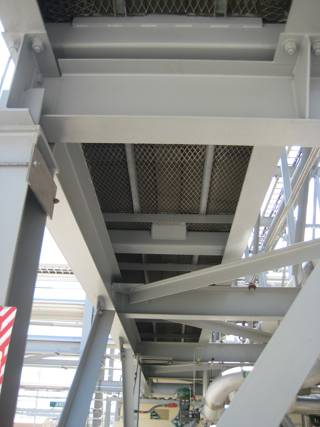

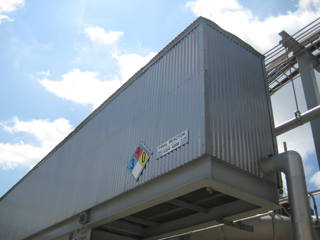

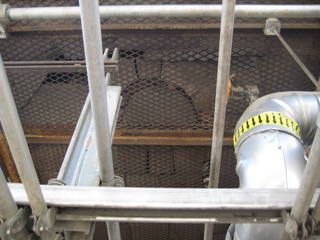

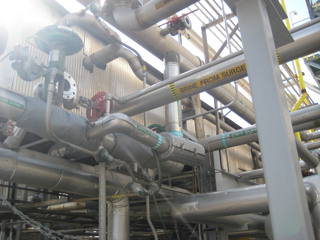

Function: Amination final reactor Pipe Schedule: 80 Shape: Serpentine form Pressure Rating: 1,234 psi Installation: Overhead rack with protective "dog house" Insulation: Fully insulated Shipping Weight: 24,400lbs

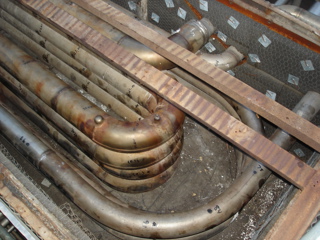

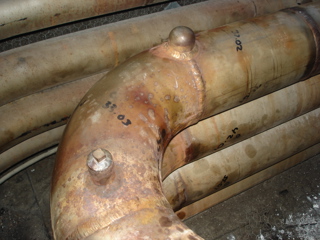

Stainless Steel 304 Tubular Reactor

Type: Reactor

Subtype: Tubular

Manufacturer: Fox Fabricators

Model: Tubular loop reactor

Condition: Used

Material: Stainless Steel 304

Tube Length: 182,880 mm (7,200 in)

Tube Pressure: 85.1 bar (1,234 psi)

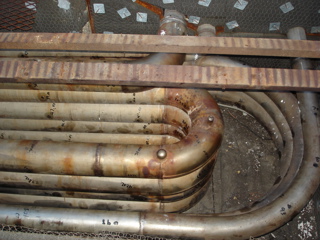

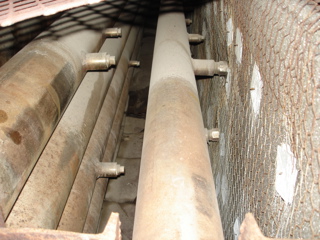

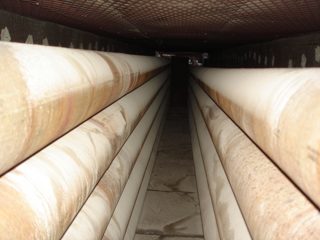

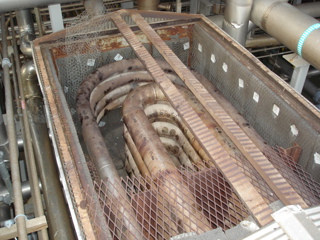

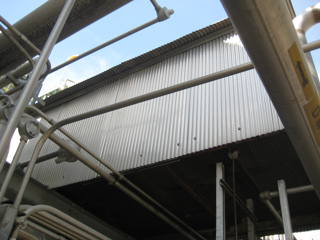

Amination final reactor Pipe specifications: 8 inch seamless schedule 80 pipe fabricated in serpentine form Pressure rating: 1,234 psi Installed in an overhead rack with protective "dog house" Insulation: Fully insulated

Tube Temperature: 204.4 °C (400 °F).
