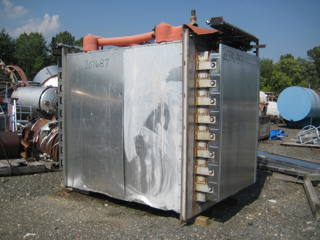

25" wide x 48" long x 36" high, Steam 120 lbs/hr @ 60-80 psig, Water 5 gpm @ 40-60 psig, Chamber rated 45 psi @ 300 deg F Compressor air 2 cfm @ 80-100 psig, Hinged front door Pressure: 3.1 bar (45 psi). Single Entry/ pass through: Single entry. Temperature: 148.9 °C (300 °F).
Designed for pass thru loading and unloading, with quick open doors front and back.
Original Installation to a clean room

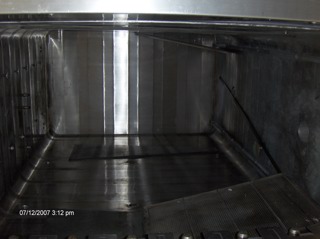

316 SS lined chamber
Modified and re-rated in 1993 by Industrial Fabricating and Engineering in Howell, NJ.
Shell rated for 45 psi/FV at 300 degrees F
Shell thickness is 0.197 & Jacket thickness is 0.236

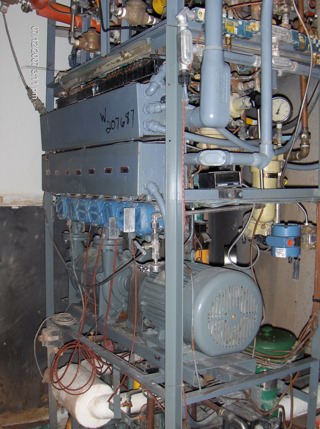

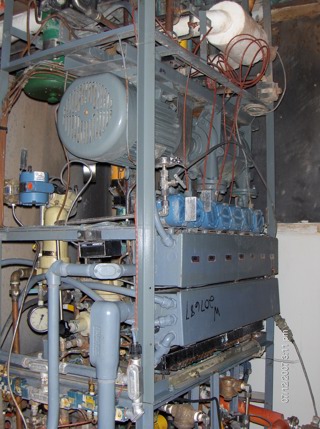

Includes vacuum skid with electric water seal vacuum pump, approximately 15 sq.ft condenser, loop controls and transmitters by Rosemont, and Automatic control valves for process liquids. Control Panel included with operator interface with Auto/Start/Stop/E-Stop push button station, Visual alarm windows, and digital readouts for time cycles, chamber and Jacket pressure and temperature. Chart recorder also included. Pressure: 3.1 bar (45 psi). Single Entry/ pass through: Pass through. Temperature: 148.9 °C (300 °F).
