Plant Types: Gasification
Subtypes: Refinery Unit
Sour Water Stripper Unit Available Separately from a 3,000 Metric Ton/Day Clean Syngas Refinery Gasification Plant for Sale IPP Stock #600759
Sour Water Stripper Unit: This unit cleans up the sour water to < 20 mg/l ammonia equivalent, then recycles water back to the Carbon Extraction Unit.
Plant Types: Gasification
Subtypes: Refinery Unit
Capacity: 33 M3/hr
Grey Water Treatment Unit Available Separately from a 3,000 Metric Ton/Day Clean Syngas Refinery Gasification Plant for Sale IPP Stock #600759
Grey Water Treatment Unit: Prepares 33 M³/Hour of grey water (soot in water) for biological treatment.
Plant Types: Gasification
Subtypes: Refinery Unit
(2) Sulfur Recovery Units Available Separately from a 3,000 Metric Ton/Day Clean Syngas Refinery Gasification Plant for Sale IPP Stock #600759
Sulfur Recovery Unit: Two independent Claus units with catalytic converters using Parsons technology. Energy is recovered in this unit by the generation of 20 bar, 6 bar and 1 bar steam. Tailgas treatment unit is included using Ucarsol MDEA absorption technology.
Plant Types: Gasification
Subtypes: Refinery Unit
Acid Gas Removal Unit Available Separately from a 3,000 Metric Ton/Day Clean Syngas Refinery Gasification Plant for Sale IPP Stock #600759
Acid Gas Removal "Selexol" Unit: Hydrogen sulfide is removed using UOP Selexol technology. Energy is recoveredin this unit with a 150 kW liquid turbine‐generator and a 1.6 MW gas expansion turbine‐generator.
Plant Types: Gasification
Subtypes: Gasification
Tail Gas Treatment Unit Available Separately from a 3,000 Metric Ton/Day Clean Syngas Refinery Gasification Plant for Sale IPP Stock #600759
- This unit was installed in 2000 as part of a gasification facility to convert heavy refinery residues into clean syngas. The facility shut down in early 2013. The entire gasification facility is available for sale.
- The unit was designed by ABB Lummus Global and utilizes Parsons technology for the removal of approximately 2.2% of hydrogen sulfide (H2S) and sulfur dioxide (SO2) from 11,000 kg/hr of tailgas leaving the Sulfur Recovery Unit (SRU) section which is also available for purchase. The MDEA flow rates in the contactor and regeneration sections are 100 m3/hr.
-
To View More Details on this Unit, Please Click on the Link Below: Tailgas Treatment Unit Brochure
Plant Types: Gasification
Subtypes: Gasification

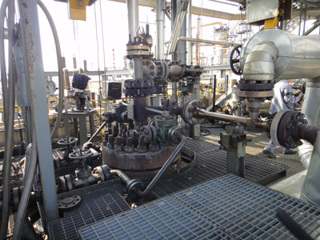

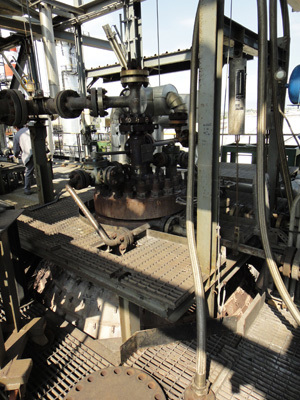

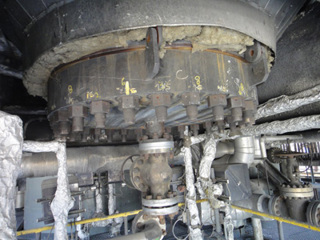

(2) Texaco/GE Gasifiers Down-Flow, Quench Type
- Previously part of a gasification system used in refinery gasification
- Specifications:
- 2.8 M (9.2') dia. x 10.2 M (33.5') Inconel 825/CS
- 1,000 PSI @ 800 degrees Fahrenheit (69 bar @ 430 degrees Celsius)
- 59 Metric Ton/Hr (1,400 Metric Ton/Day) of heavy refinery residue feedstock
- 130 Metric Ton/Hr (3,000 Metric Ton/Day) of clean syngas
- Included with these gasifiers:
- (2) 3.2 M (10.5') dia. x 7.9 M (25.9') 316LSS/CS scrubbers
- (2) 36 CBM/Hr @ 99 bar Uraca feed pumps
- (10) Monel Oxygen double-block-and-bleed valves
- Monel Oxygen piping
- These Texaco/GE gasifiers utilize quench technology because:
- best choice for gasifying feedstocks such as refinery residues that have a high metal concentration
- proven success record in the refinery industry
- reliability and simplicity of operation
- offers superior environmental benefits
This Gasification Unit is Available Separately from a 3,000 Metric Ton/Day Clean Syngas Refinery Gasification Plant for Sale IPP Stock #600759
Plant Types: Gasification
Subtypes: Gasification
Carbon Extraction Unit Available Separately from a 3,000 Metric Ton/Day Clean Syngas Refinery Gasification Plant for Sale IPP Stock #600759
Carbon Extraction Unit: Soot from gasification is transferred to a recycled naphtha stream and then recycled to the heavy refinery tar feed stream using GE technology.
To View More Details on this Unit, Please Click on the Link Below: Carbon Extraction Unit Brochure
Plant Types: Gasification
Subtypes: Gasification
Gas Cooling Unit Available Separately from a 3,000 Metric Ton/Day Clean Syngas Refinery Gasification Plant for Sale IPP Stock #600759
Gas Cooling Unit: Energy is recovered in this unit by generation of 20 bar, 15 bar and 6 bar steam. Carbonyl sulfide hydrolysis reactors included. Technology by ABB Lumus Global.
