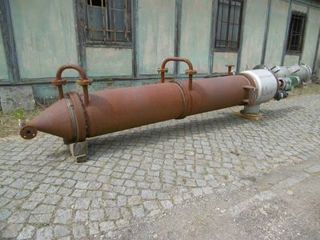

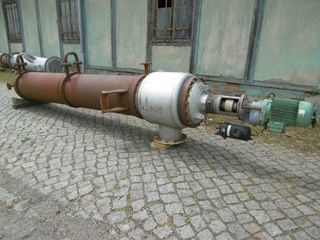

72.6 kg/h (160 lb/h) Stainless Steel 316 Wiped/Thin Film Evaporator For Sale IPP# 100417

Type:

Evaporator

Subtype:

Wiped/Thin Film

Manufacturer:

Leybold-Heraeus

Model:

KD300

Condition:

Used

Material:

Stainless Steel 316

Evaporation Rate:

72.6 kg/h (160 lb/h)

Total Heat Transfer Surface Area:

3 m² (32.3 ft²)

Diameter:

500 mm (19.7 in)

Height:

3,800 mm (149.6 in)

Orientation:

Vertical

Pressure:

2 bar (29 psi)

Temperature:

200 °C (392 °F)

Internal Condenser:

Yes

Internal Condenser size:

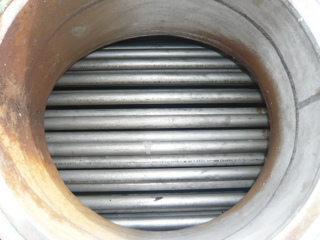

5 m² (53.8 ft²)

Vacuum:

Yes

Nozzle Schedule:

product 40mm; heating 50mm; vac 250mm; cooling water 40mm.

Top Head type:

Dish

Top Head Fastening:

Clamped

Bottom Head Type:

Cone

Bottom Head Fastening:

Clamped

Mechanical Seal on Shaft:

Yes

Power Transmission:

Gear

Drive Motor HP:

2 kW (2.7 HP)

Drive Motor RPM:

1,445

Drive Motor Voltage:

240/415

Electrical Phase:

Drive Motor Hertz:

Additional Info:

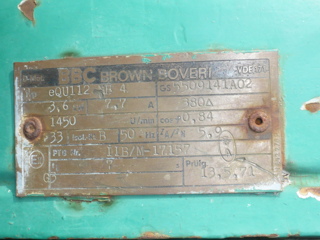

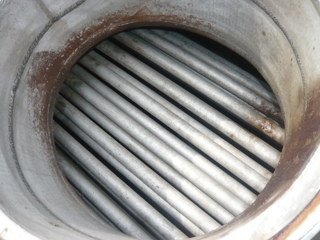

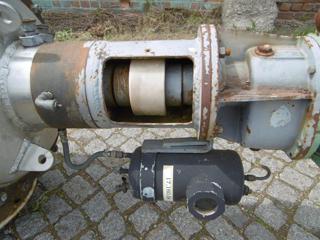

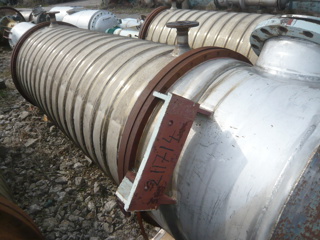

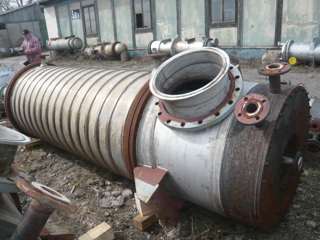

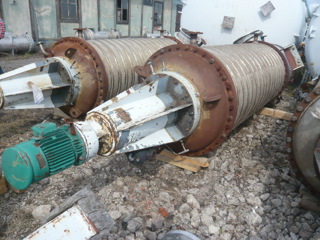

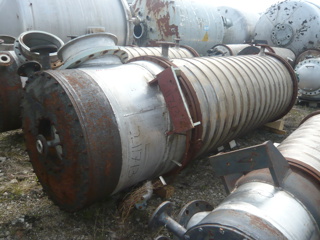

RECONDITIONED, 20-300 Kg/sq m/hr shortpath evaporator. System working pressure 20x10-1x10 mbar. System consists of (1) Leybold KD300, 32.2 sq ft (3 sq meter) 316SS vert wiped film evaporator, SN 1982/1. W/53.8 (5 sq meter) int condenser. jkt rated 6 bar @ 250 deg C. Condenser rated 6 bar @ 80 deg C. (3) wiper strands, wiper speed 106 rpm. Unit driven by 2 KW, 3/50/240/415 volt, 105/1445 rpm non-flameproof geared motor. Mechanical seal.

IPP# 100417, 72.6 kg/h (160 lb/h) Stainless Steel 316 Wiped/Thin Film Evaporator For Sale
