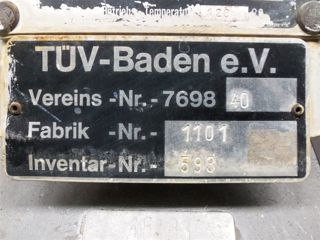

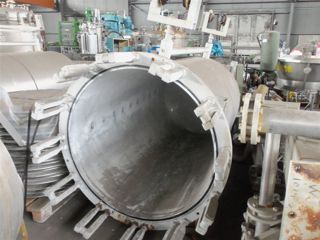

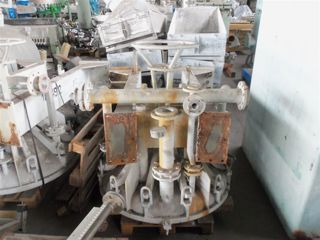

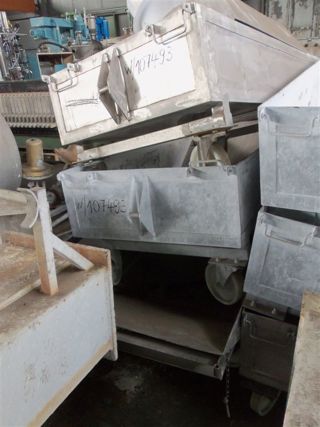

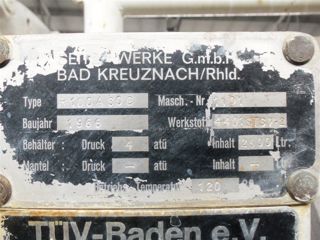

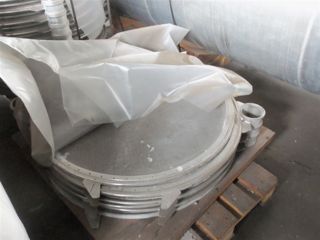

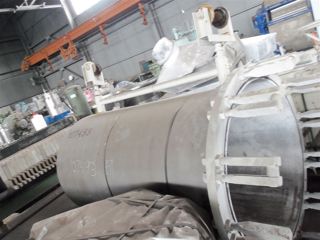

1.4401/1.4571 (316SS/316SS/TI) horizontal tank Rated 4 ATU @ 120 degree C Filter housing retracts on an overhead rail for cleaning the filter (1) clamped head with ratchet closure Equipped with (30) leaves Filter housing has cake level detector and wash nozzles for the leaves mounted under the leaves fixture Equipped with (3) 1.4571 cake bins, 800mm wide x 1700mm long with casters Floor space requirements: 6500mm long x 1600mm wide x 2600mm high Designed to German TUV standards
Type: Filter
Subtype: Pressure Leaf
Manufacturer: Seitz Werke (Germany)
Model: Hercules-R100A30C
Condition: Used
Material: Stainless Steel 316
Filtration Area: 39.6 m² (426.3 ft²)
Diameter: 1,200 mm (47.2 in)
vertical leaf pressure filter Pressure rating: 4 ATU Filter housing retracts on an overhead rail for cleaning the filter. Filter tank 1200mm diameter x 2100mm straight side, (1) welded dished head, (1) clamped head with ratchet closure (30) leaves. Filter housing has cake level detector and wash nozzles for the leaves mounted under the leaves fixture. Equipped with (3) 1.4571 cake bins, 800mm wide x 1700mm long with casters. Designed to German TUV standards.
Orientation: Vertical. Pressure: 3.9 bar (56.9 psi). Temperature: 120 °C (248 °F).
Type: Filter
Subtype: Pressure Leaf
Manufacturer: Seitz
Model: Radium RZ60A/6GCW
Condition: Used
Material: Stainless Steel 316
Filtration Area: 5.3 m² (56.5 ft²)
Orientation: Vertical
Internal (390 liter) Jacket (50 liter) (21) stainless steel plates 600mm Diameter, 750mm diameter x 1000mm straight side, Cake volume: 105 liter
Pressure: 6 bar (87 psi). Temperature: 133 °C (271.4 °F). Jacket: Yes. Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 133 °C (271.4 °F).
Type: Filter
Subtype: Pressure Leaf
Manufacturer: Sparkler
Model: 18-S-7
Condition: Used
Material: Stainless Steel 316
Filtration Area: 1.05 m² (11.3 ft²)
Pressure: 4.1 bar (60 psi)
0.141 " tank thickness with scavenger plate 0.414 CuFt cake capacity 7 plates (number of plates included)
Temperature: 176.7 °C (350 °F).
Type: Filter
Subtype: Pressure Leaf
Manufacturer: BHS Werk
Model: 760/80/15+1
Condition: Used
Material: Stainless Steel 316
Filtration Area: 6.3 m² (67.8 ft²)
Diameter: 760 mm (29.9 in)
1090 liter - volume measurement in liters jacketed - type of equipment centrifugal discharge pressure leaf filter - type of filter Rated 72 PSI @ 302 degrees F internal; 72 psi, 90 liter @ 302 degrees F in the jacket (15) plates - number of plates in the filter on 80 mm spacing - distance between plates 55mm cake thickness Vessle is 1000 mm diameter. 0.42KW drive for centrifugal cake discharge
Pressure: 5 bar (72 psi). Temperature: 150 °C (302 °F). Jacket: Yes. Jacket Pressure: 5 bar (72 psi). Jacket Temperature: 150 °C (302 °F).
