Stainless Steel 316 Pressure Leaf Filter - IPP# 206569

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Seitz

Model: Radium RZ60A/6GCW

Condition: Used

Material: Stainless Steel 316

Filtration Area: 5.25 m² (56.5 ft²)

Orientation: Vertical

Internal (390 liter)
Jacket (50 liter)
(21) stainless steel plates 600mm Diameter, 750mm diameter x 1000mm straight side,
Cake volume: 105 liter

Pressure: 6 bar (87 psi). Temperature: 133 °C (271 °F). Jacket: Yes. Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 133 °C (271 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Sparkler

Model: 18-S-7

Condition: Used

Material: Stainless Steel 316

Filtration Area: 1.05 m² (11.3 ft²)

Pressure: 4.14 bar (60 psi)

0.141 " tank thickness
with scavenger plate
0.414 CuFt cake capacity
7 plates (number of plates included)

Temperature: 177 °C (350 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap Ag (Switzerland)

Model: 5213/25

Condition: Used

Material: Stainless Steel 316

Filtration Area: 15 m² (161 ft²)

Diameter: 1,100 mm (43.3 in)

Test pressure: 11.9 bar
centrifugal discharge
Total capacity 539 gals (448 Imperial gals)
Unit has (20) 39" diameter discs
Type A for wet cake discharge.

Pressure: 6.9 bar (100 psi). Overall Length: 1,500 mm (59.1 in). Jacket: Yes. Jacket MOC: Carbon Steel.

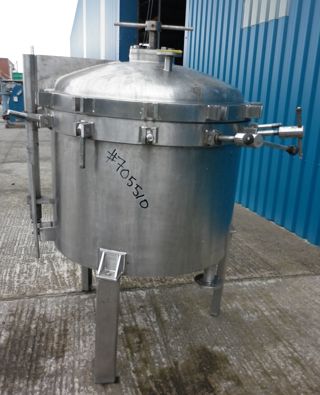

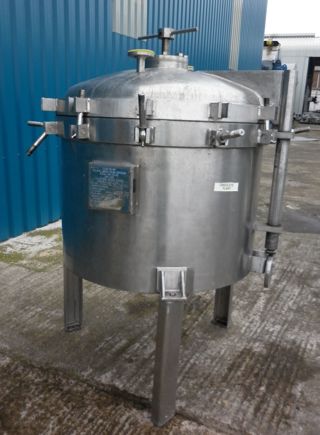

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Eurovent

Model: 85-S-15

Condition: Used

Material: Stainless Steel 316

Filtration Area: 7.3 m² (78.6 ft²)

Diameter: 950 mm (37.4 in)

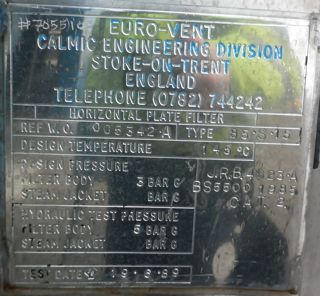

Ref works order #005342/A
Cake space 7.69 cubic feet (0.218 cubic meter)
horizontal plate design
Manual plate tensioning mechanism on top cover.

Orientation: Vertical. Pressure: 3 bar (43.5 psi). Temperature: 145 °C (293 °F). Overall Length: 650 mm (25.6 in).
