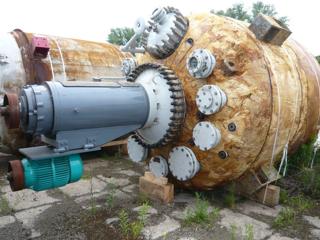

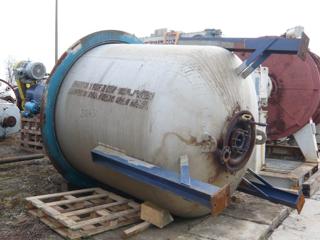

2,040 L (538.9 gallons) Glasslined Batch-Type Agitated Reactor For Sale IPP# 202709

IPP# 202709, 2,040 L (538.9 gallons) Glasslined Batch-Type Agitated Reactor For Sale

Condition:

Used

Material:

Glasslined

Manufacturer:

DeDietrich

Capacity Design:

2,040 L (538.9 gallons)

Internal Pressure:

6 bar (87 psi)

Internal Full Vacuum:

Yes

Jacket Pressure:

6 bar (87 psi)

Jacket Temperature:

200 °C (392 °F)

Agitation:

Yes

Baffle Type:

Beavertail

Baffle Details:

Baffle type: Beaver tails

Top Head Type:

Dish

Bottom Head Type:

Dish

Manway:

Yes

Nozzle Schedule:

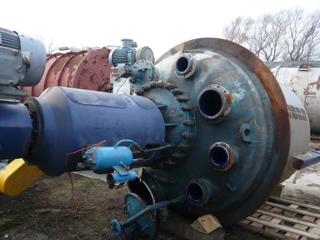

Openings: top- 350 x 450 mm manway with cover and 125 mm sight glass, 3-100 mm, 2-200 mm;1-100 mm bottom outlet.

Additional Info:

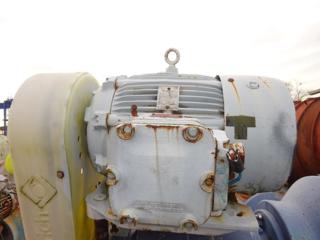

agitated jacketed reactor. contract number 400978. With glass 3008. Designed Code CODAP 85. 1400 mm diameter x 1611 mm from top flange to bottom discharge nozzle, mechanical seal on shaft with AAA lubricator type YPE A0168. Driven by 4.0 kW 3/50/220/ 380V, 1420 RPM motor.
