Name: Hastelloy - Other Clad Hitachi Batch-Type Agitated Reactor
Brand: Hitachi
SKU: 203332

Overview

Type:

Reactor

Subtype:

Batch-Type Agitated

Manufacturer:

Hitachi

Condition:

Used

Material:

Hastelloy - Other

Clad:

Yes

Capacity (Design):

140 L (37 gallons)

Pressure Vessel

Internal Pressure:

10.5 bar (152.3 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

400 °C (752 °F)

Jacket/Internal Coil

Jacket Pressure:

10.5 bar (152.3 psi)

Jacket Temperature:

325 °C (617 °F)

Jacket Material of Construction:

Carbon Steel

Dimensions

Orientation:

Horizontal

Agitation System

Agitation:

Yes

Additional Info:

Purpose: polymerization reactor designed for continuous operation to react, mix, and dry high viscosity materials Twin rotor shafts are heated and rated -1/15 bar @ 400 degrees C. Hastelloy C clad Shell, Hastelloy C276 Shaft and Screws

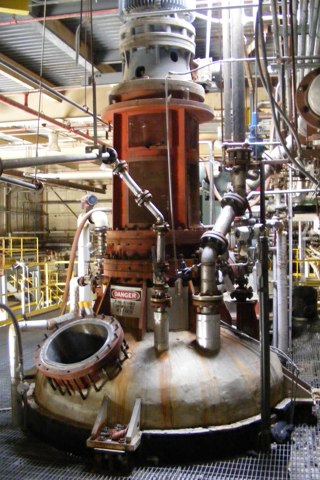

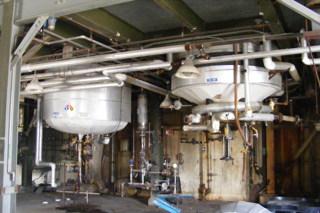

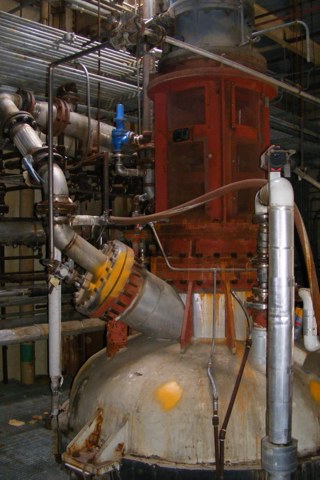

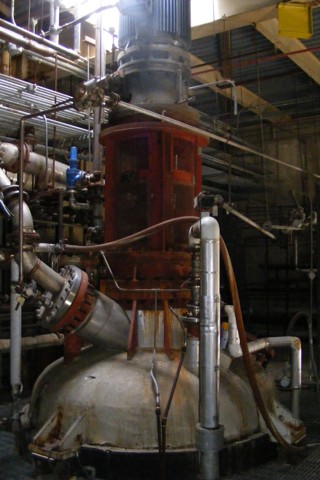

Stainless Steel 316 Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Hitachi

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 5,678 L (1,500 gallons)

Internal Pressure: 7.8 bar (113.8 psi)

Intended use: high temperature reactor for adhesives and viscous materials
Head thickness: 18mm

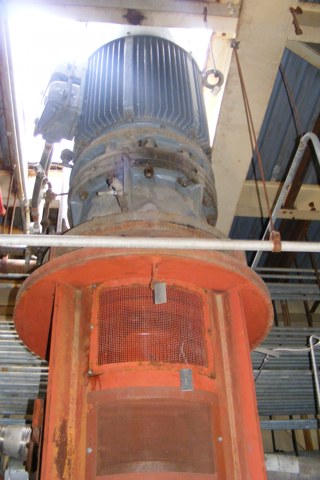

Jacket thickness: 16mm with a Cyclo drive gear reducer, Model VM40-62, ratio 29 to 1, input 1200 - 300 RPM, 26 - 14 KW. Direct coupled to a 26/14 KW motor, 6/24 phase, 60 hertz, 440 volt. Final output 41/10 rpm.

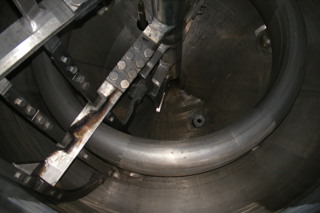

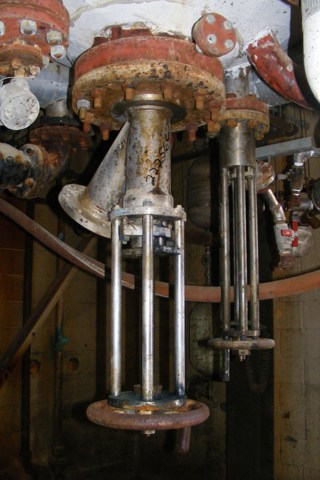

Mechanical seal on shaft, wide sweep gate style agitator designed for viscous applications. Approx. 6" diameter Heating ring in bottom of vessel.

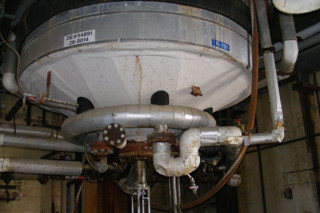

Heating ring: approx. 6" diameter in bottom of vessel

Internal Temperature: 340 °C (644 °F). Jacket Pressure: 3.6 bar (52.6 psi). Jacket Temperature: 340 °C (644 °F). Agitation: Yes. Support Type: Lugs.

Hastelloy - Other Clad Hitachi Batch-Type Agitated Reactor - IPP# 203332
