Overview
Reactor
Batch-Type Agitated
Hitachi
Used
Stainless Steel 316
5,678 L (1,500 gallons)
Pressure Vessel
7.8 bar (113.8 psi)
340 °C (644 °F)
Jacket/Internal Coil
3.6 bar (52.6 psi)
340 °C (644 °F)
Agitation System
Yes
Other Specifications
Yes
Lugs
Inlets & Outlets
Openings include" 22" x 18" manway, (1) 6", (1) 3" (1) 2.5" (1) 4", (1) 14", plus center drive opening; bottom, (1) 2" with plug valve, (1) 8" center with 4" plug valve.
  • Intended use: high temperature reactor for adhesives and viscous materials
  • Head thickness: 18mm

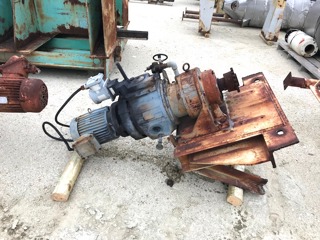

  • Jacket thickness: 16mm with a Cyclo drive gear reducer, Model VM40-62, ratio 29 to 1, input 1200 - 300 RPM, 26 - 14 KW. Direct coupled to a 26/14 KW motor, 6/24 phase, 60 hertz, 440 volt. Final output 41/10 rpm.
    Mechanical seal on shaft, wide sweep gate style agitator designed for viscous applications. Approx. 6" diameter Heating ring in bottom of vessel.
  • Heating ring: approx. 6" diameter in bottom of vessel

Similar Equipment

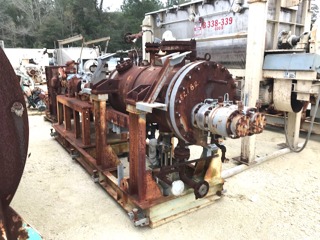

Hastelloy - Other Clad Hitachi Batch-Type Agitated Reactor
